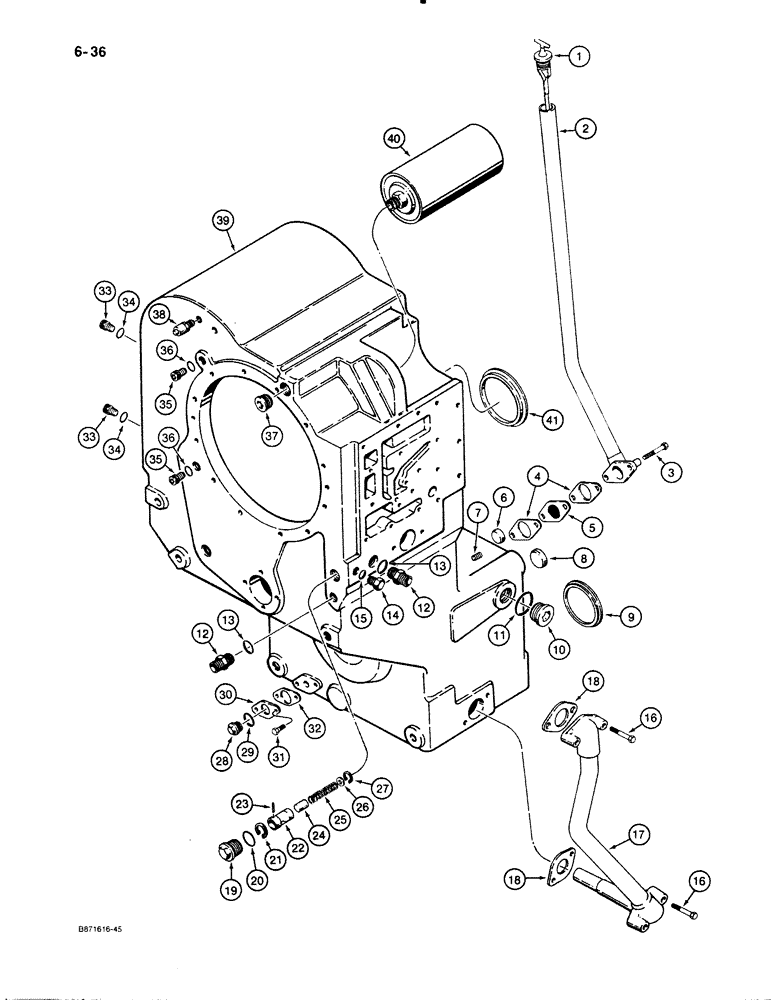

Запчасти Case W30 (6-36) - ZF TRANSMISSION, HOUSING (06) - POWER TRAIN

L116979

TRANSMISSION

ASSEMBLY - ZF No. 4644-004-095, see Figures 6-36 through 6-60

1шт.

LR116979

REMAN-TRANSMISSION

ZF

1шт.

LC116979

CORE-TRANSMISSION

return number

1шт.

1

N14705

DIPSTICK

- transmission

1шт.

2

N14706

TUBE,718, 139 mm L

- dipstick

1шт.

3

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

4

E135228

GASKET

- dipstick tube

2шт.

5

E135229

FILTER SCREEN

SCREEN - filtering, dipstick tube

1шт.

6

E135010

PLUG

- 22 mm, expansion

1шт.

7

E135030

PLUG

SCREW - 8 mm x 8, set, hex socket head

1шт.

8

E135011

PLUG

- 30 mm, expansion

1шт.

9

E135169

PLUG

- 80 mm, expansion

2шт.

10

E135077

PLUG,Hex, M36 x 1.5

- 36 mm x 1.5, pipe, hex socket head

1шт.

11

E135033

O-RING,2.2mm Thk x 33mm ID

SEAL - x 2, O-ring 33 mm ID

1шт.

12

N14714

CONNECTION

ADAPTER - 26 mm x 1.5 to 1-5/16 - 2, hydraulic

2шт.

13

E135041

O-RING

SEAL - square section, 26 mm ID x 31 mm OD x 2 mm

2шт.

14

E135079

PLUG

- hex head, 14 mm x 1.5

1шт.

15

E135037

O-RING

SEAL - 14 mm ID x 18 mm OD x 1.5

1шт.

16

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

17

E135235

HYD TUBE,480, 161 mm L

TUBE - suction

1шт.

18

E135282

GASKET

- suction tube

2шт.

19

E135082

PLUG

- hex head, 30 mm x 1.5

1шт.

20

A48884

O-RING,30 mm ID x 36 mm OD

SEAL - plug, 30 mm ID x 36 mm 0D x 2

1шт.

21

A37550

SNAP RING,1.00", Int, #100

- internal, 28 mm x 1.2

1шт.

22

E135200

SPACER

SLEEVE - valve, converter pressure

1шт.

23

E135126

DOWEL,4mm OD x 27.5mm L

PIN - dowel, 4 mm x 27.5

1шт.

24

E135166

VALVE POPPET

PISTON - converter pressure valve

1шт.

25

E135134

SPRING

- converter pressure valve

1шт.

26

E135092

WASHER

- spring stop, 10 mm ID x 19.9 OD x 2.5

1шт.

27

E135020

CIRCLIP

SNAP RING - internal, 20 mm x 1.5

1шт.

28

E135080

PLUG

- hex head, 22 mm x 1.5

1шт.

29

E135040

SEALING WASHER,M22 x 27 x 1.5

SEAL - plug, 22 mm ID x 27 mm OD x 1.5

1шт.

30

E135247

PLATE

- cover

1шт.

31

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex head, 8 mm - 1.25 x 16 mm (8.8), plated

2шт.

32

E135228

GASKET

- plate

1шт.

33

E135076

PLUG

- hex socket head, 18 mm x 1.5

2шт.

34

E135039

O-RING,18 mm ID x 22 mm OD

SEAL - plug, 18 mm ID x 22 mm OD x 1.5

2шт.

35

E135075

PLUG

- hex socket head, 14 mm x 1.5

2шт.

36

E135037

O-RING

SEAL - plug, 14 mm ID x 18 mm OD x 1.5

2шт.

37

A48885

PLUG

- hex socket head, 30 mm x 1.5

1шт.

38

N14704

BREATHER

- transmission

1шт.

39

E135249

HOUSING

- transmission

1шт.

40

S300650

FILTER

- transmission, was E135159

1шт.

41

E135201

SEAL

- expansion, 106 mm

1шт.
