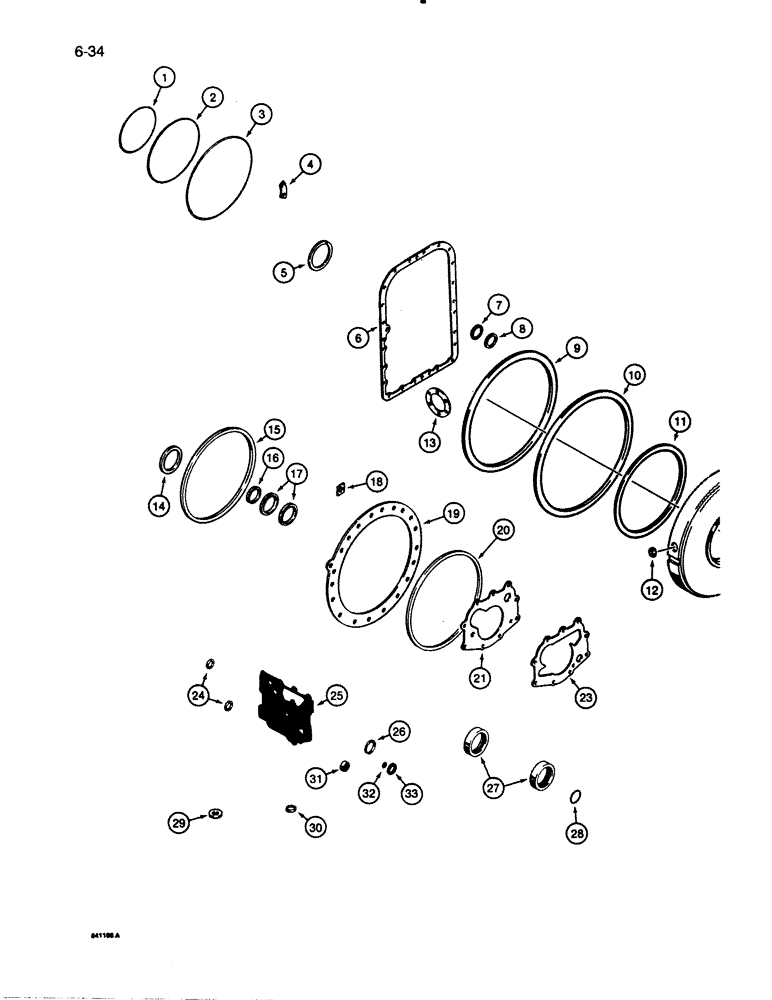

Запчасти Case W30 (6-34) - ALLISON TRANSMISSION, TRANSMISSION OVERHAUL KIT (06) - POWER TRAIN

N9424

PACKAGE

KIT - transmission overhaul

1шт.

1

L33968

SEALING RING,170.26mm ID x 179.2mm OD x 3.3mm Thk

- small, reverse piston, inner, 6-3/4" lip diameter

1шт.

2

N9327

SEALING RING

SEAL - medium, reverse piston, 10-3/8" lip diameter

1шт.

3

N9328

SEALING RING

SEAL - large, reverse piston, center, 13-1/2" lip diameter

1шт.

4

D47436

PLATE, LOCKING

PLATE - clutch locking

6шт.

5

D47441

SEAL

- converter housing sleeve

1шт.

6

D48358

GASKET

- transmission housing

1шт.

7

D47445

SEAL

ING RING - shaft

1шт.

8

N9320

SEALING RING

SEALING RING - shaft

1шт.

9

N9402

LARGE PLATE

SEAL - medium, forward piston, 12" lip diameter

1шт.

10

N9328

SEALING RING

SEAL - large, forward piston, center, 13-1/2" lip diameter

1шт.

11

N9403

LARGE PLATE

SEAL - small, forward piston, inner, 9-1/2" lip diameter

1шт.

12

N9405

OIL SEAL

INSERT - low clutch housing

1шт.

13

D77594

GASKET,1.78mm Thk

- strainer and cover

2шт.

14

L31017

RING

SEAL - high range clutch piston

1шт.

15

N7024

SEALING RING

LIP SEAL - high range clutch piston, used in L 114707 transmission

1шт.

16

E33776

RING

SEALING RING - high range clutch piston housing, used in L 114707 transmission

1шт.

17

N8478

SEALING RING

SEALING RING - high range clutch housing, used in L 114679 transmission

2шт.

18

D47476

LOCK

TAB - locking, high range clutch piston

6шт.

19

N7021

GASKET

- rear cover

1шт.

20

N9008

SEALING RING

ING RING - cover

1шт.

21

L31081

GASKET

-, Serial Range: pump-housing

1шт.

22

RESERVED

1шт.

23

P0031037L

BALL

- pump, Serial Range: housing-cover

1шт.

24

L31016

GASKET

SEAL - regulator valve and valve plug

2шт.

25

L31187

GASKET

- control, Serial Range: valve-housing

1шт.

26

L31043

GASKET

SEAL - trimmer valve plug

1шт.

27

N8349

SEAL,65.2mm ID x 92.2mm OD x 12.32mm Thk

OIL SEAL - clutch disconnect

2шт.

28

D71437

O-RING,1.475" ID x 1.895" OD

SEAL - axle output flange

1шт.

29

D72772

SEALING WASHER

- control valve body

1шт.

30

L31034

WASHER

SEAL - trimmer valve plug

1шт.

31

D72773

SEAL,19.05mm ID x 35.08mm OD x 7.26mm Thk

OIL SEAL - control valve spool

1шт.

32

A12666

O-RING,0.359" ID x 0.73"

SEAL - clutch cutoff valve

1шт.

33

L31034

WASHER

SEAL - control valve plug

1шт.
