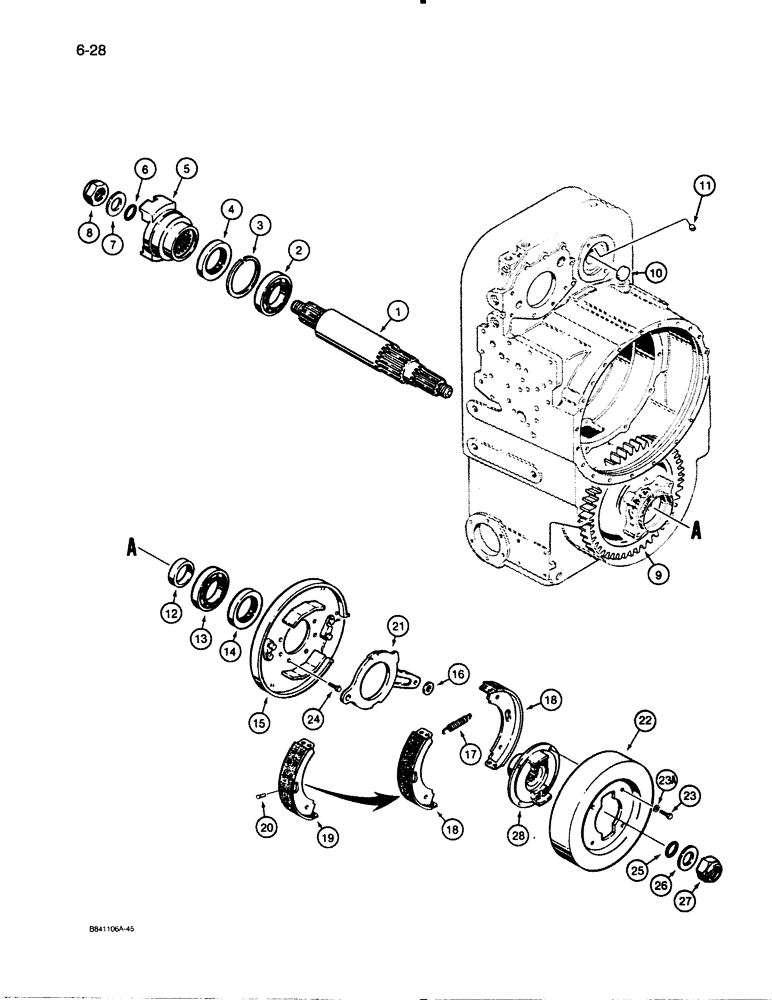

Запчасти Case W30 (6-28) - ALLISON TRANSMISSION, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units without auxiliary steering

1шт.

1

L36058

SHAFT

- output, axle drive

1шт.

2

N6400

BEARING ASSY,1.9685" ID x 3.5433" OD x 0.7874"

BALL BEARING - output shaft

1шт.

3

D47486

SNAP RING

SNAP RING - internal type

1шт.

4

N8349

SEAL,65.2mm ID x 92.2mm OD x 12.32mm Thk

OIL SEAL - flange

1шт.

5

N9428

FLANGE

- transmission to rear axle drive shaft

1шт.

6

D71437

O-RING,1.475" ID x 1.895" OD

- flange

1шт.

7

D47424

WASHER

- flange retaining

1шт.

8

L31165

NUT

- flange washer retaining

1шт.

9

N9423

GEAR

- transfer

1шт.

10

L33620

PLUG

- housing

1шт.

11

L33981

PLUG

EXPANSION PLUG - housing

1шт.

12

D51506

BUSHING

SPACER - bearing

1шт.

13

N8409

BEARING ASSY

BALL BEARING - output shaft

1шт.

14

N8349

SEAL,65.2mm ID x 92.2mm OD x 12.32mm Thk

OIL SEAL - shaft

1шт.

L35914

BRAKE ASSY.

BRAKE ASSEMBLY - parking

1шт.

15

L33622

PLATE

- backing

1шт.

16

L33579

ROLLER

- brake

1шт.

17

N8445

SPRING

- brake shoe return

2шт.

18

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

D47501

LINING

KIT - parking brake lining

1шт.

19

NSS

NOT SOLD SEPARAT

LINING - brake

2шт.

20

L33939

RIVET

- brake lining

24шт.

21

D47526

LEVER

- brake shoe

1шт.

22

D47527

DRUM

- brake

1шт.

23

121-244

BOLT,Hex, Lock, 3/8"-24 x 7/8"

- hex head, 3/8" - 24 NF x 7/8"

6шт.

23a

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", hardened, plated

6шт.

24

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

BOLT - hex head, 1/2" - 13 NC x 7/8"

4шт.

25

D71437

O-RING,1.475" ID x 1.895" OD

- flange

1шт.

26

D47424

WASHER

- flange retaining

1шт.

27

L31165

NUT

- flange washer retaining

1шт.

28

N9311

FLANGE

- transmission to front drive shaft

1шт.
