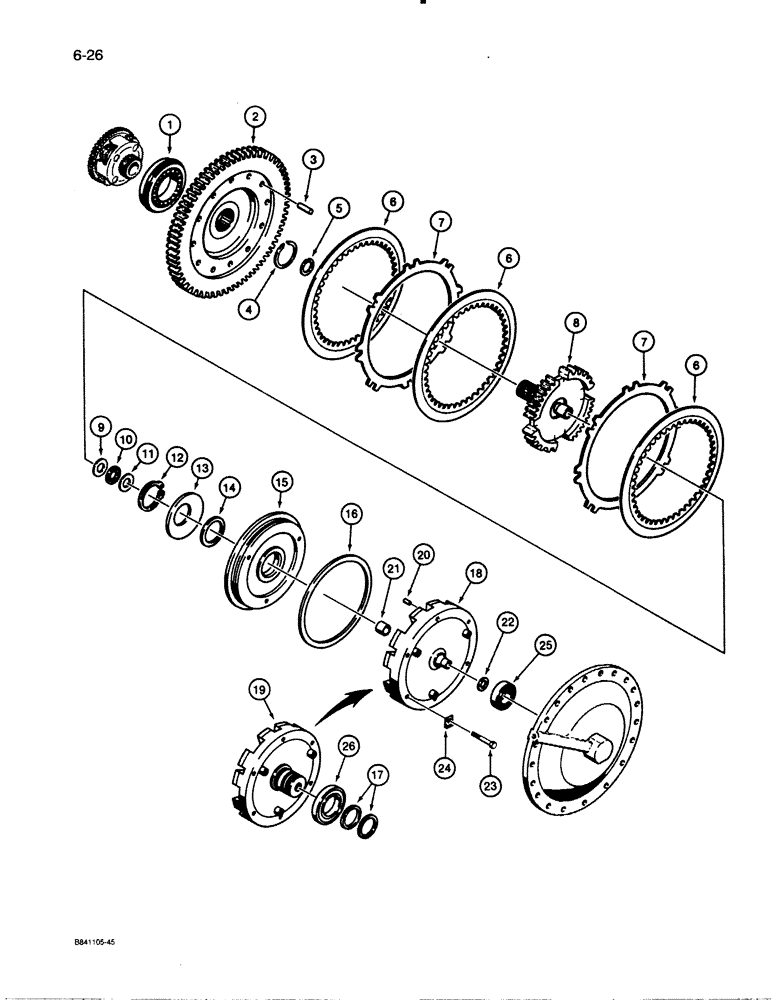

Запчасти Case W30 (6-26) - ALLISON TRANSMISSION, HIGH RANGE CLUTCH AND TRANSFER GEAR (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units without auxiliary steering

1шт.

1

N9407

BEARING ASSY

BALL BEARING - gear

1шт.

N9408

GEAR

ASSEMBLY - transfer drive

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - transfer drive

1шт.

3

L31036

PIN

- clutch plate drive

6шт.

4

A12665

RING, SNAP

SNAP RING - gear retaining

1шт.

5

N9409

INSERT

SNAP RING - hub retaining

1шт.

6

N7022

PLATE

- clutch, internal splined

3шт.

7

L33958

PLATE

- clutch, external splined

2шт.

8

N9410

HUB

- high range clutch

1шт.

9

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

RACE - thrust bearing

1шт.

10

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

BEARING, THRUST - Hub

1шт.

11

T38017

WASHER,25.45mm ID x 39.42mm OD x 2.41mm Thk

RACE - thrust bearing

1шт.

12

L31021

RING

SNAP RING - external type

1шт.

13

L31020

SPRING

BELLEVILLE WASHER - piston return

1шт.

14

L31017

RING

SEAL - high clutch piston

1шт.

15

N9420

PISTON

- high range clutch

1шт.

16

N7024

SEALING RING

LIP SEAL - high range clutch piston, used with L114707 transmission

1шт.

17

N8478

SEALING RING

LIP SEAL - high range clutch piston, two piece, used with L114679 transmission

1шт.

N9421

HOUSING ASSY.

HOUSING ASSEMBLY - high range clutch piston, used with L114707 transmission

1шт.

N8480

HOUSING ASSY.

HOUSING ASSEMBLY - high range clutch piston, used with L114679 transmission

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - high range clutch piston, used with L 114707 transmission

1шт.

19

NSS

NOT SOLD SEPARAT

HOUSING - high range clutch piston, used with L 114679 transmission

1шт.

20

49882

PIN

- housing

3шт.

21

L32411

BUSHING

- housing

1шт.

22

E33776

RING

- seal, used with L 114707 transmission

1шт.

23

114-414

BOLT,Hex, 1/2" - 20 x 2-3/4", Gr 5

Hex, 1/2"-20 x 2 3/4", G5

6шт.

24

D47476

LOCK

TAB - locking, high range clutch piston

6шт.

25

D47572

BEARING

BALL BEARING - housing shaft, used with L114707 transmission

1шт.

26

L31010

BEARING

BALL BEARING - housing shaft, used with L114679 transmission

1шт.
