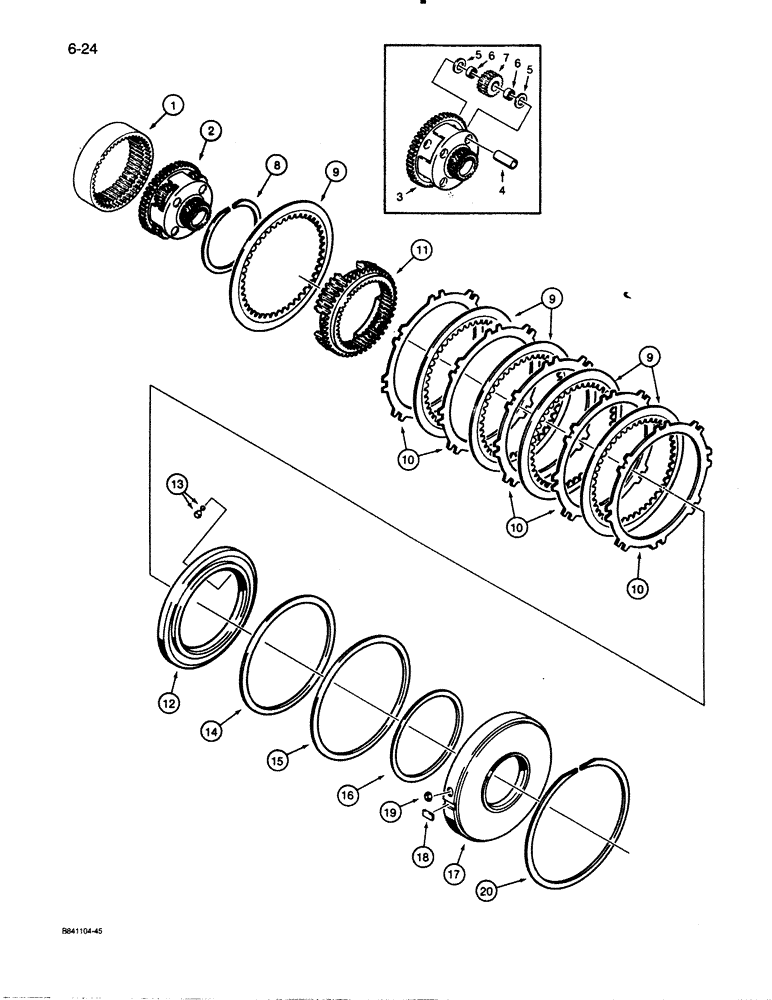

Запчасти Case W30 (6-24) - ALLISON TRANSMISSION, LOW CLUTCH AND PLANETARY (06) - POWER TRAIN

L114679

TRANSMISSION

- complete, Allison No. 23040191, used on units with auxiliary steering

1шт.

L114707

TRANSMISSION

- complete, Allison No. 23019975, used on units without auxiliary steering

1шт.

1

N9398

GEAR

RING GEAR - reverse clutch

1шт.

2

N9396

CARRIER

ASSEMBLY - low clutch planetary

1шт.

3

NSS

NOT SOLD SEPARAT

CARRIER - low clutch planetary

1шт.

4

N9392

PIN

SPINDLE - pinion

4шт.

5

N9390

WASHER

THRUST WASHER - pinion set

8шт.

6

A58069

NEEDLE BEARING,25.39mm ID x 33.37mm OD x 19.05mm W

- pinion

8шт.

7

N9397

SET OF PINIONS

PINION SET - planetary, matched set of 4

1шт.

8

N9399

RING

SNAP RING - retaining

1шт.

9

N7313

PLATE

- clutch, internal spline

5шт.

10

N9335

PLATE

- clutch, external spline

5шт.

11

N9400

GEAR

RING GEAR - low clutch

1шт.

N9401

PISTON ASSY.

PISTON ASSEMBLY - low clutch

1шт.

12

NSS

NOT SOLD SEPARAT

PISTON - low clutch

1шт.

13

N8408

KIT

- ball and retainer

1шт.

14

N9402

LARGE PLATE

SEAL - medium, 12" lip diameter

1шт.

15

N9328

SEALING RING

SEAL - large, 13-1/2" lip diameter

1шт.

16

N9403

LARGE PLATE

SEAL - small, 9-1/2" lip diameter

1шт.

17

N9404

HOUSING

- low clutch piston

1шт.

18

N9406

KEY

- housing

1шт.

19

N9405

OIL SEAL

INSERT - housing

1шт.

20

L31843

RING, SNAP

SNAP RING - housing

1шт.
