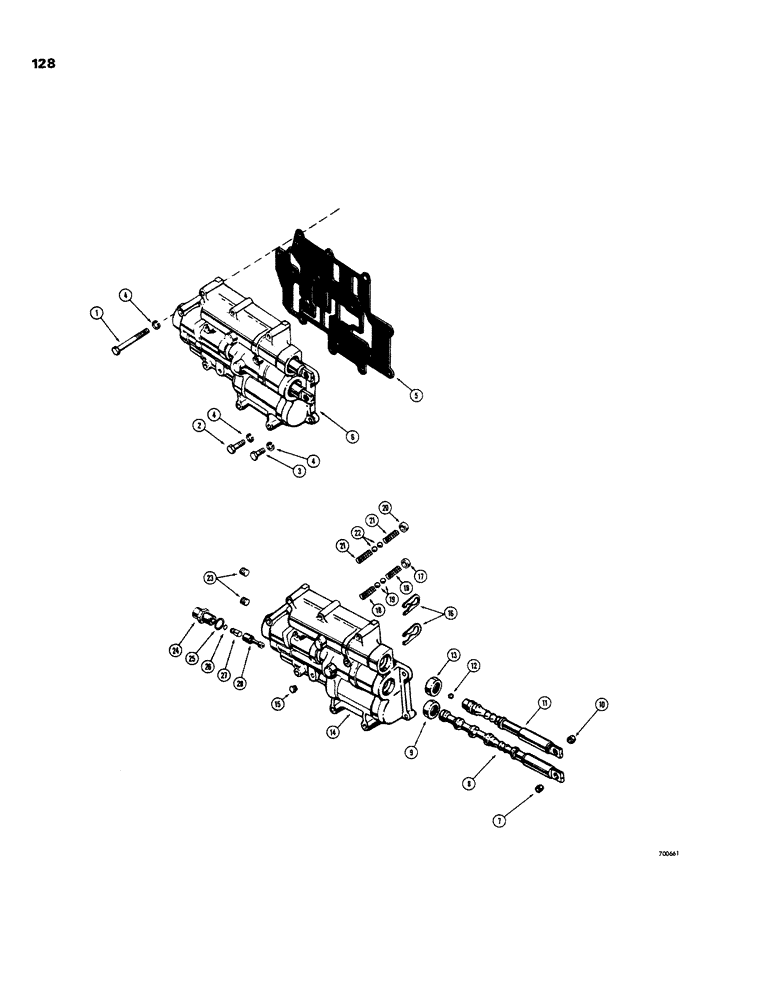

Запчасти Case W26B (128) - TRANSMISSION, L32813 TRANSMISSION CONTROL VALVE (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9916327), Includes: Ref. 1 - 28

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822, Includes: Ref. 1 - 28

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete. tractor Sn. 9123822 and after, Includes: Ref. 1 - 28

1шт.

1

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS - 3/8" - 16 NC x 3-1/2"

3шт.

2

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC X 2-1/2"

6шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

11шт.

5

A16987

GASKET

- valve body to transmission housing

1шт.

6

L32813

VALVE

ASSEMBLY - transmission control, Includes: Ref. 7 - 28

1шт.

A16994

VALVE

SPOOL ASSEMBLY - forward and reverse, Includes: Ref. 7 and 8

1шт.

7

A13517

BUSHING - spool

1шт.

8

NSS

NOT SOLD SEPARAT

SPOOL - forward and reverse

1шт.

9

A12660

SEAL

- oil, forward and reverse spool

1шт.

A16693

SPOOL ASSEMBLY - range selector, Includes: Ref. 10 - 12

1шт.

10

A13517

BUSHING - spool

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL- range selector

1шт.

12

211-26

BALL,15/32" Dia

- 5/32" dia.

1шт.

13

A12660

SEAL

- oil, forward and reverse spool

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - transmission control valve

1шт.

15

221-661

PLUG,Hex Hd, 1/8"-27

- pipe, hex. head (1/8" NPT)

1шт.

16

A16992

STOP - valve spool

2шт.

17

A16991

RETAINER

- detent spring

1шт.

18

L30313

VALVE SPRING

SPRING - forward and reverse detent

2шт.

19

211-15

BALL,5/8" Dia

- detent, . 5/8" Dia

2шт.

20

A16991

RETAINER

- detent spring

1шт.

21

L30312

VALVE SPRING

SPRING - range selector detent

2шт.

22

211-15

BALL,5/8" Dia

- detent, . 5/8" Dia

2шт.

23

221-33

OILER FABRIC,Sq Soc, 3/8"-18 NPTF

PLUG - pipe, square socket head (3/8" NPT)

2шт.

24

L31030

PLUG

RETAINER - clutch cut-off spool

1шт.

25

A12649

GASKET

- retainer

1шт.

26

A12666

O-RING,0.359" ID x 0.73"

SEAL - "O" ring

1шт.

27

L31025

PLUG

- spool, clutch cut-off valve

1шт.

28

A16995

LOCK VALVE

SPOOL - clutch cut-off valve

1шт.
