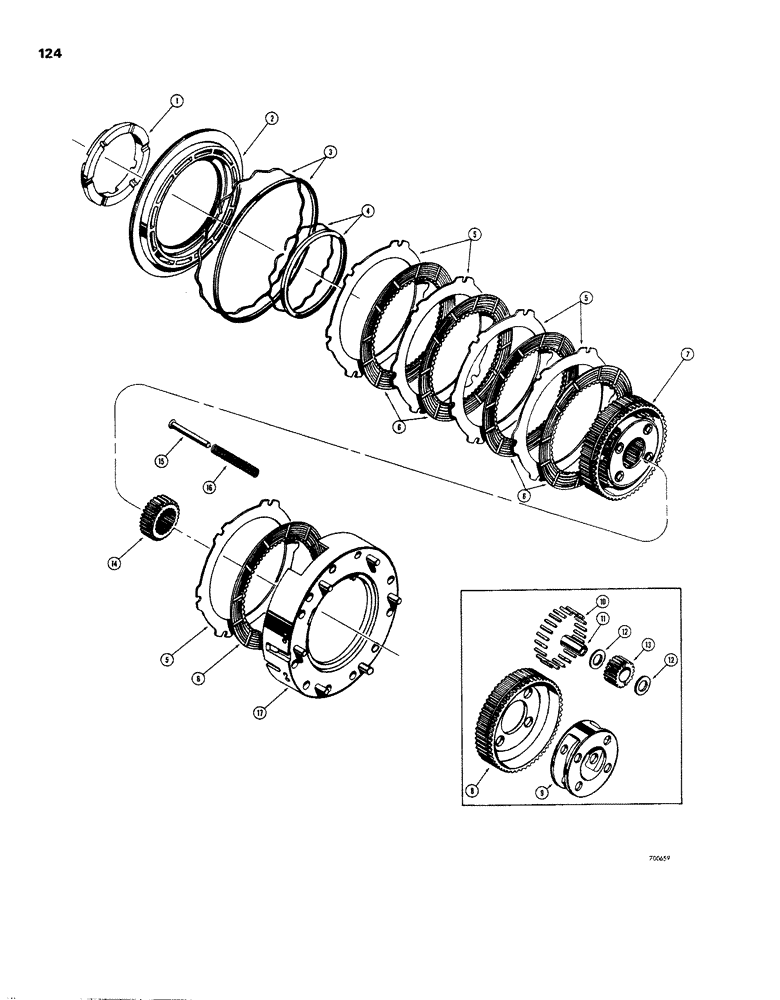

Запчасти Case W26B (124) - TRANSMISSION, REVERSE PLANETARY AND CLUTCH (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9116327), Includes: Ref. 1 - 6

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822), Includes: Ref. 1 - 6

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete. tractor Sn. 9123822 and after, Includes: Ref. 1 - 6

1шт.

1

A12832

SPACER - reverse clutch piston

1шт.

2

L30353

PISTON - clutch, reverse

1шт.

3

A40021

KIT

SEAL AND EXPANDER KIT - clutch piston, outer

1шт.

4

A40023

SEAL

AND EXPANDER KIT - clutch piston inner

1шт.

5

L34015

PLATE

- reverse clutch, external spline (When stock is exhausted, replace all five plates with (5) L33958 plates

5шт.

5

L33958

PLATE

- reverse clutch, external spline

5шт.

6

A12831

FACING, CLUTCH

PLATE - reverse clutch, internal spline

5шт.

7

A12836

CARRIER

ASSEMBLY - reverse planetary (Before transmission Sn. 66614) When stock is exhausted order L33926 carrier for service, Includes: Ref. 8 - 13

1шт.

REF#7A L35637 IS NOT ASSY ORDER COMPLETE ASSY L35636

1шт.

7

L33926

CARRIER

ASSEMBLY - reverse planetary (Before transmission Sn. 66614) When stock is exhausted, order L35636 carrier for service, Includes: Ref. 8 - 13

1шт.

7

L35636

CARRIER

ASSEMBLY - reverse planetary (Transmission Sn. 66614 and after as production item, prior to Sn. 66614 as service replacement), Includes: Ref. 8 - 13

1шт.

L35637

CARRIER

HUB AND CARRIER ASSY. - reverse planetary (One piece) Will service any of the above carrier assemblies, Includes: Ref. 8 - 13

1шт.

8

L33927

HUB

1шт.

HUB - reverse planetary (Will not work on transmissions L33926 carrier assemblies which featured separate hub and carrier parts) Will not work on transmissions with Sn. 66614 and after (When stock is exhausted, order L35637 assembly for service)

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER - reverse planetary (Order L35637 assembly for service)

1шт.

10

A12659

NEEDLE

ROLLER - planetary pinion

88шт.

11

A12705

SPINDLE

PIN - planetary spindle

4шт.

12

A12700

WASHER

- thrust, pinion

8шт.

13

A16369

PINION

- reverse planetary (Matched set of 4) When stock is exhausted, order L35993 pinion for service

1шт.

13

L35993

GEAR

PINION - reverse planetary (Matched set of 4)

1шт.

14

L32796

GEAR - forward, sun

1шт.

15

A12837

PIN - spring guide

12шт.

16

A55806

SPRING

- return, forward and reverse clutch piston

12шт.

17

A13214

ANCHOR

- forward and reverse shifting parts

1шт.
