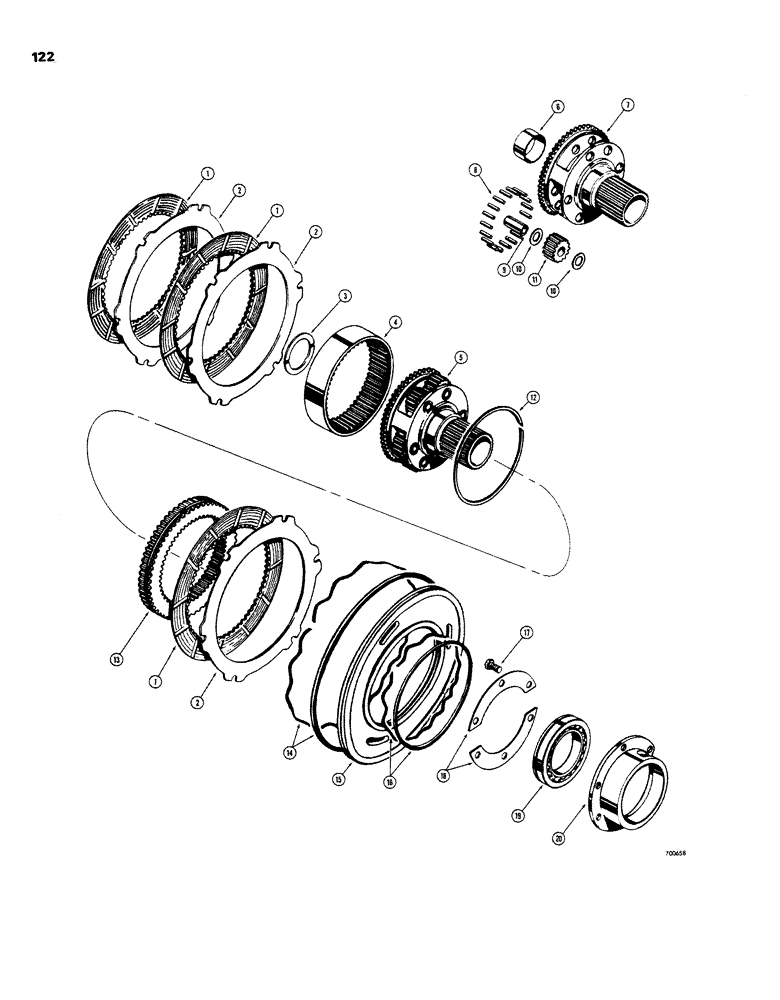

Запчасти Case W26B (122) - TRANSMISSION, FORWARD PLANETARY AND CLUTCH (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9116327), Includes: Ref. 1 - 20

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822), Includes: Ref. 1 - 20

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete. tractor Sn. 9123822 and after, Includes: Ref. 1 - 20

1шт.

1

A12831

FACING, CLUTCH

PLATE - clutch, forward (Internal spline)

3шт.

2

L34015

PLATE

- clutch, forward (External spline) When stock is exhausted, replace all three plates with (3) L33958 plates

3шт.

2

L33958

PLATE

- clutch, forward (External spline)

3шт.

3

A12732

WASHER

- thrust

1шт.

4

A12712

GEAR

- reverse, ring type

1шт.

5

L32797

CARRIER ASSEMBLY - forward planetary, Includes: Ref. 6 - 11

1шт.

6

A12728

BUSHING

- carrier

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - forward planetary (Use L32797)

1шт.

8

A12682

NEEDLE

ROLLER - planetary pinion

120шт.

9

A12680

PIN

- planetary spindle

6шт.

10

A12681

WASHER

- thrust, pinion

12шт.

11

A16368

GEAR-SET

PINION - forward planetary (Matched set of 6)

1шт.

12

A12687

RING

SNAP RING - internal type

1шт.

13

L30401

GEAR

- forward, ring type (When stock is exhausted, order L33924 gear for service)

1шт.

13

L33924

GEAR

- forward, ring type

1шт.

14

A40021

KIT

SEAL AND EXPANDER KIT - forward clutch piston, outer

1шт.

15

L30353

PISTON - forward clutch

1шт.

16

A40023

SEAL

AND EXPANDER KIT - forward clutch piston, inner

1шт.

17

121-206

BOLT,Hex, Lock, 3/8"-16 x 7/8"

- self locking (3/8" - 16 NC x 7/8")

4шт.

18

A12708

RETAINER - bearing

2шт.

19

A12657

BALL BEARING

BEARING - ball type, single row

1шт.

20

A12703

HUB - oil transfer

1шт.
