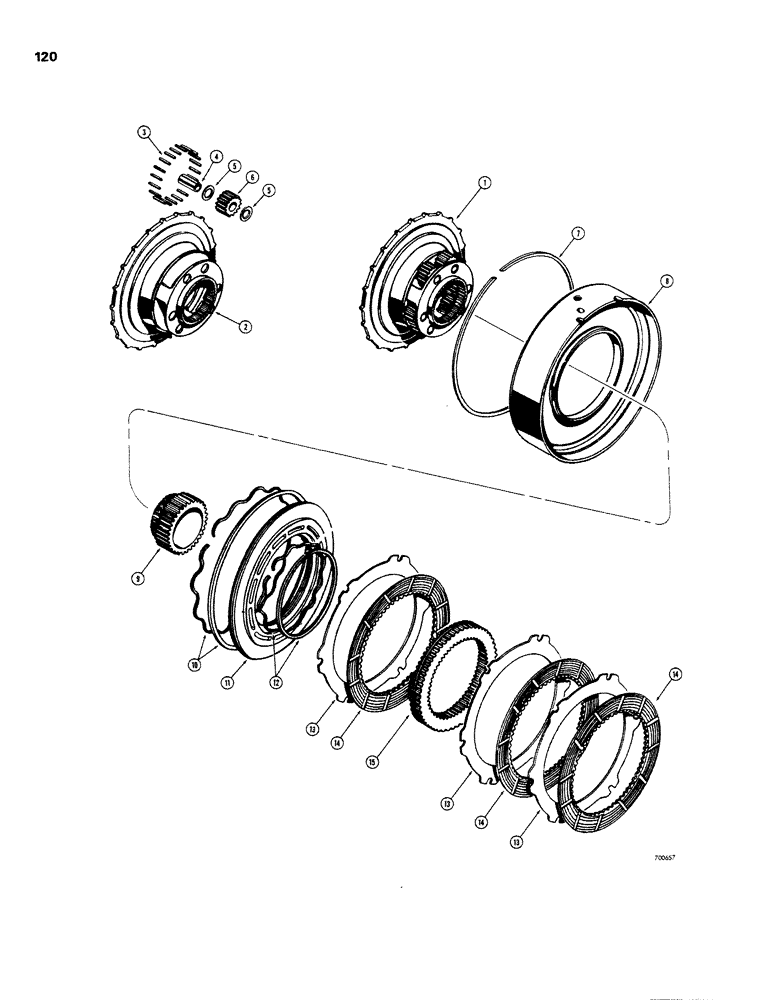

Запчасти Case W26B (120) - TRANSMISSION, HIGH RANGE PLANETARY AND CLUTCH (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9116327), Includes: Ref. 1 - 15

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822), Includes: Ref. 1 - 15

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete. tractor Sn. 9123822 and after, Includes: Ref. 1 - 15

1шт.

1

A12811

CARRIER

ASSEMBLY - high range clutch, Includes: Ref. 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

CARRIER - high range clutch (Use A12811)

1шт.

3

A12682

NEEDLE

ROLLER - planetary pinion

120шт.

4

A12680

PIN

- planetary pinion

6шт.

5

A12681

WASHER

- thrust, pinion

12шт.

6

A16368

GEAR-SET

PINION - planetary carrier (Matched set of 6)

1шт.

7

L30310

RING, SNAP

SNAP RING - internal type

1шт.

8

A12793

HOUSING - high range clutch piston

1шт.

9

L32801

GEAR - low range, sun

1шт.

10

A40021

KIT

SEAL AND EXPANDER KIT - high range clutch piston, outer

1шт.

11

L30354

PISTON ASSY.

PISTON - high range clutch

1шт.

12

A40023

SEAL

AND EXPANDER KIT - high range clutch piston, inner

1шт.

13

L34015

PLATE

- high range clutch (External spline) When stock is exhausted, replace all three plates with (3) L33958 plates

3шт.

13

L33958

PLATE

- high range clutch (External spline)

3шт.

14

A12831

FACING, CLUTCH

PLATE - high range clutch (Internal spline)

3шт.

15

L30401

GEAR

- high range clutch planetar, ring type (When stock is exhausted, order L33924 gear for service)

1шт.

15

L33924

GEAR

- high range clutch planetary, ring type

1шт.
