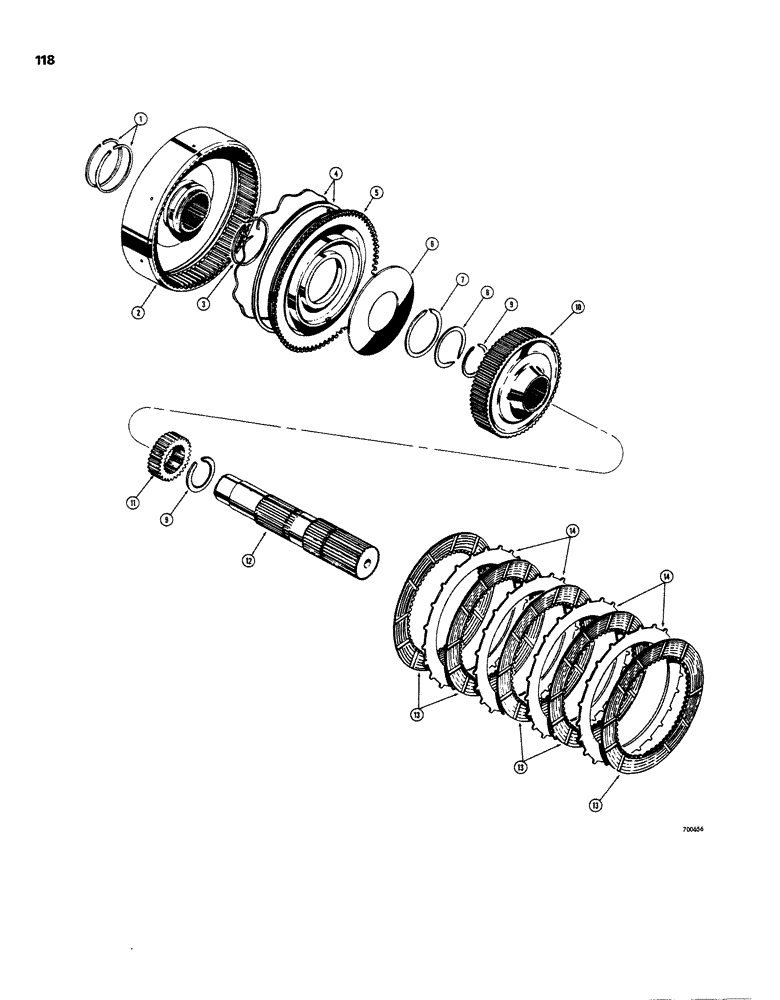

Запчасти Case W26B (118) - TRANSMISSION, INTERMEDIATE RANGE CLUTCH AND MAIN SHAFT (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9116327), Includes: Ref. 1 - 14

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822), Includes: Ref. 1 - 14

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete. tractor Sn. 9123822 and after, Includes: Ref. 1 - 14

1шт.

1

A12730

RING

SEAL - ring, hook type

2шт.

2

A12719

DRUM

- intermediate clutch

1шт.

3

A12730

RING

SEAL - ring, hook type (Clutch piston)

1шт.

4

A40022

SEAL AND EXPANDER KIT - clutch piston

1шт.

5

L32799

PISTON - intermediate clutch

1шт.

6

A12801

SPRING

- piston return, disc. type

1шт.

7

A12665

RING, SNAP

SNAP RING - external type (Large)

1шт.

8

A12663

RING

SNAP RING - external type (Intermediate)

1шт.

9

A12677

RING, SNAP

SNAP RING - external type (Small)

2шт.

10

L30308

HUB CAP

HUB - intermediate clutch

1шт.

11

A12679

GEAR

- high range, sun

1шт.

12

L32800

SHAFT

- main, transmission

1шт.

13

A12831

FACING, CLUTCH

PLATE - intermediate range clutch (Internal spline)

5шт.

14

A12807

PLATE

- intermediate range clutch (External spline) When stock is exhausted, order L33922 plate for service)

4шт.

14

L33922

PLATE ASSY.

PLATE - intermediate range clutch (External spline)

4шт.
