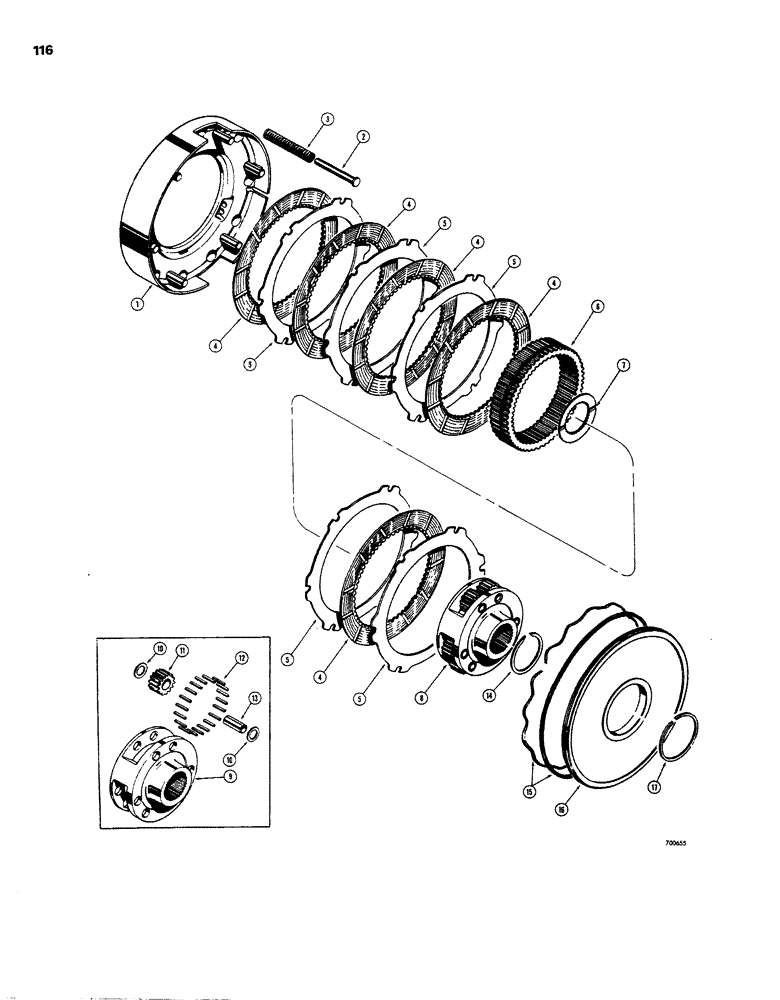

Запчасти Case W26B (116) - TRANSMISSION, LOW RANGE PLANETARY AND CLUTCH (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9116327), Includes: Ref. 1 - 17

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822), Includes: Ref. 1 - 17

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete. Tractor Sn. 9123822 and after, Includes: Ref. 1 - 17

1шт.

1

A13214

ANCHOR

- high and low range shifting parts

1шт.

2

A12837

PIN - spring guide

12шт.

3

A55806

SPRING

- return, high and low clutch

12шт.

4

A12831

FACING, CLUTCH

PLATE - high and low clutch, internal spline

5шт.

5

L34015

PLATE

- high and low clutch, external spline (When stock is exhausted, replace all five plates with (5) L39958 plates)

5шт.

5

L33958

PLATE

- high and low clutch, external spline

5шт.

6

L32802

RING

GEAR - low range planetary, ring type (When stock is exhausted, order L33925 gear for service)

1шт.

6

L33925

RING

GEAR - low range planetary, ring type

1шт.

7

32803

WASHER - thrust

1шт.

8

L32804

CARRIER ASSEMBLY - low range planetary, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

CARRIER - low range planetary (Use L32804)

1шт.

10

L32805

WASHER

- thrust, pinion

12шт.

11

L32806

PINION

- low range planetary (Matched set of 6)

1шт.

12

A12659

NEEDLE

ROLLER - planetary pinion

126шт.

13

L32807

AXLE PIN

PIN - planetary pinion

6шт.

14

A12663

RING

SNAP RING - external type (Carrier retainer)

1шт.

15

A40021

KIT

SEAL AND EXPANDER KIT - low range clutch piston

1шт.

16

A12798

PISTON - low range clutch

1шт.

17

A12730

RING

SEAL RING - hook type

1шт.
