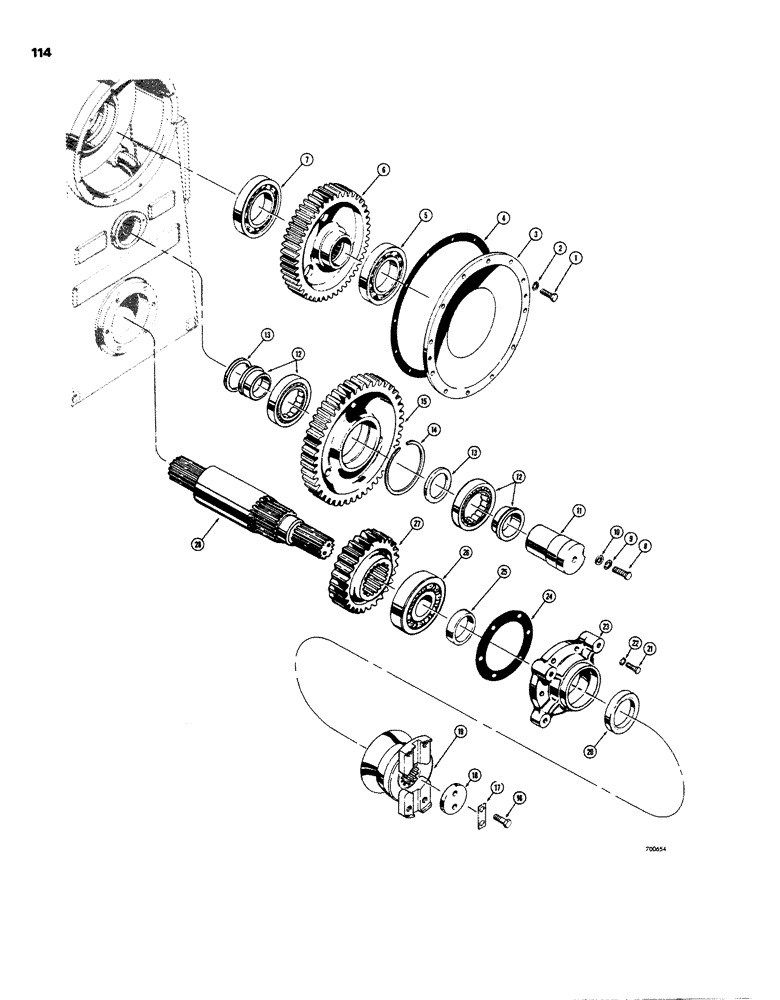

Запчасти Case W26B (114) - TRANSMISSION, TRANSFER GEARS AND OUTPUT SHAFT (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9116327), Includes: Ref. 1 - 28

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822), Includes: Ref. 1 - 28

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete, tractor Sn. 9123822 and after, Includes: Ref. 1 - 28

1шт.

1

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

12шт.

2

92-6

LOCK WASHER,3/8"

12шт.

3

A12722

COVER - transfer drive gear

1шт.

4

A12723

GASKET

- cover

1шт.

5

A12655

BEARING

- ball type, single row

1шт.

6

L32810

GEAR - drive, transfer (Output shaft) L40100 and L55659 transmissions

1шт.

6

D72859

GEAR - drive, transfer (Output shaft) L73758 transmission

1шт.

7

A12655

BEARING

- ball type, single row

1шт.

8

13-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

HHCS - 7/16" - 14 NC x 7/8"

1шт.

9

92-7

LOCK WASHER,7/16"

1шт.

10

A12810

WASHER - spindle retaining

1шт.

11

L30350

SPINDLE - output idler gear

1шт.

12

L30352

BEARING

- roller type, output idler gear

2шт.

13

L30351

SPACER - idler gear bearing

2шт.

14

A12668

RING, SNAP

SNAP RING - internal type, idler gear

1шт.

15

L30349

GEAR - idler, transfer (Output shaft)

1шт.

16

121-213

BOLT,Hex, Lock, 3/8"-24 x 1 1/8"

- self locking, (3/8" - 24 NF x 1-1/8")

4шт.

17

A12736

LOCKING PLATE

- locking, bolt

2шт.

18

A12717

WASHER

- retaining

2шт.

19

L33989

FLANGE

- output shaft, front and rear

2шт.

20

A12675

GASKET

SEAL - oil, lip type

1шт.

21

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

6шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

23

A16977

RETAINER

- bearing

1шт.

24

A16976

GASKET

- bearing retainer to transfer gear housing

1шт.

25

L32812

SPACER - transfer driven gear

1шт.

26

A12656

BALL BEARING,2.3622" ID x 5.1181" OD x 1.2205"

BEARING - ball type, single row

1шт.

27

A12787

GEAR - driven, transfer (Output shaft) L40100 and L55659 transmission

1шт.

27

D72858

GEAR - driven, transfer (Output shaft) L73758 transmission

1шт.

28

L32811

SHAFT - output (Front and rear axle drive)

1шт.
