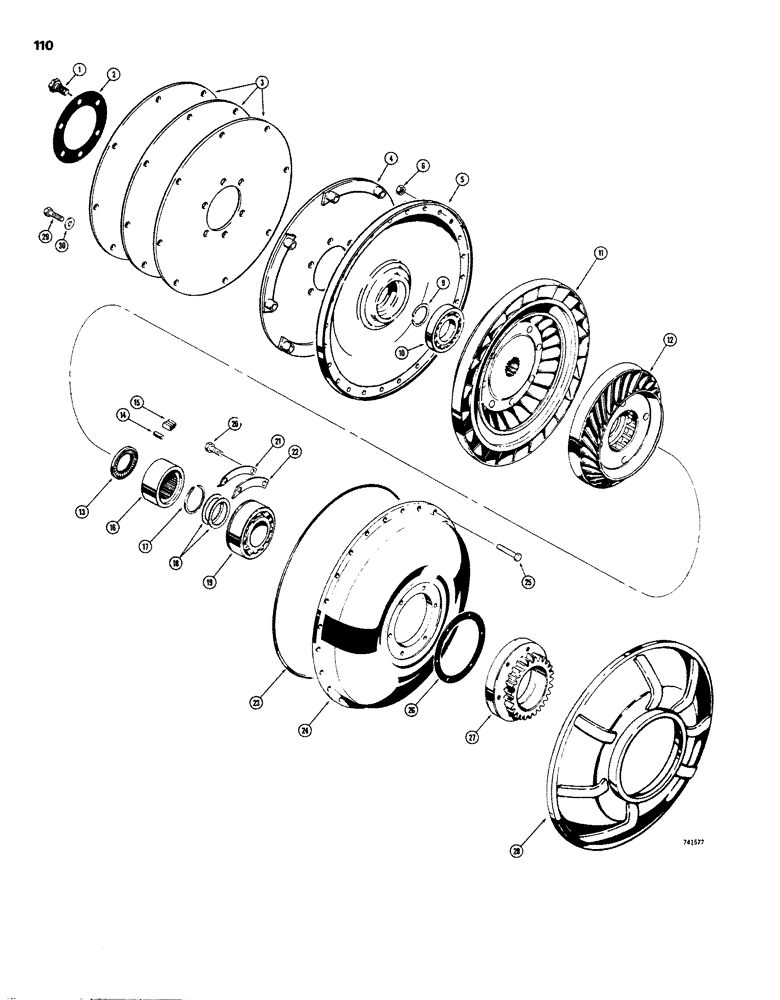

Запчасти Case W26B (110) - TRANSMISSION, TORQUE CONVERTER, TRACTOR SN. 9116327 AND AFTER (06) - POWER TRAIN

L55659

TRANSMISSION

ASSEMBLY - complete, Tractor Sn. 91169327 thru 9123822, Includes: Ref. 1 - 28

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete, tractor Sn. 9123822 and after, Includes: Ref. 1 - 28

1шт.

1

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8" (Grade 8)

6шт.

2

D46334

PLATE

- flex disc retaining

1шт.

3

D46335

DISC

- flex plate drive

3шт.

4

L35093

DISC

AND WASHER - flex plate drive

1шт.

5

D46337

COVER

- converter pump

1шт.

6

131-308

LOCK

NUT - hex, lock (5/16" - 24 NF)

24шт.

9

L32789

RING, SNAP

SNAP RING - external type

1шт.

10

L30286

BEARING

- ball type, single row

1шт.

11

L32790

WHEEL (STEERING)

TURBINE - torque converter

1шт.

L33907

STATOR

ASSEMBLY - torque converter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

STATOR - torque converter

1шт.

13

L30289

BALL BEARING

- needle roller type

1шт.

14

L30290

ROLLER

- free wheel

10шт.

15

L30291

SPRING

- freewheel roller

10шт.

16

L30292

RACE

- freewheel roller

1шт.

17

A12694

RING, SNAP

RING - retaining, external snap type

1шт.

18

L30293

SPACER

- roller race

2шт.

19

L30297

BALL BEARING

- ball type, double row

1шт.

20

121-112

BOLT,Hex, Lock, 5/16"-24 x 1 1/4"

- self locking (5/16" - 24 NF x 1-1/4")

6шт.

21

L30295

LOCKING PLATE

LOCK STRIP - bolt

3шт.

22

L30296

RETAINER

- bearing

3шт.

23

A12674

RING

SEAL - converter, square type

1шт.

L32791

PUMP

ASSEMBLY - converter L55659 Transmission, Includes: Ref. 24 and 25

1шт.

L33940

PUMP

ASSEMBLY - converter. L73758 transmission, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

PUMP BODY - converter

1шт.

25

A12695

BOLT

- special

24шт.

26

D65162

GASKET

-, Serial Range: gear-pump

1шт.

27

L30300

GEAR WHEEL

GEAR - drive, accessory

1шт.

28

L34000

DIAPHRAGM

AND SEAL ASSEMBLY - converter

1шт.

THE SEAL IS PART L35475

1шт.

29

R14979

SCREW

BOLT - hex, special (At engine flywheel) Grade 8

8шт.

30

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- hardened

8шт.
