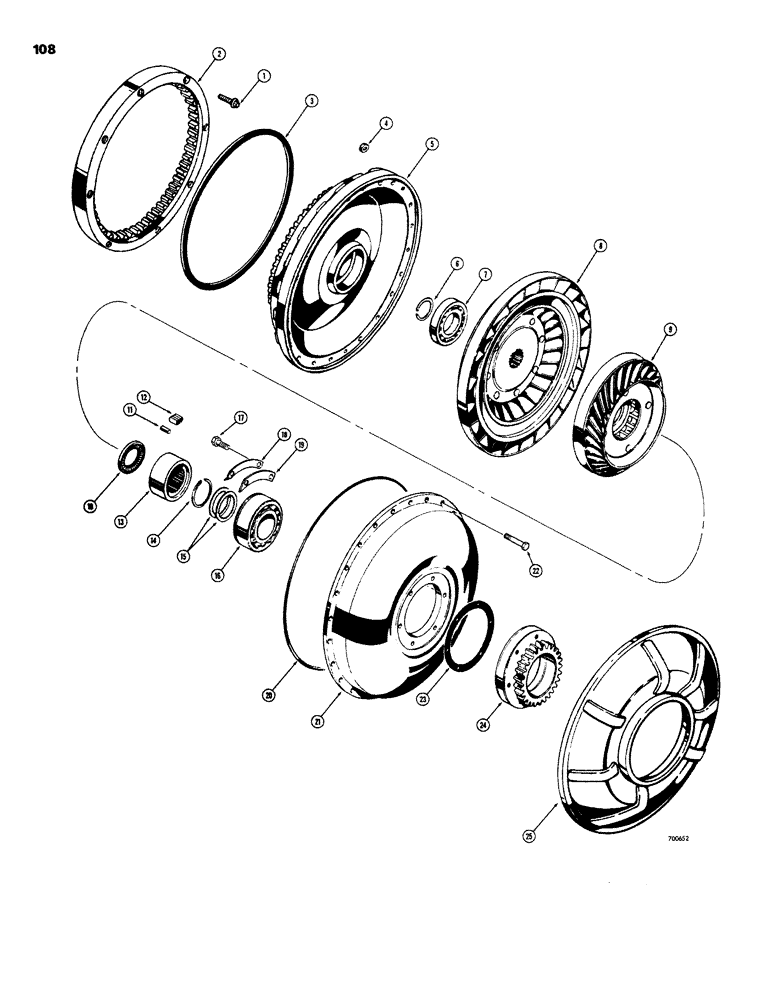

Запчасти Case W26B (108) - TRANSMISSION, TORQUE CONVERTER, BEFORE TRACTOR SN. 9116327 (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete, Includes: Ref. 1 - 25

1шт.

1

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - ferry cap (3/8" - 16 NC x 1-1/4")

8шт.

2

A16644

RING

- converter drive

1шт.

3

A16645

SEALING RING

- drive ring

1шт.

4

131-308

LOCK

NUT - hex, lock (5/16" - 24 NF)

24шт.

5

L30355

COVER

- converter pump

1шт.

6

L32789

RING, SNAP

SNAP RING - external type

1шт.

7

L30286

BEARING

- ball type, single row

1шт.

8

L32790

WHEEL (STEERING)

TURBINE - torque converter

1шт.

L30288

STATOR

ASSEMBLY - torque converter (When stock is exhausted, order L33907 stator for service), Includes: Ref. 9 and 10

1шт.

L33907

STATOR

ASSEMBLY - torque converter, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

STATOR - torque converter

1шт.

10

L30289

BALL BEARING

- needle roller type

1шт.

11

L30290

ROLLER

- free wheel

10шт.

12

L30291

SPRING

- freewheel roller

10шт.

13

L30292

RACE

- freewheel roller

1шт.

14

A12694

RING, SNAP

RING - retaining, external snap type

1шт.

15

L30293

SPACER

- roller race

2шт.

16

L30297

BALL BEARING

- ball type, double row

1шт.

17

121-112

BOLT,Hex, Lock, 5/16"-24 x 1 1/4"

- self locking (5/16" - 24 NF x 1-1/4")

6шт.

18

L30295

LOCKING PLATE

LOCKSTRIP - bolt

3шт.

19

L30296

RETAINER

REATAINER - bearing

3шт.

20

A12674

RING

SEAL - converter, square type

1шт.

L32791

PUMP

ASSEMBLY - converter, Includes: Ref. 21 and 22

1шт.

21

NSS

NOT SOLD SEPARAT

PUMP BODY - converter

1шт.

22

A12695

BOLT

- special

24шт.

23

D65162

GASKET

-, Serial Range: gear-pump

1шт.

24

L30300

GEAR WHEEL

GEAR - drive, accessory

1шт.

25

L34000

DIAPHRAGM

DIAPHAGM AND SEAL ASSEMBLY - converter

1шт.
