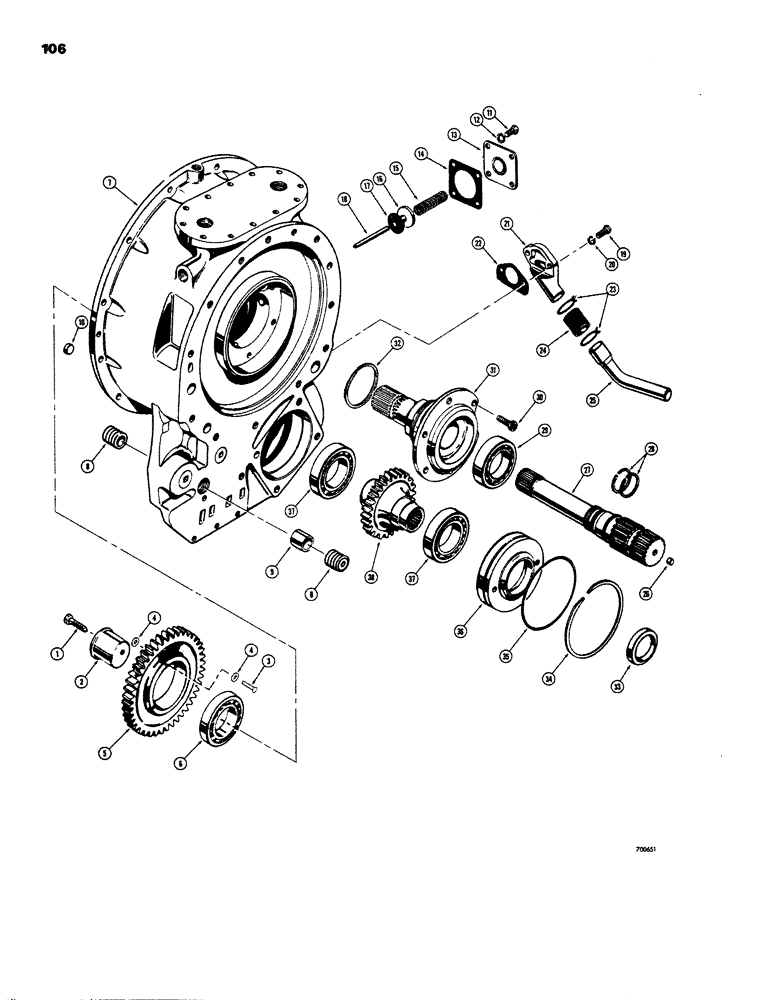

Запчасти Case W26B (106) - TRANSMISSION, TORQUE CONVERTER HOUSING AND PUMP DRIVE (06) - POWER TRAIN

L40100

TRANSMISSION

ASSEMBLY - complete (Before tractor Sn. 9116327), Includes: Ref. 1 - 38

1шт.

L55659

TRANSMISSION

ASSEMBLY - complete (Tractor Sn. 9116327 thru 9123822), Includes: Ref. 1 - 38

1шт.

L73758

CONVERTER

TRANSMISSION ASSEMBLY - complete (Tractor Sn. 9123822 and after), Includes: Ref. 1 - 38

1шт.

1

121-303

BOLT,Hex, Lock, 7/16"-14 x 1 3/4"

- self locking (7/16" - 14 NC x 1-3/4")

1шт.

2

A12794

SPINDLE

- idler

1шт.

A40039

GEAR SET

GEAR ASSEMBLY - accessory drive idler, Includes: Ref. 3 - 6

1шт.

3

A40041

RIVET

- special

3шт.

4

L30999

WASHER

- special

6шт.

5

NSS

NOT SOLD SEPARAT

GEAR - accessory drive idler

1шт.

6

A31127

BALL BEARING,1.968" ID x 3.5433" OD x 0.7874"

BEARING - ball type, single row

1шт.

A12821

HOUSING ASSEMBLY - converter, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - converter

1шт.

8

221-36

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, suare socket head (1" NPT)

2шт.

9

A13514

TUBE - oil transfer

1шт.

10

L30301

PLUG

- expansion

1шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

A12772

COVER - valve

1шт.

14

D71430

GASKET

- valve cover

1шт.

15

A12676

SPRING - lube vale

1шт.

16

A40058

VALVE

- lube pressure regulating

1шт.

17

A40059

WASHER

- lube pressure regulating valve

1шт.

18

A12689

PIN - valve guide

1шт.

19

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

A12774

FLANGE

- drain tube

1шт.

22

A12820

GASKET

- flange to converter housing

1шт.

23

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

24

A12773

HOSE ASSY.

HOSE - drain tube

1шт.

25

A12775

TUBE - drain, converter housing

1шт.

L32794

SHAFT ASSEMBLY - torque converter, Includes: Ref. 26 and 27

1шт.

26

L30303

PLUG

- lube hole (When stock is exhausted, order L33604 plug for service)

1шт.

26

L33604

PLUG

- lube hole

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - torque converter

1шт.

28

L32793

SEAL

- ring, hook type

2шт.

29

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball type, single row

1шт.

30

121-206

BOLT,Hex, Lock, 3/8"-16 x 7/8"

- self locking (3/8" - 16 NC x 7/8")

6шт.

31

L32792

SLEEVE

- converter ground

1шт.

32

A12841

SEAL

- ring, hook type

1шт.

33

A13262

SEAL

- oil, lip type

1шт.

34

A12816

SNAP RING

- internal type

1шт.

35

A13255

O-RING

SEAL - "O" ring, bearing retainer

1шт.

36

A13254

RETAINER

- bearing

1шт.

37

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BEARING - ball type, single row

2шт.

38

A13257

GEAR WHEEL

GEAR - charging pump drive

1шт.
