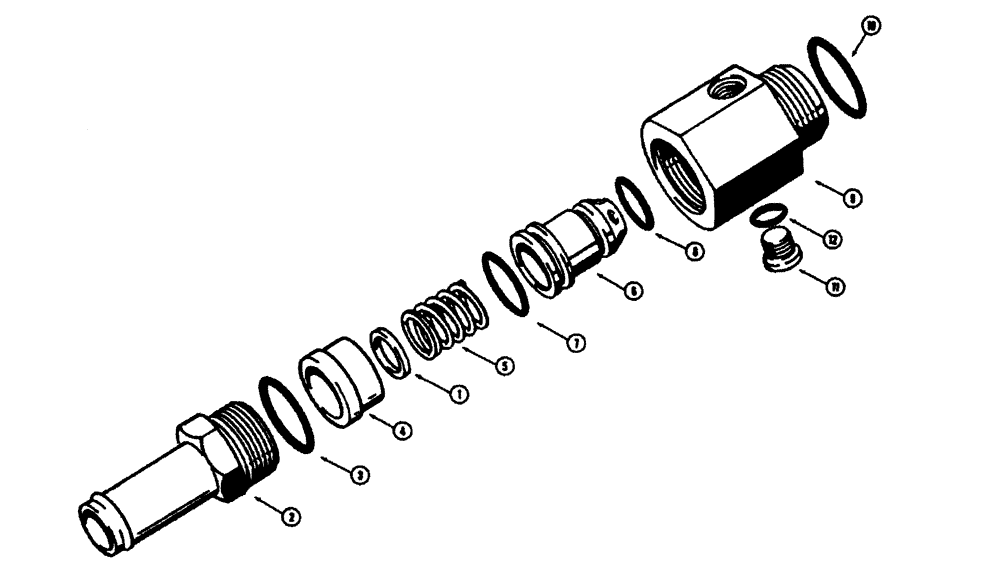

Запчасти Case W26B (392) - LOADER HYDRAULIC SYSTEM L47380 REGENERATION CHECK VALVE (05) - STEERING

L47380

LOCK VALVE

VALVE - check, regeneration, Includes: Ref. 1 - 10

1шт.

1

L50226

SPACER

- spring

1шт.

2

L45852

FITTING

- connector, check valve to manifold hose, Includes: Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

4

L47371

SPACER

WASHER - spring retainer

1шт.

5

L47372

VALVE SPRING

SPRING - poppet

1шт.

6

L47370

VALVE POPPET

POPPET - valve

1шт.

7

L50227

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

SEAL - "O" ring, poppet (Large)

1шт.

8

L33128

O-RING,0.984" ID x 0.139" Width

SEAL - "O" ring, poppet (Small)

1шт.

9

L47369

BODY

- valve

1шт.

10

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring, check valve body

1шт.

11

9672438

PLUG,7/16" - 20 ORB

Hydraulic, Incl. Ref. 12 Hex Hd, 7/16"-20 ORB

1шт.

12

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

SEAL - "O" ring

1шт.
