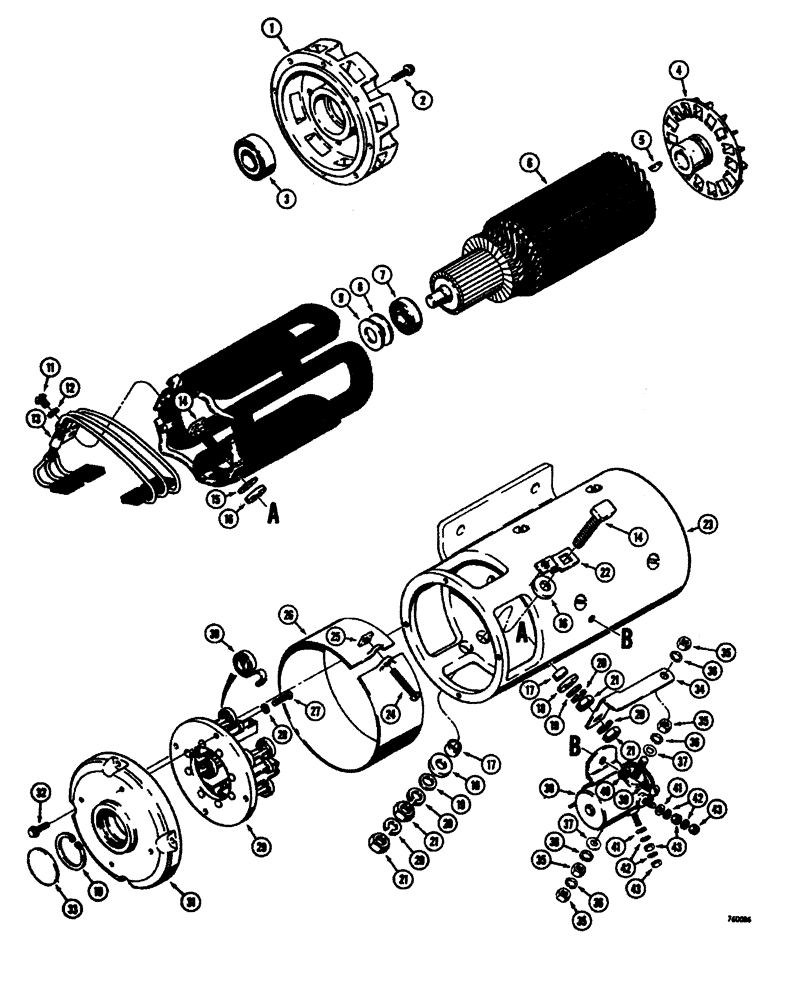

Запчасти Case W26B (388) - D71479 EMERGENCY STEERING MOTOR (05) - STEERING

D71479

MOTOR, ELECTRIC

MOTOR - emergency steering pump (Prestolite MBD - 4311A), Includes: Ref. 1 - 33

1шт.

1

A45406

LARGE PLATE

PLATE - end, drive end

1шт.

2

NSS

NOT SOLD SEPARAT

BOLT - end plate mounting

8шт.

3

A45399

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, end plate

1шт.

4

A45403

FAN

- cooling

1шт.

5

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

1шт.

6

A45396

ARMATURE

- motor

1шт.

7

A45398

BALL BEARING,0.4724" ID x 1.2598" OD x 0.3937"

BEARING - ball end plate

1шт.

A45407

KIT

RETAINING AND THRUST WASHER KIT, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - thrust, .015" thick (.38 mm)

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - thrust, .032" thick (/81 mm)

1шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - snap ring

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush retaining

2шт.

12

NSS

NOT SOLD SEPARAT

WASHER - shakeproof

2шт.

13

A45400

BRUSH SET

- includes 8 brushes

1шт.

A45408

KIT

TERMINAL KIT - motor, Includes: Ref. 14

1шт.

14

NSS

NOT SOLD SEPARAT

STUD - motor

2шт.

15

NSS

NOT SOLD SEPARAT

WASHER - plain, inner, Includes: Ref. 16 - 22

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - insulation, inner

2шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - terminal

2шт.

18

NSS

NOT SOLD SEPARAT

WASHER - insulation, outer

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - plain, outer

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

21

NSS

NOT SOLD SEPARAT

NUT - hex

4шт.

22

NSS

NOT SOLD SEPARAT

TERMINAL - brushes

1шт.

23

A45401

CRANKCASE ASSY

HOUSING AND FIELD WINDING ASSEMBLY - motor

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW - band retaining

1шт.

25

NSS

NOT SOLD SEPARAT

NUT - band

1шт.

26

A45397

CLAMP

BAND - cover

1шт.

A45404

PLATE ASSY.

PLATE - end, commutator end, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

BOLT - brush plate mounting

4шт.

28

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

29

A45405

PLATE ASSY.

PLATE - brush, Includes: Ref. 30 and 31

1шт.

30

A45423

IMPELLER

SPRING SET - brushes (quanity 8)

1шт.

31

NSS

NOT SOLD SEPARAT

PLATE - end, commutator

1шт.

32

NSS

NOT SOLD SEPARAT

BOLT - commutator end plate mounting

4шт.

33

NSS

NOT SOLD SEPARAT

PLUG - welsh, bearing

1шт.

34

D71481

CONNECTOR, ELEC

STRAP - solenoid ground

1шт.

35

NSS

NOT SOLD SEPARAT

NUT - hex

4шт.

36

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

37

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

38

D73638

SOLENOID

- motor

1шт.

39

173-293

SCREW,Sl Rnd Hd, #10 - 32 x 5/16", Brass

- solenoid mounting

2шт.

40

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

41

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

42

NSS

NOT SOLD SEPARAT

WASHER - lock

4шт.

43

NSS

NOT SOLD SEPARAT

NUT - hex

4шт.
