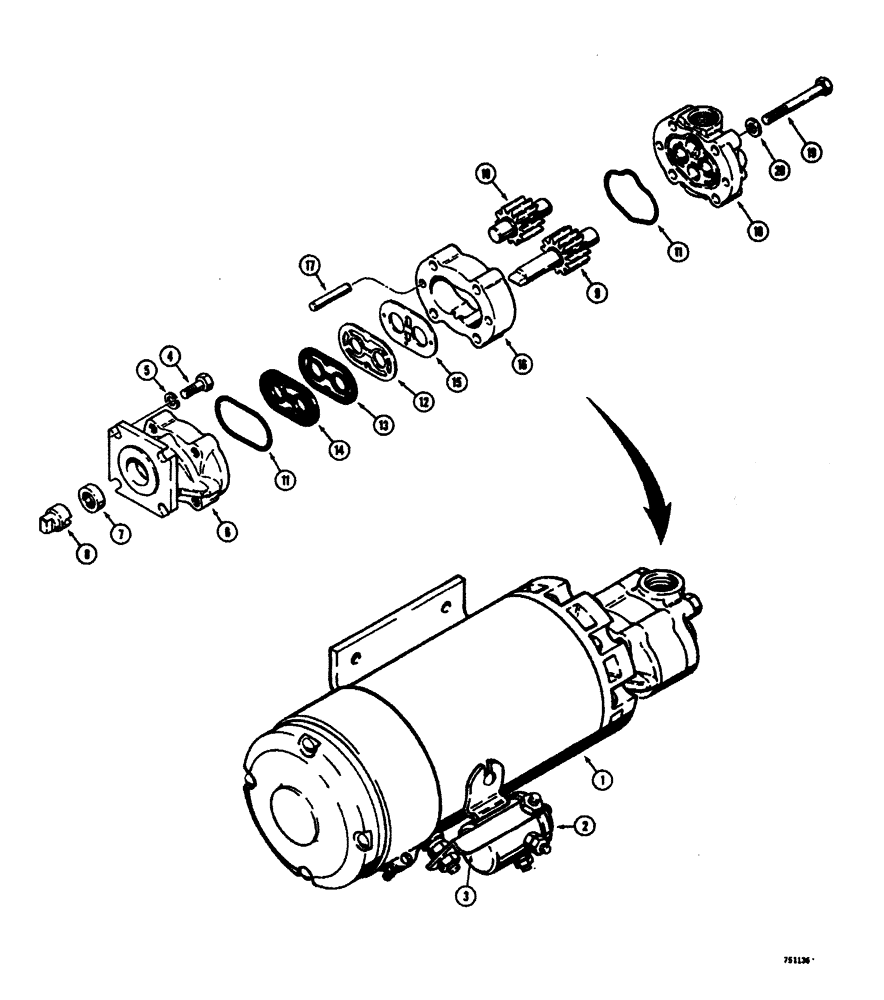

Запчасти Case W26B (386) - L70813 EMERGENCY STEERING PUMP AND MOTOR (05) - STEERING

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - emergency steering, Includes: Ref. 1 - 20

1шт.

1

D71479

MOTOR, ELECTRIC

MOTOR - electric (Parts list figure 388)

1шт.

2

REF

INSTRUCTION

SOLENOID - electric motor, parts list figure 388

1шт.

3

D71481

CONNECTOR, ELEC

STRAP - solenoid mounting

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

5

92-5

LOCK WASHER,5/16"

med sect. 5/16"

4шт.

D71496

COVER

PUMP ASSEMBLY - emergency steering, Includes: Ref. 6 - 20

1шт.

6

D71496

COVER

- front

1шт.

7

C15735

SEAL

- front cover

1шт.

8

D71498

COUPLING

- pump drive

1шт.

9

D71497

PINION

GEAR ASSEMBLY - drive

1шт.

10

C15731

GEAR

ASSEMBLY - drive

1шт.

11

C15732

SNAP RING

SEAL - "O" ring

2шт.

12

C15738

SHIELD

- heat

1шт.

13

C15739

GASKET

- pump

1шт.

14

C15740

SEAL ASSY.

SEAL - "V" type

1шт.

15

C15737

PLATE

- wear

1шт.

16

C15733

SECTION - center

1шт.

17

C15729

DOWEL

PIN - dowel

2шт.

18

C15730

COVER

- back

1шт.

19

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

4шт.

20

C19115

WASHER

- flat, 5/16"

4шт.
