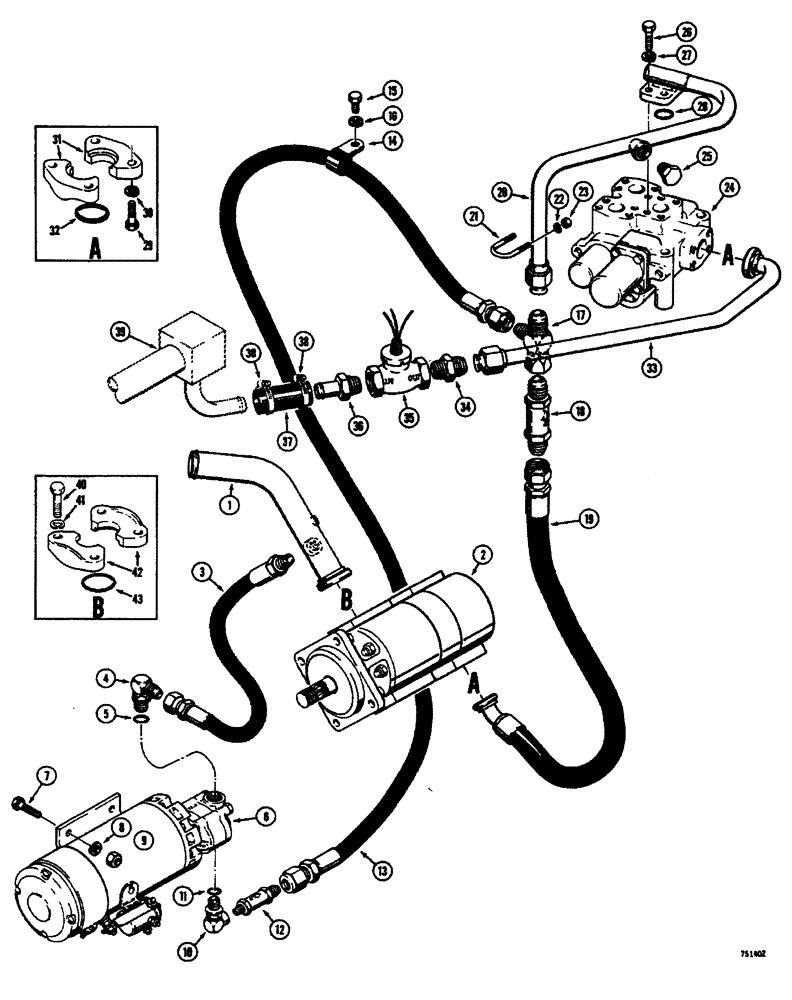

Запчасти Case W26B (382) - EMERGENCY STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

L40233

TUBE,11.2" L

- suction, at pump

1шт.

2

REF

INSTRUCTION

PUMP - hydraulic, loader and steering (See figures 422 and 424 for proper pump)

1шт.

3

L72478

HOSE - suction, at emergency steering pump

1шт.

4

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degrees, adjustable, Incl. Ref. 5

1шт.

5

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

6

L70813

HYDRAULIC STEERING

PUMP AND MOTOR - emergency steering (Parts list figure 386)

1шт.

7

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC X 1-1/2"

4шт.

8

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

9

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

4шт.

10

218-5460

FITTING

ELBOW - 90 degrees, adjustable, Includes: Ref. 11

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

12

L70819

VALVE

- check

1шт.

13

L59777

HOSE ASSY.

HOSE - pump to pressure hydraulics

1шт.

14

49831

CLAMP

- emergency steering, Serial Range: hose-transmission

1шт.

15

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

1шт.

16

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

1шт.

17

218-5216

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

To check valve 37º, 1 1/16"-12x1 1/16"-12, Fem Sw Runx1 1/16"-12

1шт.

18

L59608

LOCK VALVE

VALVE - check

1шт.

19

L72498

HOSE

- pump to check valve

1шт.

20

L59787

TUBE - to steering valve 1" OD

1шт.

21

L42674

HARDWARE

"U" BOLT - tube clamp

1шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

25-104

NUT,1/4"-20, G5

2шт.

24

REF

INSTRUCTION

VALVE - steering control (Parts list figures 260 and 262)

1шт.

25

221-655

PLUG,Hex Hd, 3/4"-14

- pipe, hex head (3/4" NPT)

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

4шт.

28

F13297

HARDWARE

SEAL - "O" ring

1шт.

29

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

30

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

31

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

32

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

33

L59792

TUBE - steering valve return 1" OD x 22.33, 5.72" L

1шт.

34

218-448

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1" - 11-1/2 Male NPTF

CONNECTOR - male, straight

1шт.

35

L58400

PRESSURE SWITCH

SWITCH - flow control

1шт.

36

217-156

FITTING,1" Hose Barb x 1" Male NPTF

CONNECTOR - hose barb

1шт.

37

L40247

HOSE,1" ID x 1.5" OD x 4" L

1.00" ID x 4.00", SAE 100R1, Return, at Manifold Tube

1шт.

38

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

39

L40325

TUBE - manifold, steering valve and loader valve return

1шт.

40

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

41

92-8

LOCK WASHER,1/2"

4шт.

42

L14386

CLAMP

FLANGE - split, 2-1/2" (63 mm)

2шт.

43

L53822

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - 0-ring

1шт.
