Запчасти Case W26B (378) - LOADER AND STEERING PRIMARY HYDRAULIC CIRCUIT PUMP SUCTION AND VALVE RETURN LINES (05) - STEERING

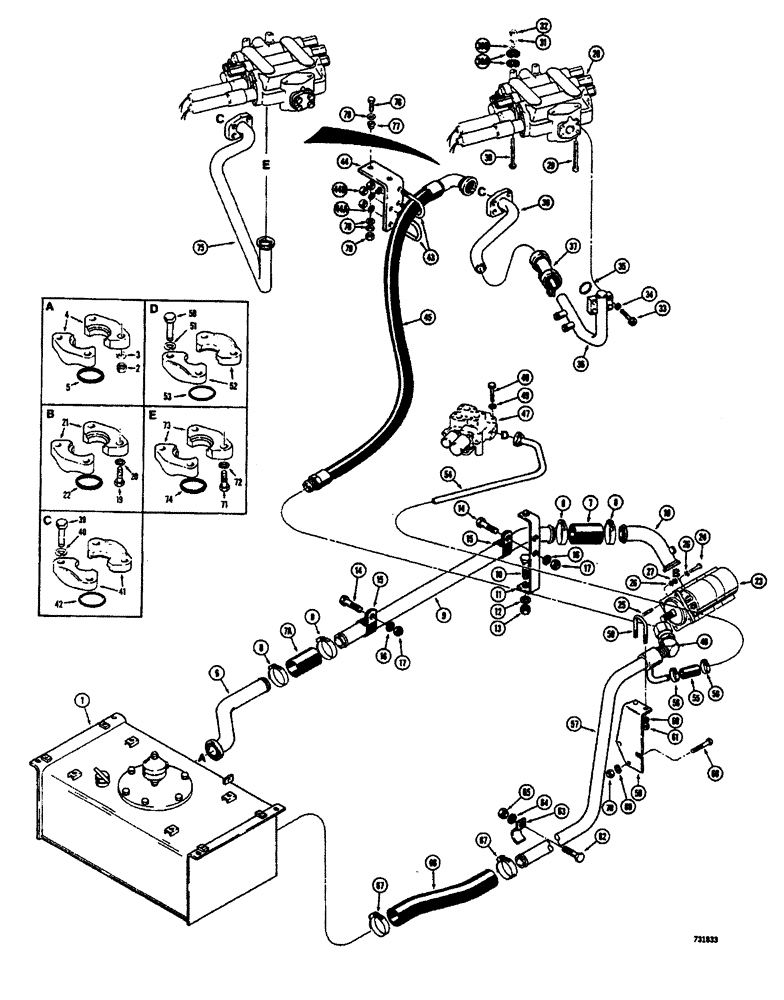

Схема запчастей Case W26B - (378) - LOADER AND STEERING PRIMARY HYDRAULIC CIRCUIT PUMP SUCTION AND VALVE RETURN LINES (05) - STEERING
56
13
8
67
70
29
77
23
30a
15
10
28
36
44b
26
15
78
16
44a
34
30b
4
16
22
59
7a
50
17
65
32
47
68
69
24
42
62
2
8
75
3
72
60
57
53
26
45
79
56
12
30
67
49
20
25
52
7
58
76
27
14
8
6
54
37
35
31
11
6
21
71
74
78
9
51
14
19
38
1
61
17
41
40
55
64
18
44
63
46
33
8
5
48
39
73
43

Артикул

Название

Примечание

Количество

1

L40048

TANK - hydraulic (See figures 282 and 284 for related parts)

1шт.

2

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) Used with L40253 tube only

4шт.

3

92-8

LOCK WASHER,1/2"

med. sect., Used with L40253 tube only 1/2"

4шт.

4

L14386

CLAMP

FLANGE - split, 2-1/2" (63 mm) Used with L40253 tube only

2шт.

5

L53822

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring (Used with L40253 tube only)

1шт.

6

L40253

TUBE,20.4, 7.9" L

- suction, rear (Tractors with three filters in hyd. tank)

1шт.

7

L40248

HOSE,2.50" ID x 4.00"

Suction, Low Pressure 2.50" ID x 4.00"

1шт.

7a

L40248

HOSE,2.50" ID x 4.00"

Suction, Low Pressure, If Used 2.50" ID x 4.00"

1шт.

7a

L52761

HOSE ASSY.

HOSE - suction, low pressure, 10" long (254 mm) If used

1шт.

8

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose

4шт.

9

L40342

TUBE - suction, center, 49" long (1244 mm) Shown 2.5" OD x 48.9, 2.3" L

1шт.

9

L52760

TUBE - suction, center, 62-1/2" long (1587 mm) Not shown 2.5" OD x 62.5, 7.7" L

1шт.

10

13-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

HHCS - 3/8" - 16 NC x 1-3/8"

2шт.

11

L40301

BRACKET - mounting, tube clamp

1шт.

12

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

15

R22054

CLAMP

- center suction tube

2шт.

16

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

18

L40233

TUBE,11.2" L

- suction, at pump

1шт.

19

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

4шт.

20

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

21

L13386

FLANGE - split, 2-1/2" (63 mm)

2шт.

22

L53822

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

23

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, loader and steering (See figures 422 and 424 for proper pump)

1шт.

24

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

25

A50342

STUD

- pump mounting (Lower holes)

2шт.

26

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

27

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

28

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figures 434 - 438 and 448 - 450 for proper valve)

1шт.

29

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC x 6")

2шт.

30

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

30a

L57117

WASHER

- rubber, valve mounting

8шт.

30b

95-8

WASHER,1/2"

plain 1/2"

4шт.

31

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

32

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

33

61-832

HEX SOC SCREW,1/2"-13 x 2"

CAP SCREW - hex socket head (1/2" -13 NC x 2) Used with 146045 tube only

4шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with L46045 tube only 1/2"

4шт.

35

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

SEAL - "O" ring (Used with L46045 or L53318 tube)

1шт.

36

L46045

TUBE - manifold, loader valve return (Tractors with solenoid detented loader control valve)

1шт.

37

L12284

COUPLING, BREAK AWAY

COUPLING - Marmon (Parts list figure 404) Used with L45045 tube only

1шт.

38

L50488

TUBE,4.3" L

- return, valve to tank, intermediate (Tractors with solenoid detented loader control valve)

1шт.

39

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

40

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

41

A14157

FLANGE

- split, 1-1/2" (38 mm)

2шт.

42

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

43

R677S

U-BOLT

CLAMP - "U" type, hose

2шт.

44

L53672

BRACKET - clamp mounting

1шт.

44a

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

44b

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

45

L50490

HOSE ASSY.

HOSE - return, valve to reservoir, 50-1/2" long (1282 mm)

1шт.

46

218-943

ELBOW

- swivel, 45 degrees

1шт.

47

L42822

LOCK VALVE

VALVE - steering control (Parts list figures 260 and 262)

1шт.

48

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

49

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

50

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

51

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

52

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

53

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

54

L40265

TUBE - return, steering, Serial Range: valve-reservoir

1шт.

55

L40247

HOSE,1" ID x 1.5" OD x 4" L

1.00" ID x 4.00", SAE 100R1, Return, at Manifold Tube

1шт.

56

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose

2шт.

57

L740325

TUBE - manifold, steering valve and loader valve return

1шт.

58

L40323

BRACKET - support, manifold tube

1шт.

59

A31210

BOLT

- "U" type, Serial Range: tube-bracket

1шт.

60

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

2шт.

61

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

62

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

63

A14146

CLAMP - tube, return

1шт.

64

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

1шт.

65

25-106

NUT,3/8"-16, G5

- hex. (3/8" -16 NC)

1шт.

66

L40324

HOSE ASSY.

HOSE - return, manifold reservoir

1шт.

67

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

68

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

2шт.

69

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

2шт.

70

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

71

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

72

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

73

A14157

FLANGE

- split, 1-1/2" (38 mm)

2шт.

74

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

75

L53318

TUBE - loader valve return (Tractors with magnetic detented loader control valve) 1.5" OD

1шт.

76

13-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

(Bracket mounting) Hex, 3/8"-16 x 1 5/8", G5

2шт.

77

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

SHOCK MOUNT - bracket

2шт.

78

195-28

WASHER,3/8"

- plain

6шт.

79

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.
