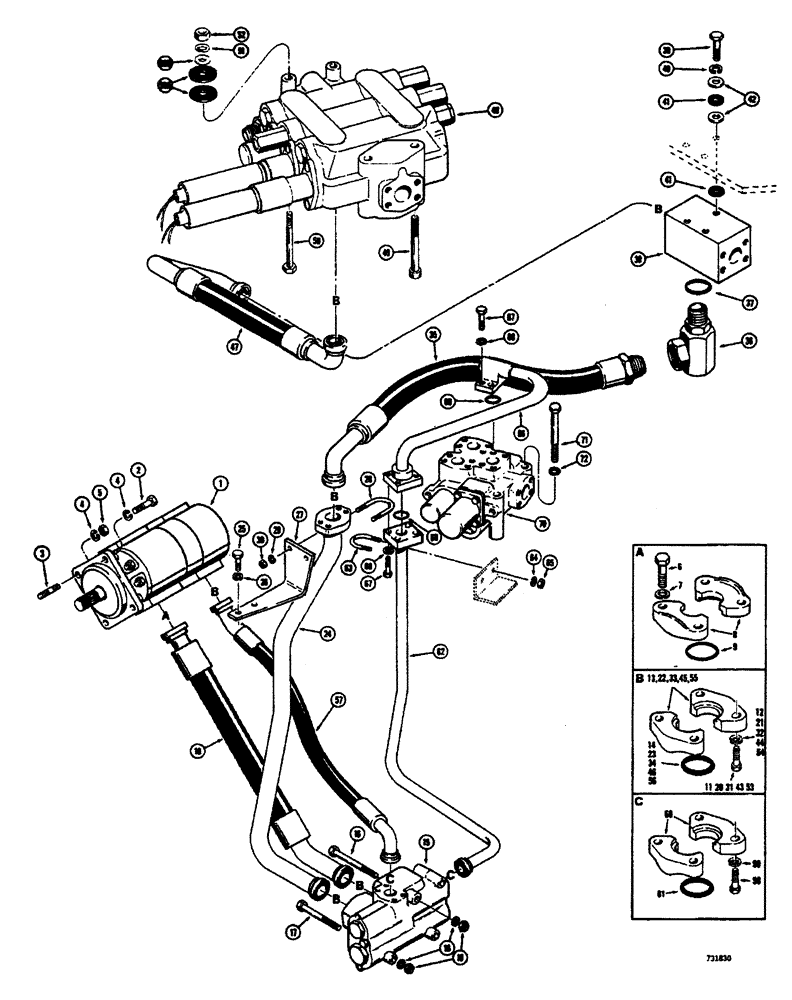

Запчасти Case W26B (366) - LOADER AND STEERING PRIMARY HYDRAULICS CIRCUIT PUMP TO VALVE WITH DEMAND VALVE (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, loader and steering (See figures 422 and 424 for proper pump)

1шт.

2

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

3

A50342

STUD

- pump mounting (Lower holes)

2шт.

4

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

8

A14157

FLANGE

- split, 1-1/2" (38 mm)

2шт.

9

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

SEAL - "O" ring (At pump outlet)

1шт.

10

L42610

HOSE

- pump to demand valve, loader

1шт.

11

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

4шт.

12

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

13

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

14

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring (At demand valve inlet)

1шт.

15

L41557

VALVE ASSEMBLY - demand (Parts list figure 462)

1шт.

16

13-680

CAPSCREW,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

2шт.

17

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

HHCS - 3/8" - 16 NC x 4-1/4"

1шт.

17a

95-6

WASHER,3/8"

- plain () Not shown 3/8"

3шт.

18

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

3шт.

19

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

20

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

4шт.

21

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

22

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

23

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring (At demand valve outlet)

1шт.

24

L42616

TUBE,1.5" OD x 33.8, 12.6" L

- demand valve to junction block

1шт.

25

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

25a

195-20

WASHER

- plain (5/16") Not shown

2шт.

26

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

L40295

BRACKET - mounting, tube clamp (When stock is exhausted, order L52183 bracket, (2) 13-516 bolts, (2) 92 - 5 lockwashers and (2) 195 - 20 plainwashers for service)

1шт.

27

L52183

BRACKET - mounting, tube clamp (Not shown)

1шт.

28

L40297

BOLT

CLAMP - "U" type, tube to bracket (When stock is exhausted, order L58066 "U" bolt)

1шт.

28

L58066

BOLT

CLAMP - "U" type, Serial Range: tube-bracket

1шт.

29

92-5

LOCK WASHER,5/16"

med sect. 5/16"

2шт.

30

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

31

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

4шт.

32

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

33

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

34

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

35

L13138

HOSE ASSY.

HOSE - pump to junction block

1шт.

36

L13139

JOINT TURNING

JOINT - swivel, 90 degrees, (Parts list figure 404)

1шт.

37

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

38

L13141

BLOCK

- junction

1шт.

39

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

40

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.

41

L13142

BUSHING

MOUNT - rubber, junction block

6шт.

42

32506

WASHER - rubber, Serial Range: mount-block

6шт.

43

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

44

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

8шт.

45

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

4шт.

46

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

47

L13144

HOSE

- junction block to loader valve (2 spool valve only)

1шт.

47

L12169

HOSE - junction block to loader valve (3 spool valve only)

1шт.

48

REF

INSTRUCTION

VALVE - hydraulic, loader control (See figure 434 - 438 for proper valve)

1шт.

49

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC x 6")

2шт.

50

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

50a

L57117

WASHER

- rubber, valve mounting

8шт.

sob

95-8

WASHER,1/2"

plain 1/2"

4шт.

51

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

4шт.

52

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

53

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

4шт.

54

92-7

LOCK WASHER,7/16"

med. sect. 7/16"

4шт.

55

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

56

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring (At pump outlet)

1шт.

57

L42612

HOSE

- pump to demand valve, steering, When stock is exhausted, order L52505 hose for service

1шт.

57

L52505

HOSE ASSY.

HOSE - pump to demand valve, steering

1шт.

58

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

59

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

60

A12306

FLANGE

- split, 1" (25 mm)

4шт.

61

F13297

HARDWARE

SEAL - "O" ring (At demand valve inlet and outlet)

2шт.

62

L42622

TUBE - demand valve outlet to steering valve (At demand valve) 1" OD

1шт.

63

L42674

HARDWARE

BOLT - "U" type, tube to frame bracket

1шт.

64

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

65

25-104

NUT,1/4"-20, G5

2шт.

66

L50681

TUBE ASSY.

TUBE - demand valve to steering valve (At steering valve)

1шт.

66a

218-758

CAP,37 Degree, 1 5/16"-12

- tube (Not shown)

1шт.

67

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

68

92-6

LOCK WASHER,3/8"

med. sect. 3/8"

8шт.

69

F13297

HARDWARE

SEAL - "O" ring

2шт.

69

F13297

HARDWARE

SEAL - "O" ring

2шт.

70

L42822

LOCK VALVE

VALVE - steering control (Parts list figures 260 and 262)

1шт.

71

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

72

92-8

LOCK WASHER,1/2"

med. sect. 1/2"

3шт.
