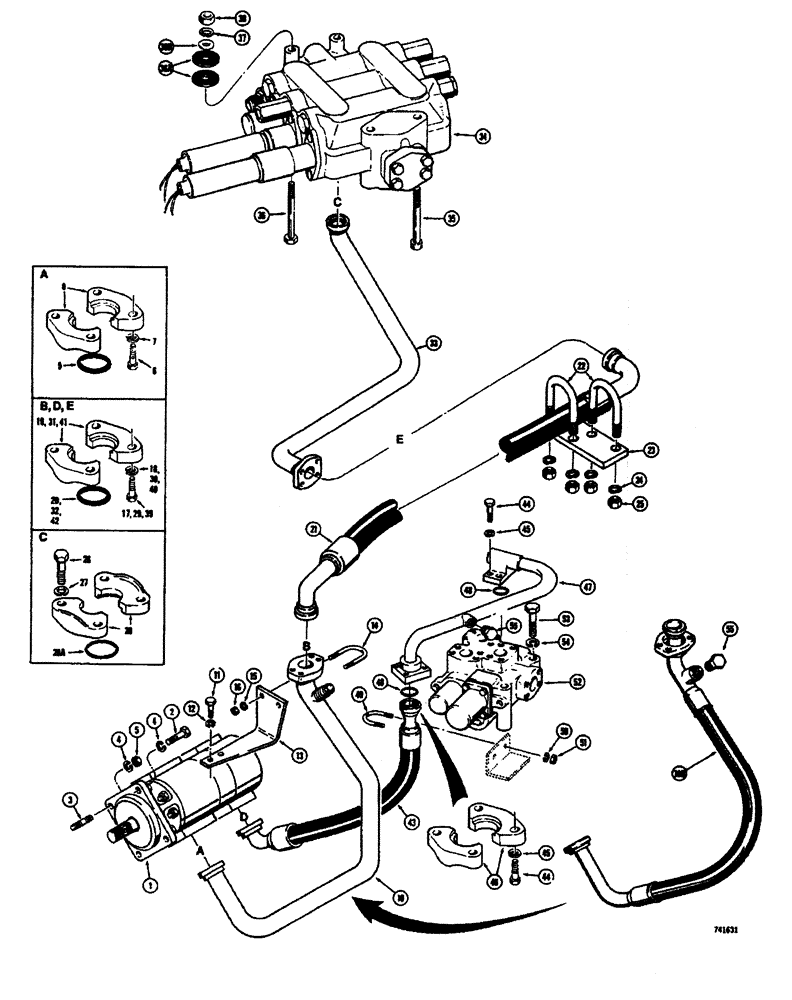

Запчасти Case W26B (362) - LOADER AND STEERING PRIMARY HYDRAULICS CIRCUIT PUMP TO VALVES WITHOUT DEMAND VALVE (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSY. - hyd. Idr. and steering (See figures 422 and 424 for proper pump)

1шт.

2

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

3

A50342

STUD

- pump mounting (Lower holes)

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

A14157

FLANGE

- split, 1-1/2" (38 mm)

2шт.

9

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

L50682

TUBE ASSY.,27, 6.94" L

TUBE - pressure, at pump (With male check port spud)

1шт.

10a

218-758

CAP,37 Degree, 1 5/16"-12

- tube (Not shown)

1шт.

10b

L58703

HOSE ASSY.

HOSE - pressure, at pump (With female check port spud)

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2-4шт.

11a

195-20

WASHER

- plain (5/16") Not shown

2шт.

12

92-5

LOCK WASHER,5/16"

2-4шт.

13

L40295

BRACKET - mounting, tube clamp (When stock is exhausted, order L52183 bracket, (2) 13-516 bolts (2) 92 - 5 lockwasher and (2) 195 - 20 plainwashers for service)

1шт.

13

L52183

BRACKET - mounting, tube clamp (Not shown)

1шт.

14

L40297

BOLT

CLAMP - "U" type, tube to bracket (When stock is exhausted, order L58066 "U" bolt for service)

1шт.

14

L58066

BOLT

CLAMP - "U" type, Serial Range: tube-bracket

1шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

17

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

18

92-7

LOCK WASHER,7/16"

4шт.

19

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

20

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

21

L50489

HOSE ASSY.

HOSE - pump to junction block

1шт.

22

R677S

U-BOLT

CLAMP - "U" type, hose

2шт.

23

L50485

BRACKET

- clamp mounting

1шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

26

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

27

92-8

LOCK WASHER,1/2"

4шт.

28

A14157

FLANGE

- split, 1-1/2" (38 mm)

2шт.

28a

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

29

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5

4шт.

30

92-7

LOCK WASHER,7/16"

4шт.

31

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

32

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O"ring

1шт.

33

L50487

TUBE,14.4, 12.4" L

- pressure, at control valve (2 spool vlave only)

1шт.

33

L50074

TUBE ASSY.,12.4, 11.5" L

TUBE - pressure, at control valve (3 spool valve only)

1шт.

34

REF

INSTRUCTION

VALVE - hyd. Idr. control (See figures 434 - 438 and 448 - 450 for proper valve)

1шт.

35

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC x 6")

2шт.

36

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

36a

L57117

WASHER

- rubber, valve mounting

8шт.

36b

95-8

WASHER,1/2"

plain 1/2"

4шт.

37

92-8

LOCK WASHER,1/2"

4шт.

38

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

4шт.

39

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

4шт.

40

92-7

LOCK WASHER,7/16"

4шт.

41

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

42

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

43

L43138

HOSE

- pressure, pump to steering valve

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

45

92-6

LOCK WASHER,3/8"

8шт.

46

A12306

FLANGE

- split, 1" (25 mm)

2шт.

47

L50681

TUBE ASSY.

TUBE - pressure pump to steering valve (With male check port spud) Not shown

1шт.

47a

218-758

CAP,37 Degree, 1 5/16"-12

- tube (Not shown)

1шт.

47

L53097

TUBE

- pressure pump to steering valve (With female check port spud)

1шт.

48

F13297

HARDWARE

SEAL - "O" ring

2шт.

49

L43144

BOLT (SPREADER)

BOLT - "U" type, hose to frame bracket

1шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

51

25-104

NUT,1/4"-20, G5

2шт.

52

L42822

LOCK VALVE

VALVE - steering control (Parts list figures 260 and 262)

1шт.

53

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

54

92-8

LOCK WASHER,1/2"

3шт.

55

221-655

PLUG,Hex Hd, 3/4"-14

- pipe, hex. head (3/4"NPT) Used with L53097 tube and L58703 hose)

2шт.
