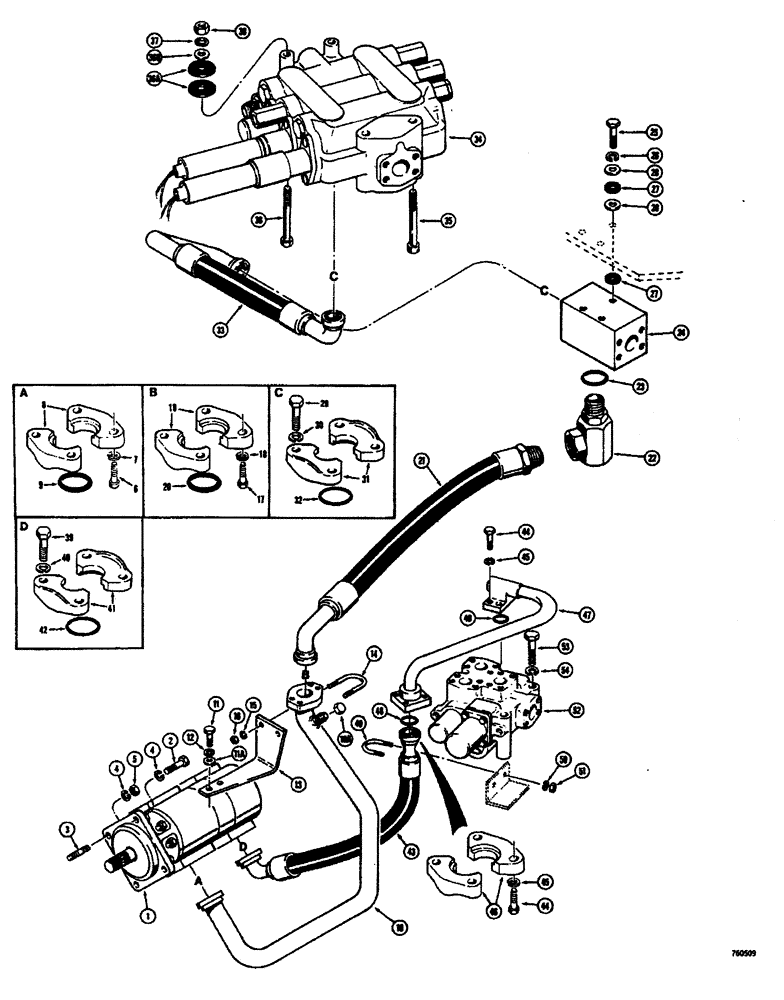

Запчасти Case W26B (358) - LOADER AND STEERING PRIMARY HYDRAULICS CIRCUIT PUMP TO VALVE WITHOUT DEMAND VALVE (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic, loader and steering (See figure 422 and 424 for proper pump)

2шт.

2

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

3

A50342

STUD

- pump mountng (Lower holes)

2шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

6

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

4шт.

7

92-8

LOCK WASHER,1/2"

4шт.

8

A14157

FLANGE

- split, 1-1/2" (38 mm)

2шт.

9

L53821

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

10

L50682

TUBE ASSY.,27, 6.94" L

TUBE - pressure, at pump, Includes: Ref. 10A

1шт.

10a

218-758

CAP,37 Degree, 1 5/16"-12

- tube

1шт.

11

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Includes: Ref. 11A Hex, 5/16"-18 x 1", G5, Full Thd

2-4шт.

11a

195-20

WASHER

- plain (5/16")

2шт.

12

92-5

LOCK WASHER,5/16"

2-4шт.

13

L40295

BRACKET - mounting, tube clamp (When stock is exhausted, order L52183 bracket, (2) 13 - 516 bolts, (2) 95 - 5 lock-washers and (2) 195 - 20 plain washers for service

1шт.

13

L52183

BRACKET - mounting, tube clamp (Not shown)

1шт.

14

L40297

BOLT

CLAMP - "U" type, tube to brackt (When stock is exhausted, order L58066 "U" bolt for service)

1шт.

14

L53066

CLAMP - "U" type, Serial Range: tube-bracket

1шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

17

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

4шт.

18

92-7

LOCK WASHER,7/16"

4шт.

19

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

2шт.

20

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

21

L13138

HOSE ASSY.

HOSE - pump to function block

1шт.

22

L13139

JOINT TURNING

JOINT - swivel, 90 degree (Parts list figure 404)

1шт.

23

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

24

L13141

BLOCK

- junction

1шт.

25

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

26

92-8

LOCK WASHER,1/2"

3шт.

27

CASL13142

BUSHING

MOUNT - rubber, junction block

6шт.

28

32506

WASHER - rubber, Serial Range: mount-block

6шт.

29

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

8шт.

30

92-7

LOCK WASHER,7/16"

8шт.

31

A12301

CLAMP,Half

- split, 1-1/4" (31 mm)

4шт.

32

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

33

L13144

HOSE

- junction block to loader valve (2 spool valve only)

1шт.

33

L13169

HOSE ASSY.

HOSE - junction, Serial Range: block-loader

1шт.

34

REF

INSTRUCTION

valve (3 spool valve only) VALVE - hydraulic, loader control (See figures 344 - 438 for proper valve)

1шт.

35

61-896

CAP SCREW - hex. socket head (1/2" - 13 NC x 6")

2шт.

36

13-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

2шт.

36a

L57117

WASHER

- rubber, valve mounting

8шт.

36b

95-8

WASHER,1/2"

plain 1/2"

4шт.

37

92-8

LOCK WASHER,1/2"

4шт.

38

25-108

NUT,1/2"-13, G5

- hex. (1/2" 1 13 NC)

4шт.

39

13-722

BOLT,Hex, 7/16" - 14 x 1-3/8", Gr 5

4шт.

40

92-7

LOCK WASHER,7/16"

4шт.

41

A12301

CLAMP,Half

- split, 1-1/4" (1 mm)

2шт.

42

A41162

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

43

L43138

HOSE

- pressure, pump to steering vlave

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

45

92-6

LOCK WASHER,3/8"

8шт.

46

A12306

FLANGE

- split (1")

2шт.

47

L50681

TUBE ASSY.

TUBE - pressure, pump to steering valve

1шт.

47a

218-758

CAP,37 Degree, 1 5/16"-12

- tube (Not shown)

1шт.

48

F13297

HARDWARE

SEAL - "O" ring

2шт.

49

L43144

BOLT (SPREADER)

BOLT - "U" type, hose to frame bracket

1шт.

50

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

51

25-104

NUT,1/4"-20, G5

2шт.

52

L42822

LOCK VALVE

VALVE - steering control (Parts list figures 260 and 262)

1шт.

53

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

54

92-8

LOCK WASHER,1/2"

3шт.
