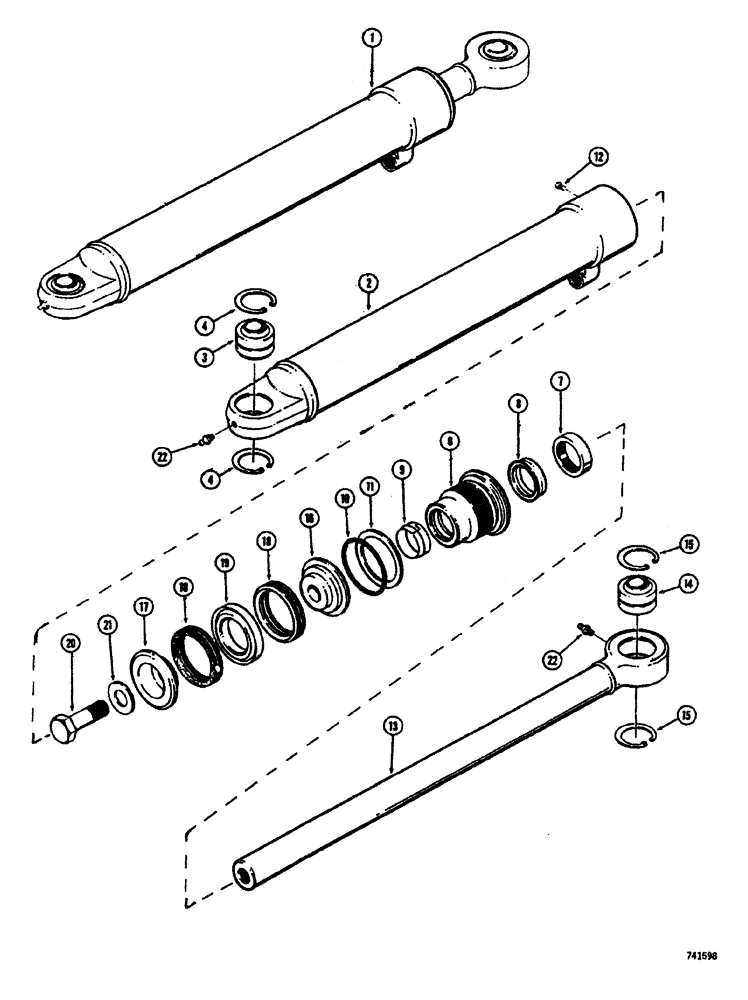

Запчасти Case W26B (266) - G32676 AND G32576 STEERING CYLINDERS, GLAND HAS SOLID OUTER WIPER AND SPLIT INNER ROD WIPER (05) - STEERING

1

G32575

CYLINDER ASSEMBLY - steering, L.H. 3-1/2" dia. x 21-1/4" stroke (88 mm dia. x 539 mm stroke), Includes: Ref. 2 - 22

1шт.

1

G32576

CYLINDER ASSEMBLY - steering, R.H. 3-1/2" dia. x 21-1/4" stroke (88 mm dia. x 539 mm stroke), Includes: Ref. 2 - 22

1шт.

2

D49303

TUBE ASSY. - cylinder body, left hand, Includes: Ref. 3 and 4

1шт.

2

D49304

TUBE ASSY. - cylinder body, right hand, Includes: Ref. 3 and 4

1шт.

3

L12570

BUSHING

- tube, (self -aligning)

1шт.

4

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bushing retaining

2шт.

G32736

GLAND

ASSY., Includes: Ref. 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit, P/N G32293

1шт.

8

D36971

RING

SEAL - piston rod

1шт.

Part of Seal Kit, P/N G32293

1шт.

9

D27380

SCRAPER RING

WIPER - piston rod, inner

1шт.

Part of Seal Kit, P/N G32293

1шт.

10

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

0-RING - gland

1шт.

Part of Seal Kit, P/N G32293

1шт.

11

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

- gland "0" ring back-up

1шт.

Part of Seal Kit, P/N G32293

1шт.

12

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (#8-32 x 1/4" self-tapping)

1шт.

13

D49300

ROD ASSY.

ROD ASSEMBLY - piston, 2" dia. (50 mm), Includes: Ref. 14 and 15

1шт.

14

L12570

BUSHING

- piston rod (self aligning)

1шт.

15

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - retaining, bushing

2шт.

16

D28368

PISTON

- split (Rod end)

1шт.

17

D28367

PISTON

- split (bolt end)

1шт.

18

D47203

PACKING,76.07mm ID x 88.77mm OD x 29.18mm Thk

ASSY. - piston ("V" type)

2шт.

Part of Seal Kit, P/N G32293

1шт.

19

D47208

RING

- center bearing

1шт.

20

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

Piston Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

21

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease (1/8" P.T. str.)

2шт.

G32293

SEAL

KIT - cylinder repair, Includes: Ref. 7 - 11 and 18

1шт.

G100778

SEAL

- piston rod (Service option, external heat or cold)

1шт.
