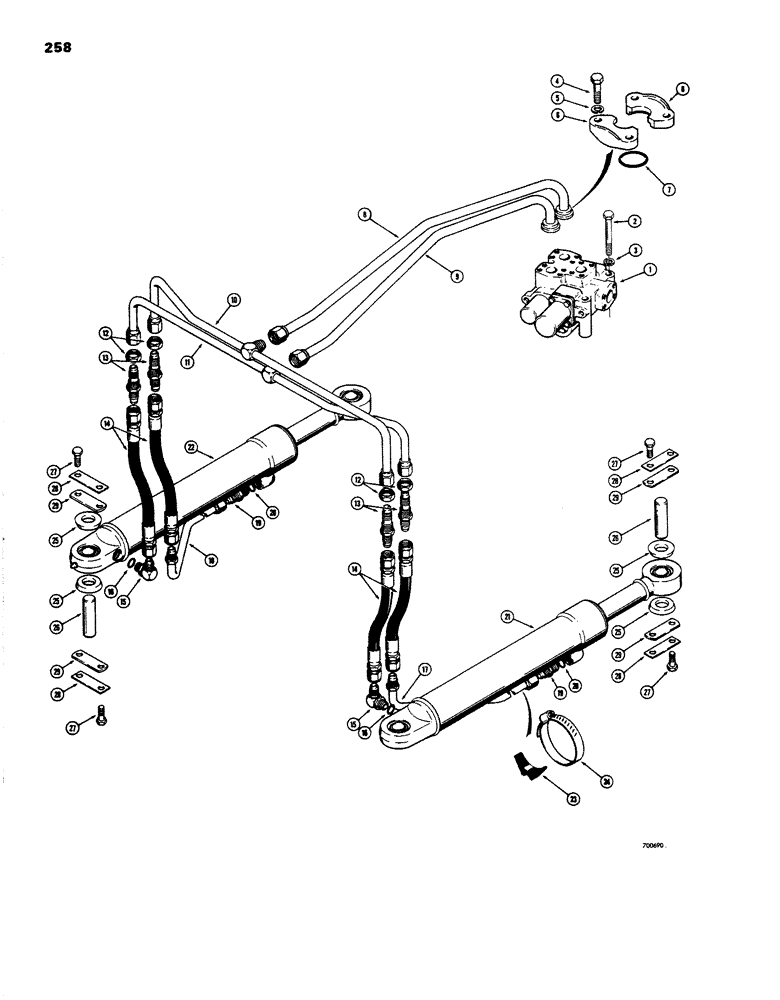

Запчасти Case W26B (258) - STEERING CYLINDER HYDRAULIC CIRCUIT (05) - STEERING

1

L42822

LOCK VALVE

VALVE - steering control (Parts list figure 260)

1шт.

2

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

A12306

FLANGE

- split (1")

4шт.

7

F13297

HARDWARE

SEAL - "O" ring

2шт.

8

L40224

TUBE

- valve to manifold (Left turn)

1шт.

9

L40241

TUBE - valve to manifold (Right turn)

1шт.

10

L40204

MANIFOLD

TUBE - manifold, left turn steering

1шт.

11

L40201

MANIFOLD

TUBE - manifold, right turn steering

1шт.

12

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex., jam (7/8" - 14 NF)

1шт.

13

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

4шт.

14

L40244

HOSE

- to steering cylinders, 15-1/2" long (393 mm)

4шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees, Incl. Ref. 16

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

L40260

TUBE - hose to R.H. steering cylinder, rod end

1шт.

18

L40257

TUBE

- hose to L.H. steering cylinder, rod end

1шт.

19

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, straight, Includes: Ref. 20

2шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

21

REF

INSTRUCTION

CYLINDER - steering, R.H. See figures 264 thru 270 for proper cylinder

1шт.

22

REF

INSTRUCTION

CYLINDER - steering, L.H. See figures 264 thru 270 for proper cylinder

1шт.

23

D38648

BLOCK

SADDLE - clamp, Serial Range: tube-cylinder

2шт.

24

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

25

L12553

SPACER

- mounting, cylinder pin

8шт.

26

L12573

PIN

- mounting, steering cylinder

4шт.

27

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

16шт.

28

L12578

LOCK ASSY

LOCK - retainer bolt

8шт.

29

L12577

RETAINER

- cylinder pin

8шт.
