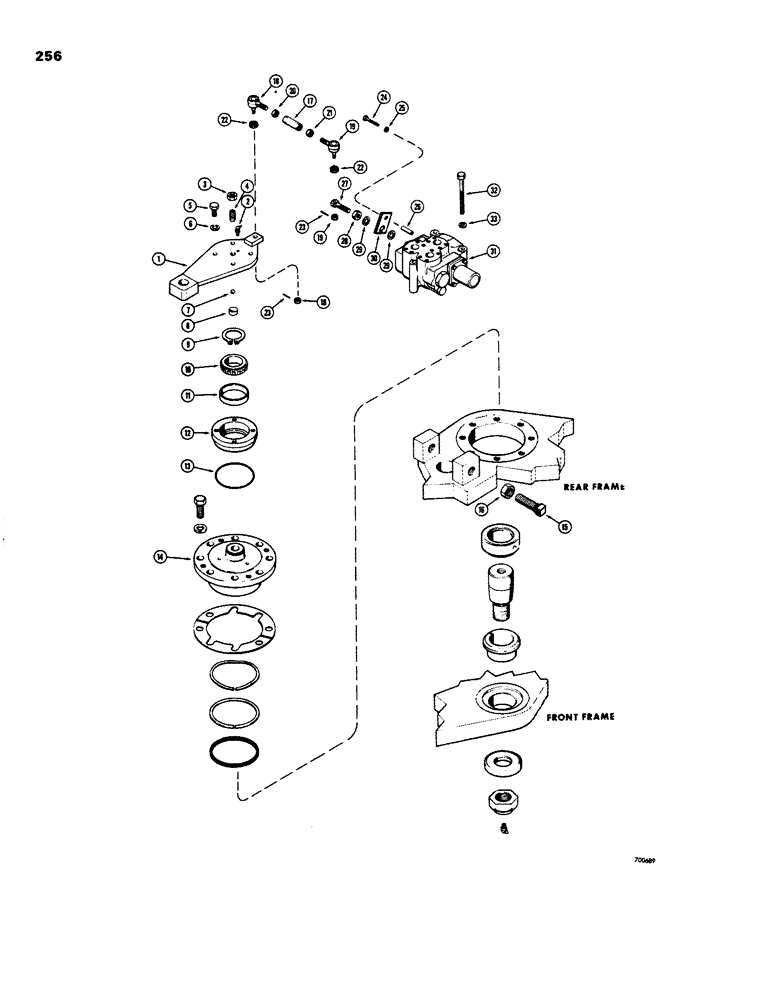

Запчасти Case W26B (256) - STEERING LINKAGE AND CONTROL VALVE (05) - STEERING

1

L40310

LEVER

- intermediate steering

1шт.

2

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

3

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex., jam (5/8" - 11 NC)

1шт.

4

83-1020

SET SCREW,Hex Soc, 5/8"-11 x 1 1/4"

SCREW - set, hex. socket head (5/8" - 11 NC X 1-1/4")

1шт.

5

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

7

211-13

BALL,1/2" Dia

- thrust 1/2" Dia

1шт.

8

A28313

SEAT

SOCKET - thrust ball

1шт.

9

F40807

SNAP RING,#225, Ext

Ring, Snap, #225, Ext

1шт.

10

A30494

CONE

- bearing

1шт.

11

A50179

BEARING CUP

CUP - bearing

1шт.

12

L12521

HUB - intermediate steering lever

1шт.

13

L12523

GASKET

SEAL - "O" ring

1шт.

14

L12864

PIN

- pivot, rear frame (See figure 272 for complete front to rear frame coupling parts)

1шт.

15

181-762

SCREW,Sq Hd, 1" - 8 x 3 1/2"

- set, square head (1" - NC x 3-1/2")

2шт.

16

25-1416

NUT,Jam, 1"-8, G5

- hex., jam (1" - 8 NC)

2шт.

17

L12527

TURNBUCKLE

- link adjusting

1шт.

18

L12525

O-RING

BALLJOINT - steering link (R.H.)

1шт.

19

L12526

O-RING

BALLJOINT - steering link (L.H.)

1шт.

20

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF) R.H. thread

1шт.

21

129-376

NUT,Jam, 1/2"-20, G5, LH

- hex., jam (1/2" - 20 NF) L.H. thread

1шт.

22

L12528

SEAL

- dust, ball end

2шт.

23

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

24

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

25

92-6

LOCK WASHER,3/8"

1шт.

26

L16320

TUBE - spool guide, steering valve 0.5" OD x 1.62" L

1шт.

27

L16318

EYE - steering link

1шт.

28

25-1512

JAM NUT,Jam, 3/4"-10, G5

- hex., jam (3/4" - 16 NF)

1шт.

29

193-35

LOCK WASHER,Int Tooth, 3/4"

WASHER, LOCK, Int Tooth, 3/4"

2шт.

30

L16319

PLATE - spool guide

1шт.

31

L42822

LOCK VALVE

VALVE - steering control (Parts list figure 260)

1шт.

32

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

3шт.

33

92-8

LOCK WASHER,1/2"

3шт.
