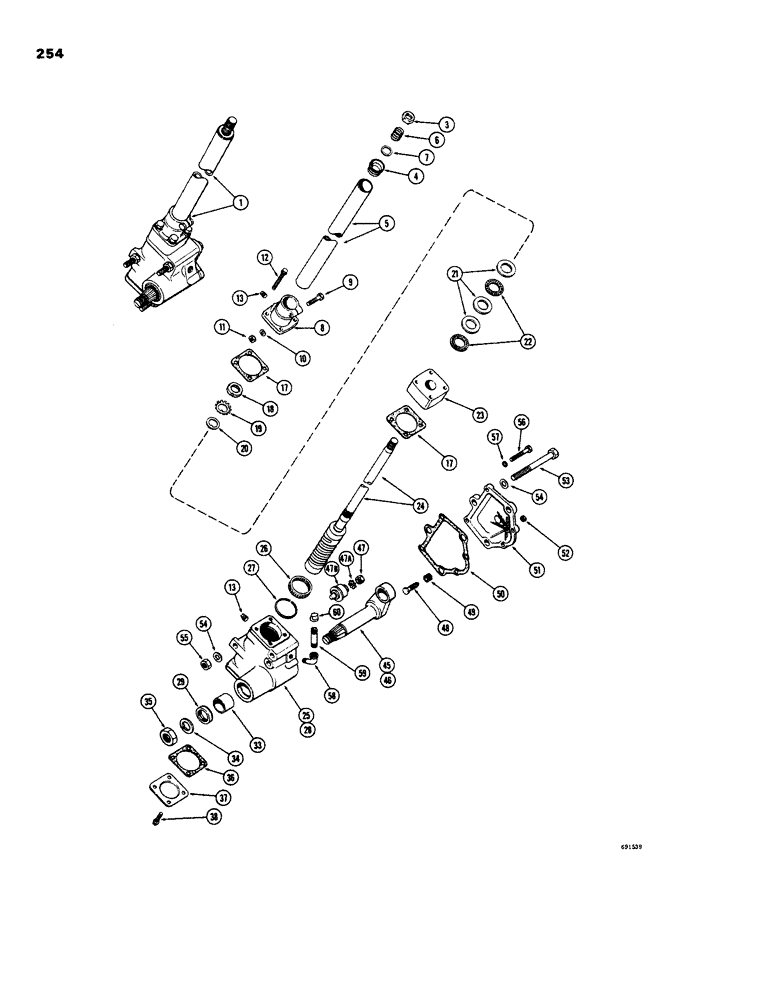

Запчасти Case W26B (254) - L19811 STEERING GEAR (05) - STEERING

1

L19811

GEAR

ASSEMBLY - steering, Includes: Ref. 3 - 57

1шт.

3

A13073

NUT

- wheel

1шт.

L32488

SLEEVE CYLINDER

TUBE ASSEMBLY - jacket, Includes: Ref. 4 and 5

1шт.

4

A14941

BUSHING

BEARING - jacket tube

1шт.

5

NSS

NOT SOLD SEPARAT

TUBE - jacket

1шт.

6

L31558

SPRING

1шт.

7

L31557

WASHER

1шт.

8

L31554

COVER ASSY

COVER - upper, lever shaft

1шт.

9

14-632

BOLT,Hex, 3/8" - 24 x 2", Gr 5

HHCS - 3/8" - 24 NF x 2"

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

1шт.

12

L31560

SCREW

- housing

4шт.

13

221-1031

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

3шт.

17

L31563

GASKET

- seperator housing

2шт.

18

131-1006

TUBE NUT

LOCKNUT - special, cam tube

1шт.

19

L31567

WASHER

- lock, cam tube

1шт.

20

NLS

NO LONGER SERVICED

- special tongued, cam tube

1шт.

21

L31564

WASHER

- thrust, cam tube

3шт.

22

F51467

THRUST BEARING

BEARING, Needle, Thrust, Cam tube

2шт.

23

L31559

SEPARATOR - steering gear housing

1шт.

24

L32489

TUBE

CAM AND TUBE ASSEMBLY - steering gear

1шт.

25

L31544

HOUSING ASSEMBLY - steering gear, Includes: Ref. 26 - 29

1шт.

26

A13083

NEEDLE BEARING,Needle, 50.8mm ID x 60.33mm OD x 12.7mm W

BEARING - steering gear cam

2шт.

27

A13082

RING

- retaining, steering gear bearing

2шт.

28

NSS

NOT SOLD SEPARAT

HOUSING - steering gear

1шт.

29

A13081

OIL RESERVOIR

SEAL - oil, steering gear housing

1шт.

33

A13048

BUSHING

- Steering gear housing

2шт.

34

92-18

LOCK WASHER,1 1/8"

1 1/8"

1шт.

35

25-1518

JAM NUT,Jam, 1 1/8"-12, G5

- hex. (1-1/8" - 12 NF)

1шт.

36

L31569

GASKET

- end cover

1шт.

37

L31568

COVER - end, steering gear

1шт.

38

L30404

CAPTIVE WASHER SCREW,Hex, 3/8" - 16 x 2"

BOLT - end cover

4шт.

45

L31548

SHAFT

LEVERSHAFT ASSEMBLY - steering gear, Includes: Ref. 46 - 49

1шт.

46

NSS

NOT SOLD SEPARAT

LEVERSHAFT - steering gear

1шт.

L31550

BEARING ASSY

ASSEMBLY - levershaft, Includes: Ref. 47 - 47B

1шт.

47

A72010

NUT

- special

1шт.

47a

L32486

WASHER

- special

1шт.

47b

NSS

NOT SOLD SEPARAT

BEARING - levershaft

1шт.

48

L31551

SCREW,1/2" - 20

- adjusting, levershaft

1шт.

49

L31552

RETAINER

- adjusting screw, lever shaft

1шт.

50

L31570

GASKET

- side cover, steering gear

1шт.

51

L31553

COVER ASSY

COVER - side, levershaft

1шт.

52

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex., jam (1/2" - 20 NF)

1шт.

53

L31561

BOLT -, Serial Range: housing-tractor

3шт.

54

L31562

WASHER

- housing bolt

6шт.

55

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex. (5/8" - 18 NF)

3шт.

56

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

4шт.

57

F19626

WASHER - plain, housing, Serial Range: cover-separator

4шт.

58

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degrees (3/8" NPT)

1шт.

59

221-1165

JUNCTION

NIPPLE - pipe (3/8" NPT x 2-1/2")

1шт.

60

221-1524

CAP,3/8" NPT

- pipe () 3/8" NPT

1шт.
