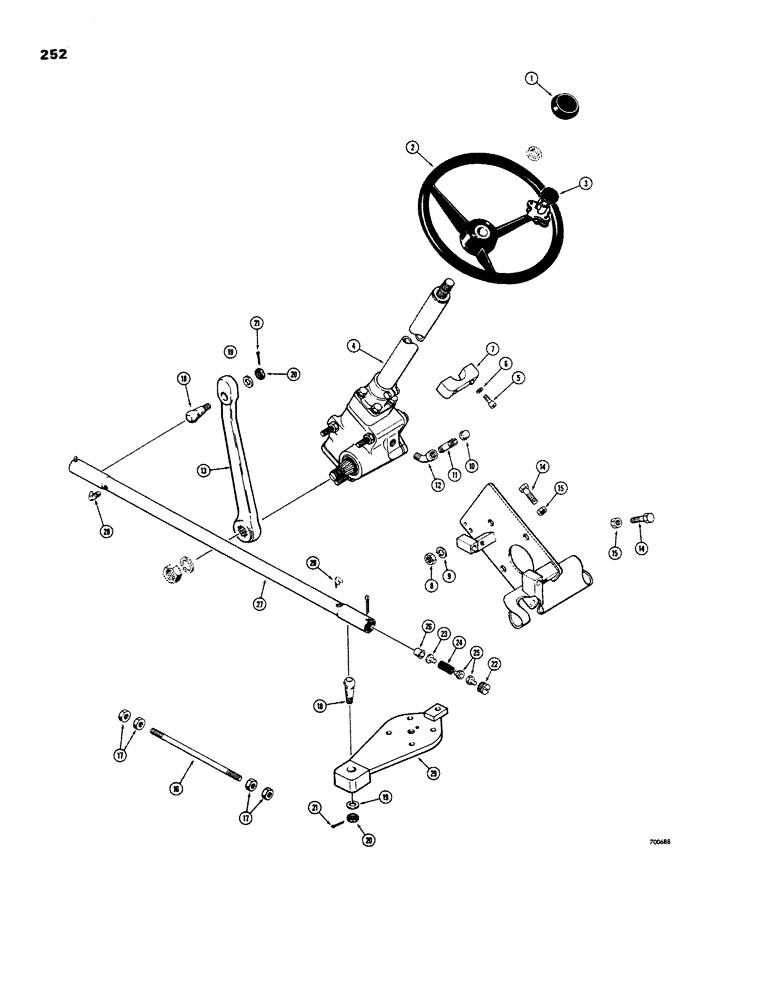

Запчасти Case W26B (252) - STEERING GEAR AND LINKAGE (05) - STEERING

1

L18519

CAP

- steering wheel

1шт.

2

L43572

RIM

WHEEL - steering

1шт.

3

L16109

BUTTON

SPINNER - steering wheel

1шт.

4

L19811

GEAR

- steering (Parts list figure 254)

1шт.

5

61-624

HEX SOC SCREW,3/8"-16 x 1 1/2"

CAP SCREW - hex. socket head (3/8" - 16 NC x 1-1/2")

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

L12512

CLAMP - steering column to front frame

1шт.

8

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - hex., jam (5/8" - 18 NF)

3шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

10

221-1524

CAP,3/8" NPT

- pipe () 3/8" NPT

1шт.

11

221-1165

JUNCTION

NIPPLE - pipe (3/8" NPT x 2-1/2" long)

1шт.

12

221-1403

ELBOW,45 Degree, 3/8"-18, NPT

- street, 45 degrees (3/8" NPT)

1шт.

13

L26790

ARM

- pitman, at steering gear

1шт.

14

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(Steering arm stop) Hex, 1/2"-13 x 2", G5

2шт.

15

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC), Steering arm stop bolt

2шт.

16

L12305

STUD - mounting, steering, Serial Range: gear-plate

1шт.

17

25-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam (1/2"-13 NC)

4шт.

18

L26754

STUD

- steering link

2шт.

19

95-10

WASHER,5/8"

- plain () 5/8"

2шт.

20

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. slotted (5/8" - 18 NF)

2шт.

21

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

2шт.

L43031

LINK

ASSEMBLY - pitman arm to intermediate steering lever, Includes: Ref. 22 - 27

1шт.

22

L32687

PLUG

- end, adjusting

2шт.

23

L32686

PLUG

SEAT - spring

2шт.

24

L32685

VALVE SPRING

SPRING - tension, ball

2шт.

25

L32684

SEAT

- ball retaining

4шт.

26

NSS

NOT SOLD SEPARAT

RESERVOIR - link

2шт.

27

NSS

NOT SOLD SEPARAT

LINK - pitman, Serial Range: arm-lever

1шт.

28

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

29

L40310

LEVER

- intermediate steering

1шт.
