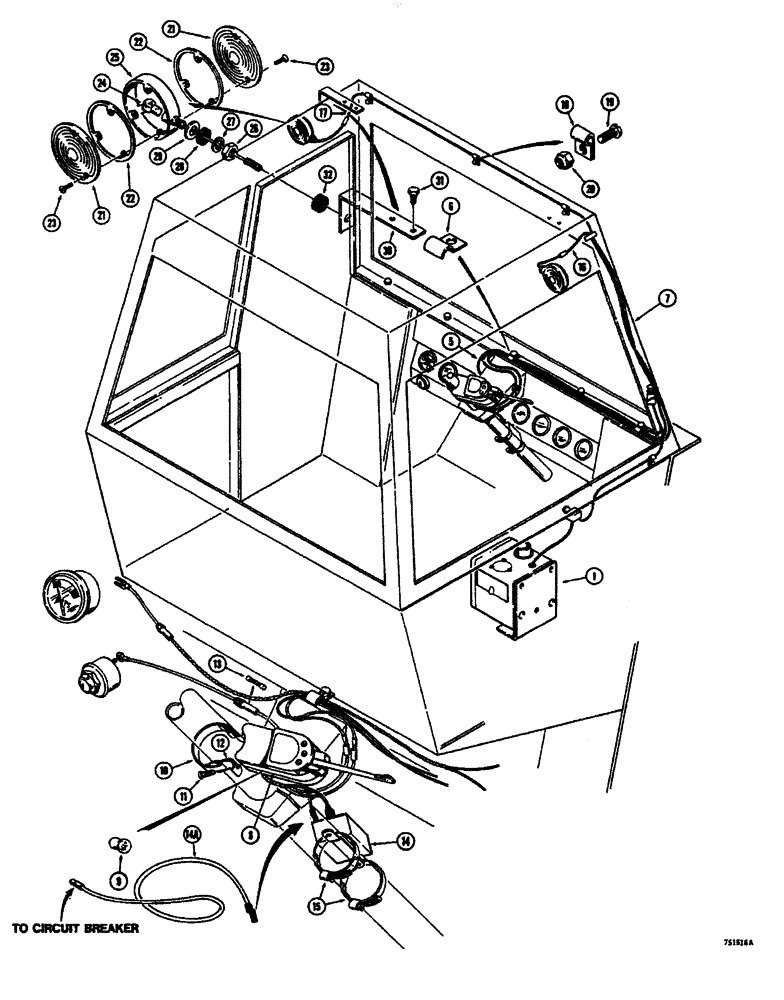

Запчасти Case W26B (324) - TURN SIGNALS AND FLASHERS LATE PRODUCTION (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HEATER AND DEFROSTER - cab (See figure 320 for heater and related parts)

1шт.

5

REF

INSTRUCTION

HARNESS - wiring, heater and wiper (See figure 322 ref. No. 19 for proper harness

1шт.

6

A22880

CLIP

- harness

1шт.

7

REF

INSTRUCTION

CAB - operator's (Machinery item) Used on models without roll over protection canopy (See figure 322 for variations)

1шт.

7

REF

INSTRUCTION

CAB - operator's (Machinery item) Used on models with rollover protection canopy (See figure 326 and 328 for variations)

1шт.

L59394

SIGNAL

- turn and flasher (Use L73667 signal and L73672 wire), Includes: Ref. 8 - 14

1шт.

L73667

SIGNAL

- turn and flasher (Used with L73672 wire), Includes: Ref. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

9

A14928

BULB

- 24 volt. #356

1шт.

10

L32658

STRAP

- mounting, signal

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes: Ref. 11 and 12

1шт.

11

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine (#8 -32 NC x 1")

2шт.

12

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

13

223-6

FUSE,6 Amp, Type 3AG

- 6 amp., 3AG

1шт.

14

L59781

FLASHER UNIT

FLASHER - signal

1шт.

14a

L73672

ELECTRICAL WIRE

WIRE - to circuit breaker (Used with L73667 switch)

1шт.

15

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- signal mounting #28, 1.31/2.25 Type F Worm

2шт.

16

L17326

WIRE HARNESS

WIRE ASSEMBLY - signal to flasher (R.H.)

1шт.

17

L17325

WIRE - signal to flasher LH

1шт.

18

L18299

CLAMP

- wire

3шт.

19

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

RHMS - #10 - 24 NC x 1/2" (If used)

3шт.

19

187-1507

SELF-TAP SCREW,Hex Hd, #10 x 3/8"

SCREW - self tapping (#10 - 24 NC x 3/8") If used (Not shown)

3шт.

20

86625057

NUT,#10-24, GB

NUT, LOCK, (Used with 173-212 screw only) #10-24, GB

3шт.

L17324

LAMP

LIGHT - flasher, double face (When stock is exhausted, order L43738 light for service), Includes: Ref. 21 - 29

2шт.

L43738

INTERIOR LIGHT

LIGHT - flasher, double face, Includes: Ref. 21 - 29

2шт.

L32214

LENS

KIT - light, flasher, Includes: Ref. 21 - 23

2шт.

21

NSS

NOT SOLD SEPARAT

LENS - light, flasher

1шт.

22

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

24

L32257

BULB

- flasher light, #307

1шт.

25

NSS

NOT SOLD SEPARAT

BODY - light, flasher (Double face)

1шт.

26

129-125

NUT,1/2"-20, G5

1шт.

27

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

28

L32256

WASHER

- rubber

1шт.

29

195-105

WASHER,7/16"

- standard wrot (Zinc plated)

1шт.

30

L51178

BRACKET - flasher mounting (If used)

2шт.

31

187-1520

SCREW,Hex Hd, 3/8" x 5/8"

- self-tapping (3/8" - 16 NC) Bracket to cab

4шт.

32

D45994

GROMMET,3/16" ID x 5/16" Groove Dia

- rubber (If used)

2шт.
