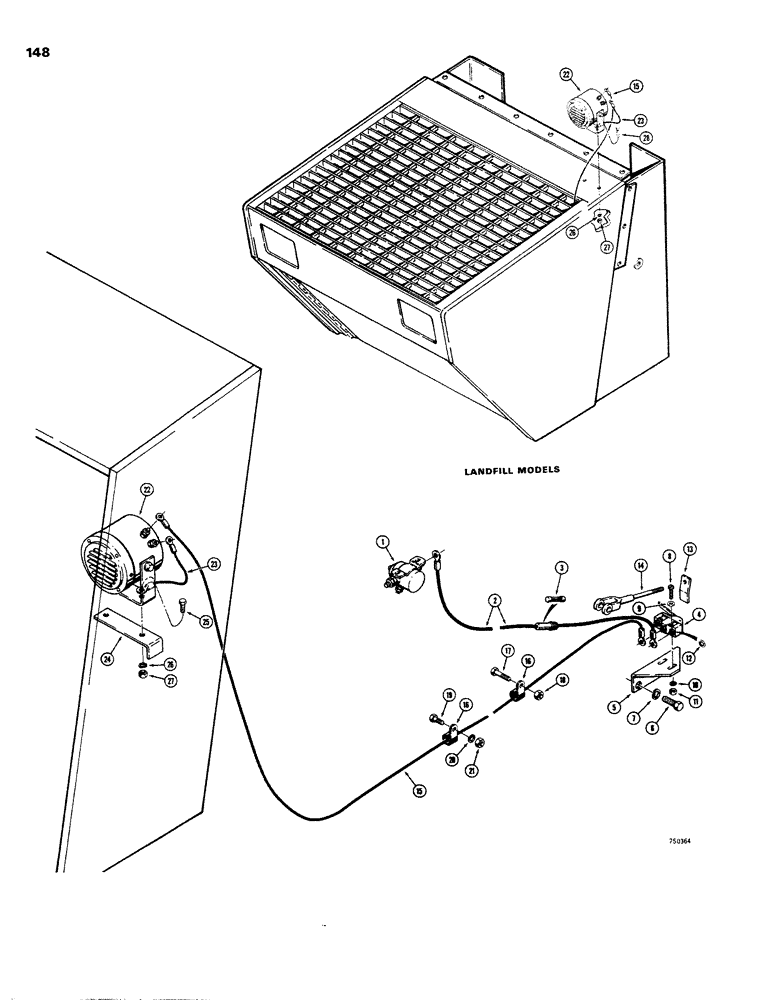

Запчасти Case W26B (148) - BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

L74196

SOLENOID

- engine starter (See figure 82 for related parts), Replaces D31479

1шт.

2

L57475

ELECTRICAL WIRE

WIRE - solenoid to backup switch

1шт.

3

223-10

FUSE,10 Amp, Type 3AG

- 10 amp

1шт.

4

L11349

SWITCH

- micro, backup alarm

1шт.

5

L57560

BRACKET - switch mounting

1шт.

6

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

HHCS - 5/8" - 18 NC x 1"

2шт.

7

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

8

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

- pan head slotted, #6 - 32 NC x 1-1/4"

2шт.

9

195-7

WASHER,#6

- flat, #6

2шт.

10

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

11

129-5

NUT,#6-32

2шт.

12

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

2шт.

13

L57559

TAB - switch actuating

1шт.

14

L57558

ROD

- connecting transmission shift (See figure 144 for related parts)

1шт.

15

L57578

WIRE -, Serial Range: switch-alarm

1шт.

16

80049853

YOKE

- wire

2шт.

17

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

18

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex, jam (3/8" - 16 NC)

1шт.

19

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

22

L70498

ALARM

- backup

1шт.

23

L59563

ELECTRICAL WIRE

WIRE - ground

1шт.

24

L57564

BRACKET - backup alarm mounting (W26B only)

1шт.

25

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(W26B only) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

2шт.

27

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

2шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (W26LF only)

2шт.
