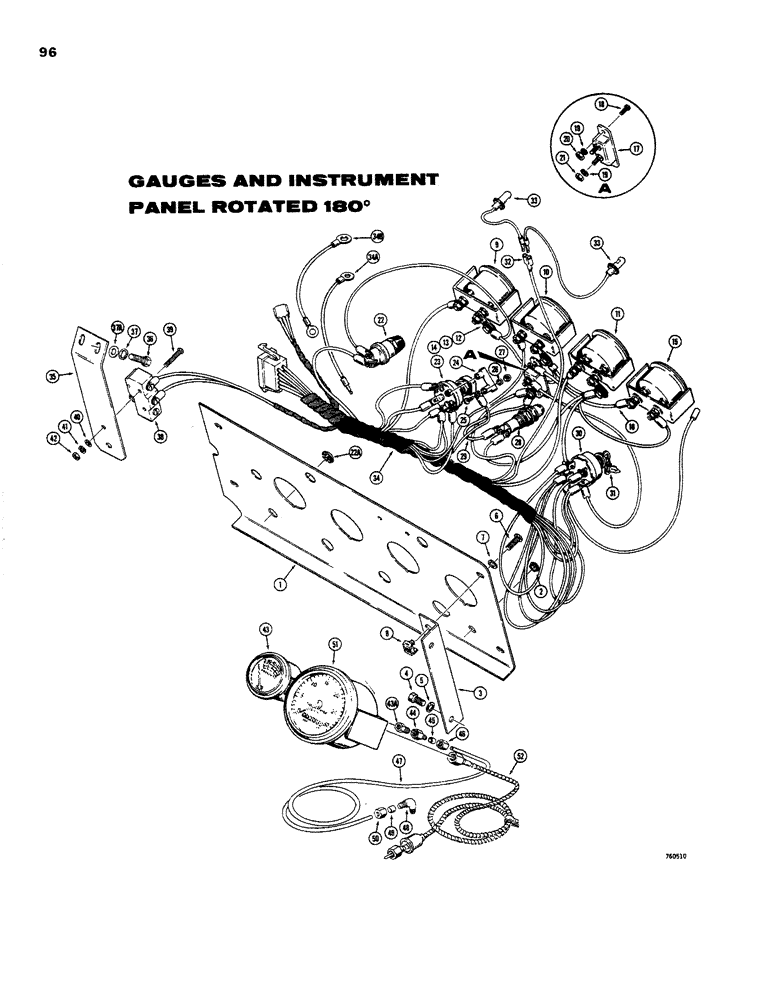

Запчасти Case W26B (096) - INSTRUMENT PANEL (LEFT HAND SIDE) (04) - ELECTRICAL SYSTEMS

1

L17771

PANEL

- instrument, L.H.

1шт.

2

L18398

HOLE PLUG BUTTON,13/32"

PLUG - hole, instrument panel

1шт.

3

L13286

ANGLE - mounting, instrument panel

1шт.

4

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

175-405

SCREW,Phil Truss Hd, 1/2" - 20 x 1/2"

- machine, truss head (1/4" - 20 NC x 1/2")

2шт.

7

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, internal Shakeproof (1/4")

2шт.

8

L13233

NUT - Tinnerman (1/4" - 20 NC)

2шт.

9

A19345

ELECTRICAL GAUGE

GAUGE - fuel level

1шт.

10

A19347

ELECTRICAL GAUGE

GAUGE - termperature, engine water

1шт.

11

A19346

ELECTRICAL GAUGE

GAUGE - pressure, engine oil

1шт.

12

A19349

RESISTOR

- gauge, 75 ohm

3шт.

13

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

3шт.

14

129-37

NUT,#10-32

3шт.

15

L13279

METER

GAUGE - voltmeter

1шт.

16

A18311

ELECTRICAL WIRE

WIRE - ground, voltmeter

1шт.

17

A22877

BREAKER,40A

- circuit

1шт.

18

173-95

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

- machine, round head (#10 - 24 NC x 3/8")

2шт.

19

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

20

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

2шт.

21

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

2шт.

22

L72776

SWITCH

- manifold heater or ether injection

1шт.

22a

353-406

PLUG,Dome, .625" hole, Nylon

- button (If used)

1шт.

23

L10376

SWITCH

- light

1шт.

24

A14900

RESISTOR

- light switch

1шт.

25

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- machine, round head (#6 - 32 NC x 1/2")

1шт.

26

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

1шт.

27

129-15

NUT,#6-32

1шт.

28

L13282

LAMP BASE

LIGHT - ignition indicator (Parts list figure 92)

1шт.

29

L13283

ELECTRICAL WIRE

WIRE - ground, indicator light

1шт.

30

L17820

SWITCH

- ignition, Includes: Ref. 31

1шт.

31

A20346

KEY

- ignition

1шт.

32

A8210

CONNECTOR, ELEC

CONNECTOR - harness to panel lights

1шт.

33

L13275

LAMP

LIGHT - instrument panel (Parts list figure 92)

2шт.

34

L73003

HARNESS

- wiring, instrument panel (L.H.)

1шт.

34a

A18112

ELECTRICAL WIRE

WIRE - harness to cold start switch

1шт.

34b

A13755

WIRE - switch to fuel level gauge

1шт.

35

L12481

BRACKET - mounting, neutral start switch

1шт.

36

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

37

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37a

95-4

WASHER,1/4"

- plain () 1/4"

2шт.

38

L54683

SWITCH

- neutral start

1шт.

39

182-50

SCREW,Sl Pan Hd, #6 - 32 x 1"

- machine, pan head (#6 - 32 NC x 1")

2шт.

40

195-507

WASHER,#6

- plain () Zinc plated #6

2шт.

41

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

42

129-15

NUT,#6-32

2шт.

43

L51456

GAUGE

- fuel pressure (If used)

1шт.

43a

A28061

FITTING

SNUBBER - fuel pressure gauge (If used)

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - straight, flex tube (If used), Includes: Ref. 44 - 46

1шт.

44

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

45

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

46

222-5058

NUT,3/8"-24

NUT - connector

1шт.

47

L45912

TUBE,62" L

- fuel pressure gauge (If used)

1шт.

222-5021

ELBOW UNION,90 Degree, 3/8"-24 x 1/8" NPT, Hi-seal

ELBOW ASSEMBLY - 90 degrees, flex tube (If used), Includes: Ref. 48 - 50

1шт.

48

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

49

222-5045

SLEEVE,1/8" Tube

- elbow

1шт.

50

222-5058

NUT,3/8"-24

NUT - elbow

1шт.

51

L13316

ELECTRICAL GAUGE

TACHOMETER - engine (Includes hourmeter)

1шт.

52

R29332

FLEXIBLE DRIVE SHAFT

SHAFT - tachometer drive, flexible

1шт.
