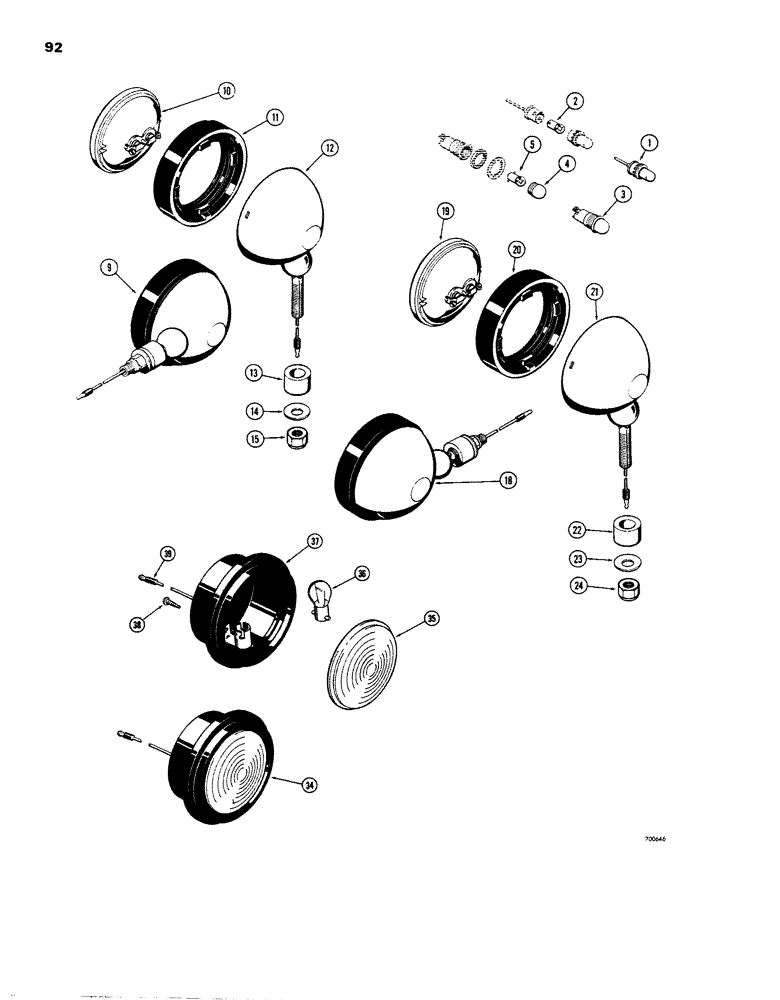

Запчасти Case W26B (092) - LIGHTING EQUIPMENT, INSTRUMENT PANEL LIGHT (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
L13275
LAMP
LIGHT ASSEMBLY - panel, instrument (24 volt), Includes: Ref. 2
4шт.
2
A14928
BULB
- 24 volt. #356
1шт.
3
L13282
LAMP BASE
LIGHT ASSEMBLY - indicator, ignition, Includes: Ref. 4 and 5
1шт.
4
L31223
LENS
- light, green, ignition indicator light
1шт.
5
P0732978Q
SCREW
BULB - light, 24 volt, #1843, ignition indicator light
1шт.
9
L13291
LAMP
LIGHT ASSEMBLY - head, front (Painted yellow), Includes: Ref. 10 - 15
2шт.
9
L71729
LAMP
LIGHT ASSEMBLY - head, front (Painted black), Includes: Ref. 10 - 15
2шт.
10
A25209
LAMP
LIGHT - 24 volt, front head
1шт.
11
A25210
MOUNTING PARTS
RETAINER - light, front head
1шт.
12
NSS
NOT SOLD SEPARAT
SHELL ASSEMBLY - light, front head
1шт.
13
D37048
BUSHING
- pivot, light, front head
1шт.
14
D37049
WASHER
- mounting, front headlight
1шт.
15
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - hex, elastic, light mounting, (1/2" NF), front head
1шт.
18
L13292
INTERIOR LIGHT
LIGHT ASSEMBLY - flood, front (Painted yellow), rear, Includes: Ref. 19 - 24
4шт.
18
L71730
INTERIOR LIGHT
LIGHT ASSEMBLY - flood, front (Painted black), rear, Includes: Ref. 19 - 24
4шт.
19
D37920
LAMP
LIGHT - 24 volt, front and rear flood
1шт.
20
A25210
MOUNTING PARTS
RETAINER - light, front and rear flood
1шт.
21
NSS
NOT SOLD SEPARAT
SHELL ASSEMBLY - light, front and rear flood
1шт.
22
D37048
BUSHING
- pivot, light, front and rear flood
1шт.
23
D37049
WASHER
- mounting, front and rear flood light
1шт.
24
131-9
LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B
NUT - hex, elastic, light mounting (1/2" NF), front and rear flood
1шт.
34
L44099
INTERIOR LIGHT
LIGHT ASSEMBLY - tail, 24 volt, Includes: Ref. 35 - 39
2шт.
35
L32852
LENS
- tail light
1шт.
37
NSS
NOT SOLD SEPARAT
BODY ASSEMBLY - light, tail
1шт.
39
L10051
TERMINAL CONNECTOR,Male
TERMINAL - bullet, , tail light Male
1шт.
Выбрано товаров: 27
