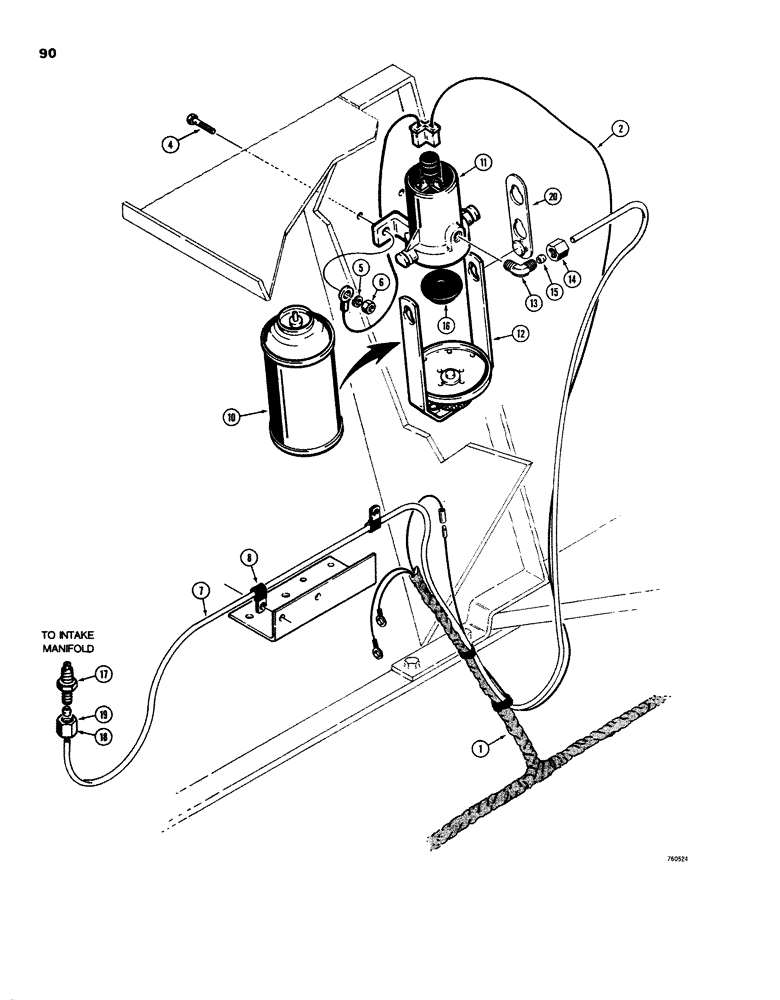

Запчасти Case W26B (090) - COLD STARTING SYSTEM, MODELS WITH BAND CLAMPED CYLINDER, LATE PRODUCTION (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HARNESS - rear (See figure 82 for related parts)

1шт.

2

L73023

ELECTRICAL WIRE

WIRE -, Serial Range: harness-solenoid

1шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex., 5/16" - 18 NC

2шт.

7

D35090

TUBE

- cold start

1шт.

8

49853

TOOL

- tube

3шт.

10

B17072

START SPRAY FLUID

FLUID - ether, cold start

1шт.

L73025

STARTING MOTOR

SOLENOID ASSEMBLY - 24V, Includes: Ref. 11 - 16

1шт.

11

NSS

NOT SOLD SEPARAT

SOLENOID

1шт.

12

D77648

BAIL

1шт.

13

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

Special 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

14

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

15

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

16

R30786

GASKET

1шт.

L73024

NOZZLE CAP

NOZZLE ASSEMBLY, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

NOZZLE

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT - compression

1шт.

19

222-100

TUBE NUT,1/8" Tube

SLEEVE - compression

1шт.

20

R30812

LINK

- bail

1шт.
