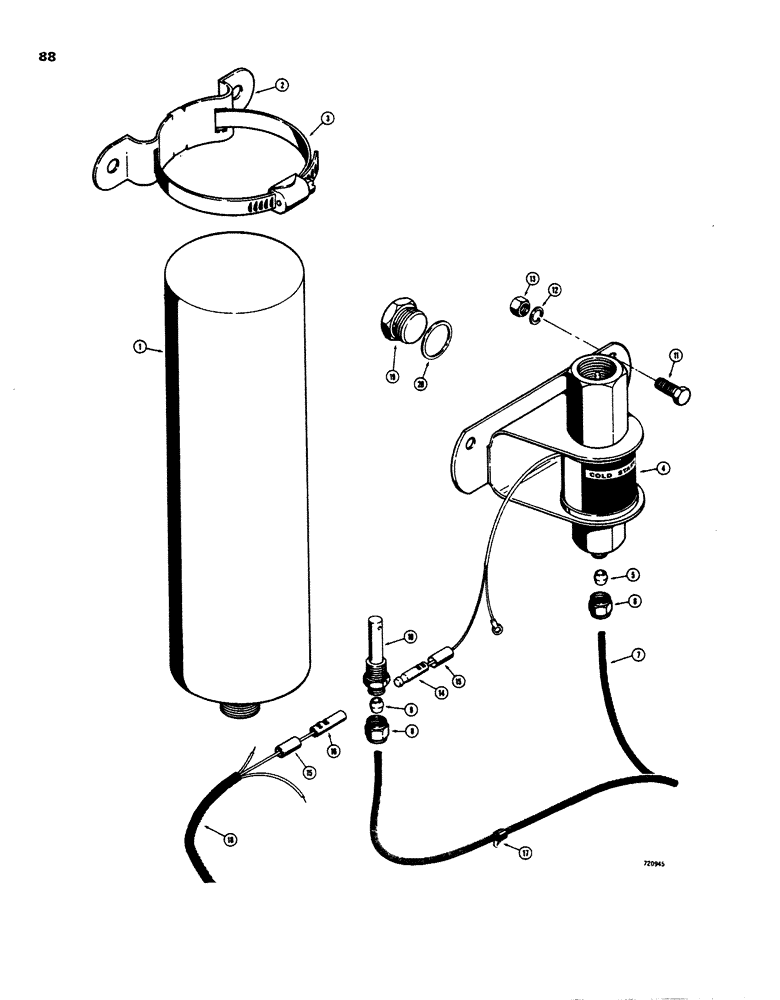

Запчасти Case W26B (088) - COLD STARTING SYSTEM, MODELS WITH BAND CLAMPED CYLINDERS, EARLY PRODUCTION (04) - ELECTRICAL SYSTEMS

L53196

START SPRAY FLUID

KIT - cold starting aid, Includes: Ref. 1 - 10

1шт.

1

D55767

CYLINDER

- ether

1шт.

2

D55949

BRACKET

- clamp mounting

1шт.

3

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - tank retaining

1шт.

4

L35280

VALVE

ASSEMBLY - actuator, Includes: Ref. 5 and 6

1шт.

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

NSS

NOT SOLD SEPARAT

BRACKET ASSEMBLY - valve mounting

1шт.

NSS

NOT SOLD SEPARAT

COVER - coil housing

2шт.

NSS

NOT SOLD SEPARAT

COIL - magnetic

1шт.

NSS

NOT SOLD SEPARAT

HOUSING - coil

1шт.

NSS

NOT SOLD SEPARAT

ARMATURE - valve

1шт.

NSS

NOT SOLD SEPARAT

WASHER - seal

1шт.

NSS

NOT SOLD SEPARAT

FITTING - retainer

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

Flex (NPT brass) 1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- flex tube (1/8" NPT brass) 5/16"-24, 45º Fl, Comp

1шт.

L35283

PACKAGE, REPAIR

SEAL KIT - overhaul repair

1шт.

NSS

NOT SOLD SEPARAT

SEAL - cylinde to valve, 13/16" I.D. (20 mm)

1шт.

NSS

NOT SOLD SEPARAT

SEAL - armature, 9/32" I.D. (7 mm)

1шт.

NSS

NOT SOLD SEPARAT

SEAL - retainer fitting, 3/4" I.D. (19 mm)

1шт.

NSS

NOT SOLD SEPARAT

WASHER - bumper, retainer fitting

1шт.

7

L35281

TUBE,0.125" OD x 60" L

- nylon. 1/8" O.D. x 60" long (3 mm I.D. x 1524 mm)

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

- flex tube (1/8" NPT brass) 5/16"-24, 45º Fl, Comp

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Flex (NPT brass) 1/8" Tube, Comp

1шт.

10

L35282

JET

NOZZLE - manifold

1шт.

11

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

12

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

13

25-104

NUT,1/4"-20, G5

4шт.

14

L11778

CONNECTOR, ELEC

CONNECTOR - male bullet

1шт.

15

L11779

TUBE,0.187" ID x 0.187" OD x 1" L

INSULATOR - connector

2шт.

16

L13437

CONNECTOR - female bullet

1шт.

17

80049853

YOKE

- wiring

2шт.

18

REF

INSTRUCTION

HARNESS - rear (See figures 82 and 84 for related parts)

1шт.

19

A20917

PLUG

- manifold heater hole (1-1/8" - 12 NF)

1шт.

20

A20916

MANIFOLD GASKET

WASHER - plug

1шт.
