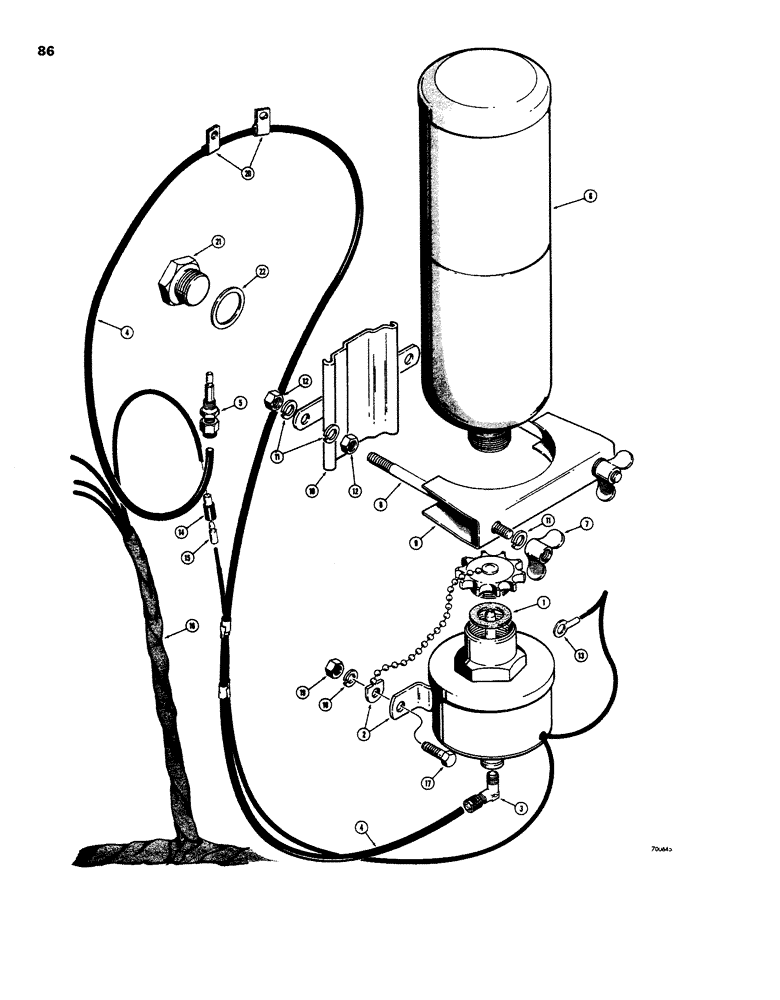

Запчасти Case W26B (086) - COLD STARTING SYSTEM, MODELS WITH SADDLE CLAMPED CYLINDERS (04) - ELECTRICAL SYSTEMS

1

L30188

GASKET

- cap, body cover

1шт.

2

L31773

VALVE

- metering, 24 volt

1шт.

3

T39541

ELBOW

- tube to metering valve

1шт.

4

L31774

TUBE

- metering, Serial Range: valve-nozzle

1шт.

5

L30185

FITTING

NOZZLE - manifold

1шт.

6

L30187

CYLINDER - cold start fluid

1шт.

L32710

BRACKET

AND CLAMP ASSEMBLY - cylinder support, Includes: Ref. 7 - 12

1шт.

7

129-419

WING NUT,5/16"-18

NUT - winged (5/16" - 18 NC) Zinc plated

2шт.

8

L32834

STUD

-, Serial Range: saddle-bracket

2шт.

9

L19084

SADDLE

- cylinder support

1шт.

10

L32836

FLANGE

BRACKET - saddle clamp

1шт.

11

92-5

LOCK WASHER,5/16"

6шт.

12

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

13

223-52

FUSE

TERMINAL - eyelet, ground wire

1шт.

14

223-83

SLEEVE

TERMINAL - sleeve, harness

1шт.

15

R18653

TERMINAL STRIP

CONNECTOR - bullet, male

1шт.

16

L40302

HARNESS

- electrical, rear wiring

1шт.

17

113-412

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/4" - 20 NC x 3/4"

2шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-104

NUT,1/4"-20, G5

2шт.

20

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- nozzle tube to bracket

2шт.

21

A20917

PLUG

- manifold heater (1-1/8" - 12 NF)

1шт.

22

A20916

MANIFOLD GASKET

WASHER - manifold heater plug

1шт.
