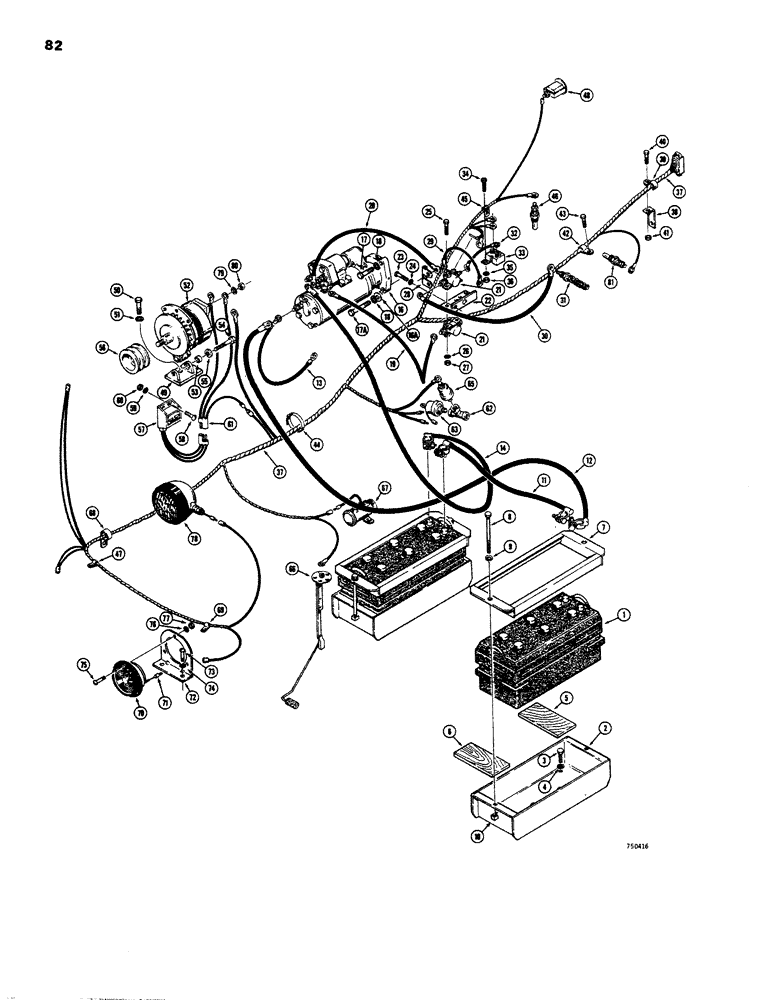

Запчасти Case W26B (082) - ELECTRICAL SYSTEM (REAR HARNESS) (04) - ELECTRICAL SYSTEMS

1

L13308

DRY BATTERY

- electrical, 12 volt (Service replacement)

2шт.

2

L40066

BOX - battery support

2шт.

3

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

8шт.

4

92-6

LOCK WASHER,3/8"

8шт.

5

L40274

SPACER - battery support

2шт.

6

L40275

SPACER - battery support

2шт.

7

L40069

FRAME - battery hold down

2шт.

8

13-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

131-133

NUT,Ret, 3/8"-16

Tinnerman Ret, 3/8"-16

4шт.

11

L40271

CABLE

- jumper (28" long)

1шт.

12

L40273

CABLE - ground, negative terminal to starter ground (92" long)

1шт.

13

L40793

ELECTRICAL WIRE

WIRE - starter ground to cooler base

1шт.

14

L40272

CABLE - positive terminal to starter solenoid (80" long)

1шт.

15

49838

CLAMP

- cable (Not illustrated)

4шт.

16

D42964

X

STARTER - engine, 24 volt (Parts list figures 74 and 76) R26137 starter and R24323 washer will be supplied for service

1шт.

16

R26137

STARTER MOTOR

STARTER - engine, 24 volt (Parts list figures 70 and 72)

1шт.

16a

R24323

WASHER

- special

3шт.

17

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(Upper mounting bolt) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

17a

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

(Lower mounting bolt) Hex, 1/2"-13 x 3 1/4", G5

1шт.

18

92-8

LOCK WASHER,1/2"

3шт.

19

L13300

ELECTRICAL WIRE

WIRE - starter solenoid to heater solenoid

1шт.

20

L14552

CABLE

- starter solenoid to heater solenoid

1шт.

21

L74196

SOLENOID

- engine starter

2шт.

22

L18684

BRACKET

- solenoid mounting

1шт.

23

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

92-5

LOCK WASHER,5/16"

2шт.

25

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

26

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

28

L17822

ELECTRICAL WIRE

WIRE - jumper, solenoid connecting

1шт.

29

A31060

ELECTRICAL WIRE

WIRE - solenoid ground

2шт.

30

L17831

WIRE HARNESS

CABLE - solenoid to manifold heater

1шт.

31

A34278

HEATER

- manifold

1шт.

32

L18690

WIRE - solenoid to circuit breaker

1шт.

33

L11343

BREAKER

CIRCUIT BREAKER - 60 amp.

1шт.

34

173-262

X

SCREW - machine, round head (#8 - 32 NC x 5/8") Zinc plated

2шт.

35

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

36

129-16

NUT,#8-32

2шт.

37

L40302

HARNESS

- wiring, rear

1шт.

38

L43052

SUPPORT - harness clamp

1шт.

39

L11553

MOUNTING CLIP

CLAMP - rear harness

1шт.

40

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

41

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

1шт.

42

49838

CLAMP

- harness

1шт.

43

113-136

HHCS - 5/16" - 18 NC x 5/8" (With Nylock insert)

1шт.

44

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - harness tie

3шт.

45

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- harness

1шт.

46

F13156

SENDER UNIT

SENDING UNIT - engine temperature

1шт.

47

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- harness

1шт.

48

L13298

ELECTRICAL GAUGE

HOURMETER - engine, 24 volt

1шт.

49

L18700

BRACKET

- alternator mounting

1шт.

50

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

51

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

52

A41360

ALTERNATOR

ASSEMBLY - 24 volt (Parts list figure 68)

1шт.

53

L18857

SPACER

- alternator bracket

1шт.

54

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

1шт.

55

92-6

LOCK WASHER,3/8"

1шт.

56

A41361

PULLEY

- alternator

1шт.

57

D41431

REGULATOR

- voltage. 24 volt (When stock is exhausted, order A75072 regulator for service)

1шт.

57

A75072

REGULATOR

- voltage. 24 volt

1шт.

58

169-98

SCREW - machine, slotted head (#10 - 24 NC x 9/16")

3шт.

59

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

60

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

3шт.

61

L17843

HARNESS

-, Serial Range: regulator-alternator

1шт.

62

221-690

3 WAY CONNECTION

TEE - pipe (1/8" NPT)

1шт.

63

D28798

SWITCH

- pressure, oil

1шт.

65

A35031

SENDER UNIT

SENDING UNIT - engine oil pressure

1шт.

66

L74166

SENSOR

SENDING UNIT - fuel gauge, Replaces L13302

1шт.

67

REF

INSTRUCTION

FUEL PUMP - engine (Parts list figure 282)

1шт.

68

R13931

CLAMP

- harness and battery cable

1шт.

69

A27814

X

CLAMP - rear light wiring

1шт.

70

L44099

INTERIOR LIGHT

LIGHT - stop and tail (Parts list figure 92) W26B only

2шт.

71

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - bullet (W26B only) Male

2шт.

72

L43245

BRACKET - light mounting (W26B only)

2шт.

73

173-212

SCREW,Sl Rnd Hd, #10 - 24 x 1/2"

- machine round head (#10 - 24 NC x 1/2") Zinc plated (W26B only)

4шт.

74

92-3

LOCK WASHER,#10

WASHER, LOCK, , W26B only #10

4шт.

75

173-205

X

SCREW - machine round head (#10 - 24 NC x 5/8") Zinc plated (W26B only)

6шт.

76

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, (W26B only) #10

6шт.

77

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated (W26B only)

6шт.

78

REF

INSTRUCTION

LIGHT - flood, rear (See figure 92)

2шт.

79

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, (Alternator terminal wire mounting) #10

3шт.

80

129-17

NUT,Hex, #10 - 24

NUT - hex. (#10 - 24 NC) Zinc plated (Alternator terminal wire mounting)

3шт.

81

A13795

SENDER UNIT

SENDING UNIT - converter oil temperature gauge

1шт.
