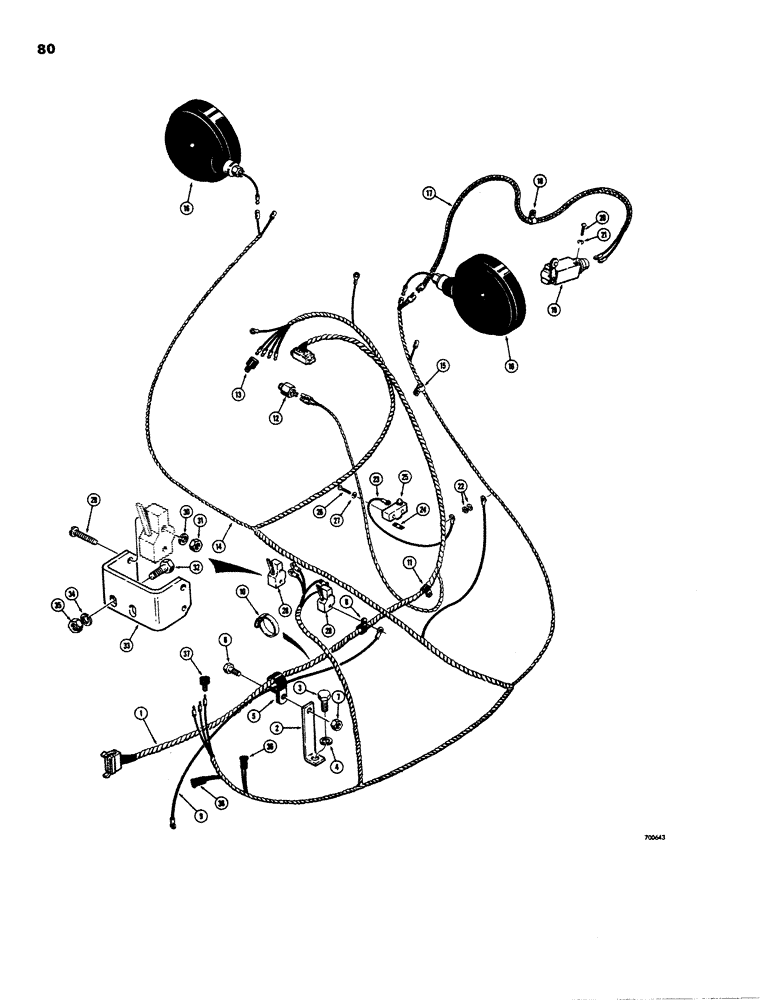

Запчасти Case W26B (080) - ELECTRICAL SYSTEM (FRONT HARNESS) (04) - ELECTRICAL SYSTEMS

1

L40300

HARNESS

- wiring, intermediate

1шт.

2

L40319

BRACKET - clamp mounting

1шт.

3

13-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd

1шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

L11553

MOUNTING CLIP

CLAMP -, Serial Range: harness-bracket

1шт.

6

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

7

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, lock (5/16" - 18 NC)

1шт.

8

49855

CLAMP

- harness to compartment bracket

1шт.

9

L43095

WIRE - ground intermediate to rear harness clamps

1шт.

10

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - harness tie

3шт.

11

49838

CLAMP

- harness to steering column and steering gear plate

2шт.

12

L47989

SWITCH

- stop light

1шт.

13

A8210

CONNECTOR, ELEC

CONNECTOR - front harness to instrument panel wiring

2шт.

14

L15277

HARNESS

- front, lights and hydraulic controls (Tractors with solenoid detented loader control valve)

1шт.

14

L52976

HARNESS

- front, lights and hydraulic controls (Tractors with magnetic detented loader control valve)

1шт.

15

49838

CLAMP

- front harness

6шт.

16

REF

INSTRUCTION

LIGHT - flood, front (See figure 92)

2шт.

17

L40305

ELECTRICAL WIRE

WIRE - front harness to bucket level control switch

1шт.

18

49838

CLAMP

- control switch wire

2шт.

19

L43856

SWITCH

ASSEMBLY - bucket level control (Parts list figure 432)

1шт.

19a

L33933

KIT

- switch repair (Consists of cover and gasket, lever, and module) Not shown

1шт.

20

169-95

SCREW - machine, fillister head (#10-32 NF x 3/8")

2шт.

21

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

22

L15052

WASHER - fiber shoulder

2шт.

23

L13294

WIRE - harness to lift control switch

1шт.

24

L13293

STRAP - switch ground

1шт.

25

A19513

SWITCH

- neutral start, lift control

1шт.

26

182-52

SCREW,Sl Pan Hd, #6 - 32 x 1 1/4"

- machine, pan head (#6 - 32 NC x 1-1/4")

2шт.

27

192-5

LOCK WASHER,#6

WASHER, LOCK, #6

2шт.

28

L11349

SWITCH

- lift and tilt control, at control vavle (Used with L15277 harness only)

2шт.

29

173-66

SCREW,Sl Rnd Hd, #6 - 32 x 1"

- machine, round head (#6 - 32 NC x 1") Used with L15277 harness only

4шт.

30

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Used with L15277 harness only Ext Tooth, #6

4шт.

31

129-15

NUT,#6-32

(Used with L15277 harness only) #6-32

4шт.

32

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

(Used with L15277 harness only) Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

33

L13133

BRACKET - micro switch mounting (Used with L15277 harness only)

1шт.

34

92-5

LOCK WASHER,5/16"

used with L15277 harness only 5/16"

2шт.

35

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC) Used with L15277 harness only

2шт.

36

L11760

DIODE

- switch protection (Used with L15277 harness only)

2шт.

37

A8210

CONNECTOR, ELEC

CONNECTOR - harness to switch solenoids (Used with L15277 harness only)

1шт.
