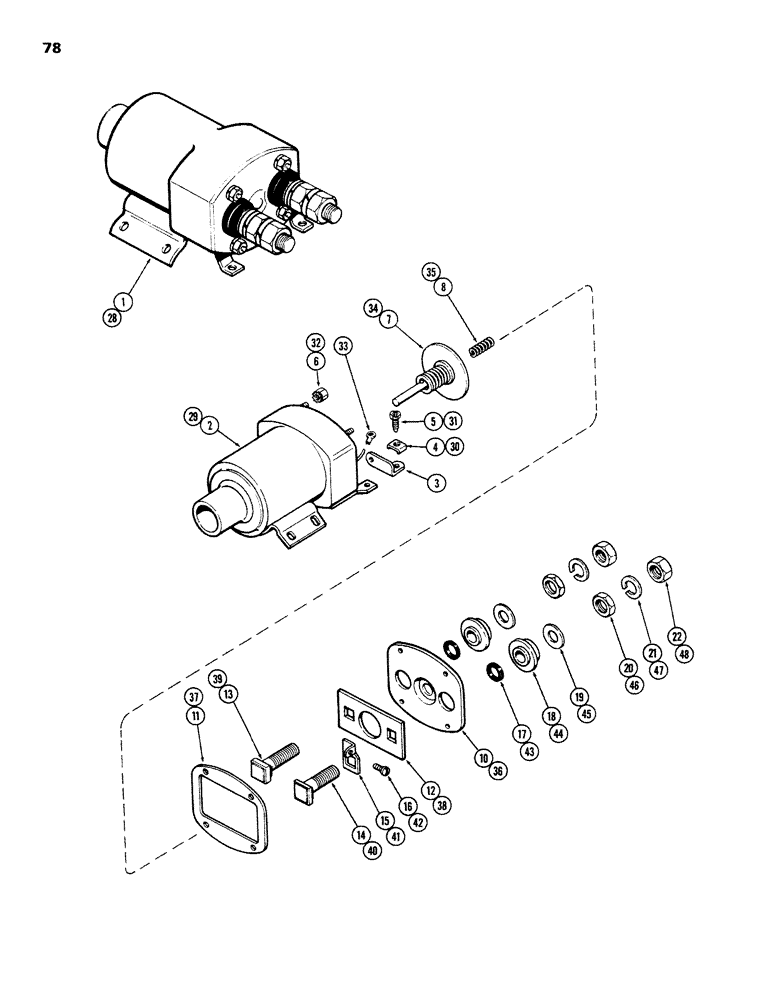

Запчасти Case W26B (078) - A15358 SOLENOID (504BDT) DIESEL ENGINE USED WITH R26137 STARTER (04) - ELECTRICAL SYSTEMS

1

A15358

SOLENOID

ASSY.- (Delco #1119832) (Order A42376) (See Ref. 28), Includes: Ref. 2 - 22

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY

1шт.

3

R15161

CONNECTOR, ELEC

CONNECTOR - ground

1шт.

4

R15182

CLIP

- terminal

1шт.

5

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip

1шт.

6

D32500

NUT

- plate to case stud (w/skpf. washer)

4шт.

7

D32498

CONTACT

DISC ASSY. - contact

1шт.

8

D32499

SPRING

- contact disc return

1шт.

D29577

PLATE ASSY. - Includes: Ref. 10 - 22

1шт.

10

D32504

COVER

PLATE - terminals & case cover

1шт.

11

A42260

GASKET

-, Serial Range: plate-case

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - plate

1шт.

13

D32505

STUD

- battery term. (1-1/2" thread length)

1шт.

14

D32506

STUD

- starter term. (1-3/16" thread length)

1шт.

15

D29910

SUPPORT

TERMINAL - coil lead

1шт.

16

175-92

SCREW - coil lead (#10-32 x 3/16" truss. hd.)

1шт.

17

D32510

BUSHING

- term. plate insulators

2шт.

18

D32508

INSULATOR

BUSHING - term. stud insulators

2шт.

19

D30006

WASHER

- term. studs (1/2 x 7/8 x 1/32" steel)

2шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs Jam, 1/2"-13, G5

2шт.

21

192-113

LOCK WASHER,1/2"

WASHER - term. studs ( lock) 1/2"

4шт.

22

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs 1/2"-13, G5

2шт.

28

A42376

SWITCH

SOLENOID ASSY. (Delco-Remy #1119848), A42376 used with D42964 starter, Includes: Ref. 29 - 48

1шт.

29

NSS

NOT SOLD SEPARAT

CASE ASSY., A42376 solenoid used with D42964 starter

1шт.

30

A42407

CLAMP

CLIP - terminal, A42376 solenoid used with D42964 starter

1шт.

31

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clamp, A42376 solenoid used with D42964 starter

1шт.

32

D32500

NUT

- plate to case studs (w/skpf. washer), A42376 solenoid used with D42964 starter

4шт.

33

A42408

ELECTRICAL WIRE

WIRE - ground, A42376 solenoid used with D42964 starter

1шт.

34

D32498

CONTACT

DISC ASSY. - contact, A42376 solenoid used with D42964 starter

1шт.

35

A42411

VALVE SPRING

SPRING - contact disc return, A42376 solenoid used with D42964 starter

1шт.

A42412

PLATE

ASSY., A42376 solenoid used with D42964 starter, Includes: Ref. 36 - 48

1шт.

36

A42410

PLATE

- terminals, A42376 solenoid used with D42964 starter

1шт.

37

A42260

GASKET

- term. plate, A42376 solenoid used with D42964 starter

1шт.

38

D32507

RUBBER INSULATOR

INSULATOR - terminal plate, A42376 solenoid used with D42964 starter

1шт.

39

A42413

STUD

- battery terminal (1-5/8" thread length), A42376 solenoid used with D42964 starter

1шт.

40

D32506

STUD

- starter terminal (1-3/16" thread length), A42376 solenoid used with D42964 starter

1шт.

41

A42406

SUPPORT

TERMINAL - coil lead, A42376 solenoid used with D42964 starter

1шт.

42

175-56

SCREW - coil lead, (#6-32 x 3/16" thruss hd.), A42376 solenoid used with D42964 starter Slotted Truss Hd, #6-32 x 3/16"

1шт.

43

D32510

BUSHING

- term. plate insulators, A42376 solenoid used with D42964 starter

2шт.

44

A43701

BUSHING

- term. studs insulators, A42376 solenoid used with D42964 starter

2шт.

45

D30004

WASHER

- insulating, term. stud (1/2 x 1-3/16 x 3/32"), A42376 solenoid used with D42964 starter

2шт.

46

129-145

JAM NUT,Jam, 1/2"-13, G5

Terminal studs, A42376 solenoid used with D42964 starter Jam, 1/2"-13, G5

2шт.

47

192-113

LOCK WASHER,1/2"

WASHER - lock, A42376 solenoid used with D42964 starter 1/2"

4шт.

48

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal studs, A42376 solenoid used with D42964 starter 1/2"-13, G5

2шт.
