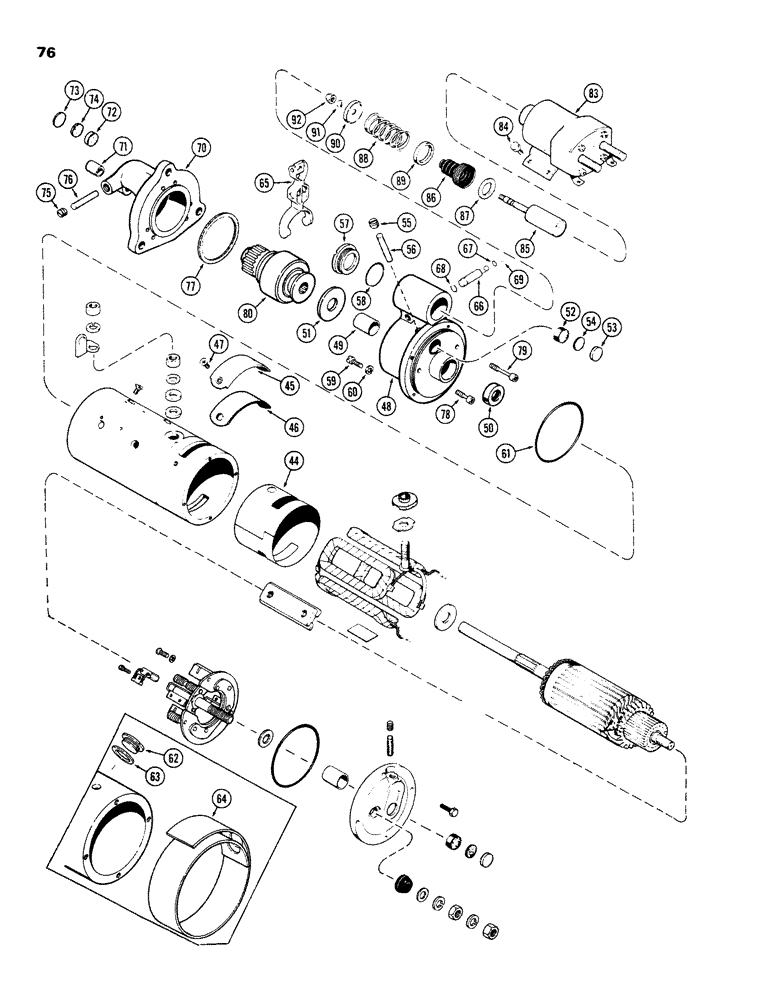

Запчасти Case W26B (076) - D42964 STARTER, (504BDT) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

D42964

X

STARTER ASSY. - (Continued from Figure 74), Includes: Ref. 44 - 92

1шт.

44

A41920

INSULATOR

- field coil (See ref. 64)

1шт.

45

A43366

PLATE

COVER - brush inspection (See ref. 62)

2шт.

46

A41849

GASKET

- inspection cover

2шт.

47

171-207

SCREW,Flat Hd, 1/4" x 1/2"

- inspection cover (1/4 x 1/2" N.C., flat hd.)

4шт.

48

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 49 - 56

1шт.

49

R21580

BUSHING

- lever housing (7/8 x 1 x 1-1/4")

1шт.

50

R21582

OIL SEAL

- oil (13/16 x 1-3/8 x 3/8")

1шт.

51

R15145

DISC

WASHER - brake, starter drive

1шт.

52

A41923

PLUG

- housing

1шт.

53

41-57

PLUG,Exp, 1 1/32"

- (1-1/32" expansion)

1шт.

54

A41923

PLUG

GASKET - plug

1шт.

55

221-1041

PLUG

- (1/8" P.T., sltd. hd.)

1шт.

56

R15023

WICK

- oil

1шт.

57

R21587

PLUG

- shift lever housing

1шт.

58

A41924

GASKET

- plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

61

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - shift lever housing (4-1/8 x 4-3/8 x 1/8")

1шт.

62

R21587

PLUG

- brush inspection hole

2шт.

63

A41924

GASKET

- inspection plug

2шт.

64

A44169

INSULATOR

INSULATION - field coil

1шт.

65

D32547

LEVER

ASSY. - shifter

1шт.

66

A42199

PIN

STUD - shifter lever (Replaces R21564)

1шт.

67

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - stud (1/4 x 3/8 x 1/16")

1шт.

68

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - stud (3/8 x 1/2 x 1/16")

1шт.

69

G46146

SNAP RING,#37, Ext

Ring, Snap, , stud & plunger ret. (replaces A40422) #37, Ext

2шт.

70

A40283

HOUSING

ASSY. - drive end, Includes: Ref. 71 - 76

1шт.

71

A40893

BUSHING

- starter drive end (5/8 x 3/4 x 25/32")

1шт.

72

A41923

PLUG

- reservoir, felt

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- (1-1/32" expansion)

1шт.

74

A41973

GASKET

- plug

1шт.

75

221-1041

PLUG

- wick (1/8" P.T., sltd. hd.)

1шт.

76

R15023

WICK

- oil, drive housing

1шт.

77

R21562

GASKET

- drive end housing

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing (5/16 x 7/8" N.C. sckt. hd.)

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive housing (5/16 x 1-1/2" N.C. sckt. hd.)

5шт.

80

A42397

DRIVE

ASSY. - starter (Replaces R21589)

1шт.

83

A42376

SWITCH

SOLENOID ASSY. - (Repairs Figure 78)

1шт.

84

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

- solenoid mounting

4шт.

85

A42309

PLUNGER

- solenoid switch

1шт.

86

A42308

BOOT

- plunger

1шт.

87

A41922

WASHER

- boot seat

1шт.

88

A41242

SPRING

- plunger

1шт.

89

R21572

RETAINER

- plunger spring (inner)

1шт.

90

R21571

RETAINER

- plunger spring (outer)

1шт.

91

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring ret. (replaces A40472) #37, Ext

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - stop (5/16" N.F. hex.)

1шт.
