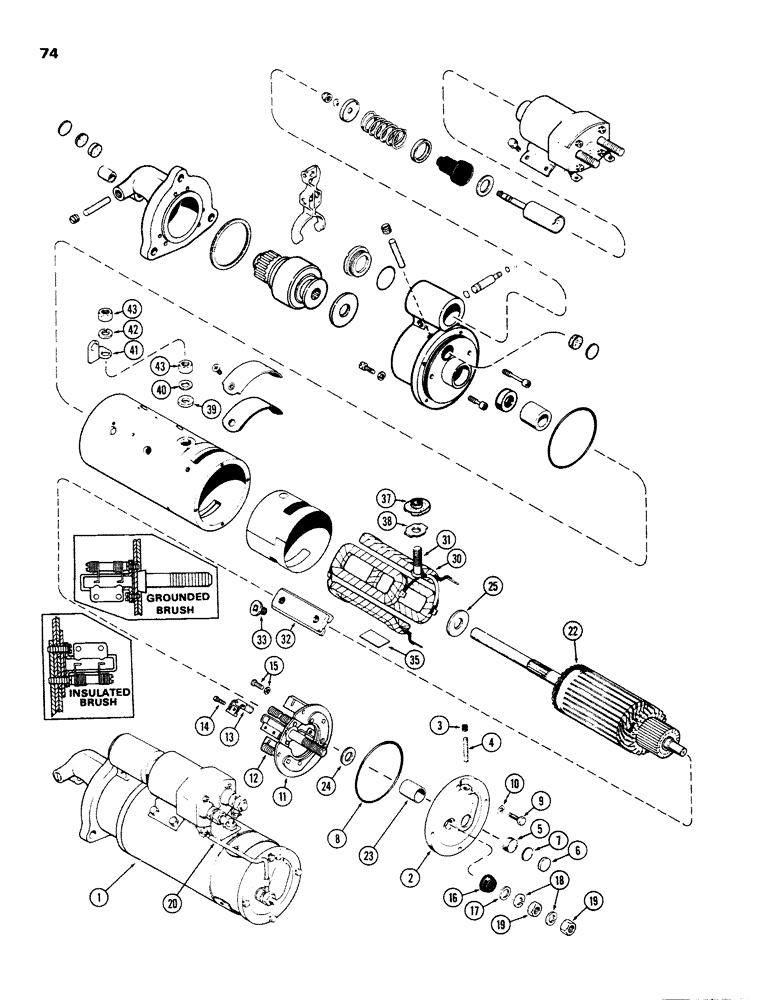

Запчасти Case W26B (074) - D42964 STARTER, (504BDT) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

D42964

X

STARTER ASSY. - (Delco-Remy #1113949) (Order R26137) (See Figure 70), Includes: Ref. 2 - 43

1шт.

2

A42314

GASKET

FRAME ASSY. - commutator end, Includes: Ref. 3 - 7

1шт.

3

221-1041

PLUG

- oil wick hole (1/8" P.T., sltd. hd.)

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- oil reservoir, felt

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" expansion)

1шт.

7

A41973

GASKET

- expansion plug

1шт.

8

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

"O" RING - commutator end frame (4-1/8 x 4-3/8 x 1/8")

1шт.

9

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end Hex, 1/4"-28 x 1", G5

4шт.

10

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

11

A42373

PLATE

ASSY. - starter bursh (less bushes)

1шт.

12

A25393

SPRING

- starter brush

8шт.

13

A41456

BRUSH, COMMUTATOR

BRUSHES - starter

8шт.

14

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush lead (#8-32 x 5/16" rd. hd.)

8шт.

15

A43847

SCREW,3/8" - 32 x 1/2"

- brush plate (#8-32 x 1/2" rd. hd.)

3шт.

16

A41918

INSULATOR

- terminal stud

1шт.

17

D30006

WASHER

- terminal stud (1/2 x 7/8 x 1/32")

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

19

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal stud 1/2"-13, G5

2шт.

20

A41978

ELECTRICAL WIRE

WIRE -, Serial Range: brush-field

1шт.

22

A41458

ARMATURE

ARAMATURE - starter

1шт.

23

A25336

BUSHING

- commutator end

1шт.

24

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- spacer, comm. end

1шт.

25

A40892

WASHER

- spacer, drive housing

1шт.

30

A41590

COIL

ASSY. - field, Includes: Ref. 31

1шт.

31

A40896

STUD

- field terminal

1шт.

32

R15115

SHOE

- pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes (3/8 x 5/8" N.F. flat hd.)

8шт.

35

A41977

RUBBER INSULATOR

INSULATION - wire junction

2шт.

A41925

BUSHING

ASSY. - inner, terminal insulating, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud (inner)

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

39

D30005

INSULATOR

WASHER - outer, terminal insulating

1шт.

40

D30006

WASHER

- terminal stud (1/2 x 7/8 x 1/32")

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR - coil, Serial Range: stud-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.
