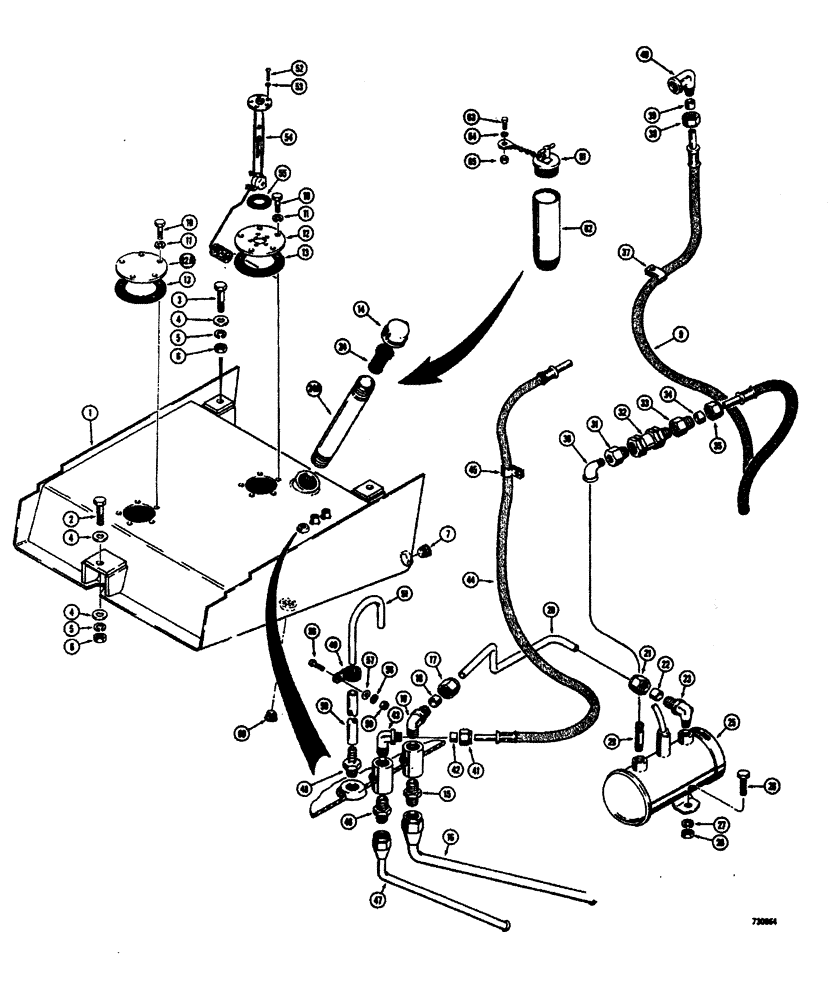

Запчасти Case W26B (278) - FUEL TANK AND RELATED PARTS, W26B LATE PRODUCTION AND ALL W26LF MODELS (03) - FUEL SYSTEM

1

L50433

TANK ASSEMBLY - fuel (W26LF models only) Without fuel strainer and with vent tube (When stock is exhausted, order L52780 tank for service)

1шт.

1

L52780

TANK

ASSEMBLY - fuel (Used with fuel strainer and vent tube) When stock is exhausted, order L53448 tank for service

1шт.

1

L53448

TANK

ASSEMBLY - fuel (Used with fuel strainer; does not have vent tube) When stock is exhausted, order L54448 tank, L54449 access plate, L13195 gasket, (5) 13 - 416 bolts and (5) 92 - 4 washers for service

1шт.

1

L54448

TANK

ASSEMBLY - fuel (Used with two access covers, a fuel strainer but no vent tube)

1шт.

2

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Rear tank mounting) Hex, 3/4"-10 x 3", G5

1шт.

3

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(Front tank mounting) Hex, 3/4"-10 x 3 1/4", G5

2шт.

4

95-12

WASHER,3/4"

- plain () 3/4"

4шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

6

25-1012

NUT,3/4"-10, G5

3шт.

7

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex. head (I" NPT)

2шт.

9

L47879

HOSE

- pump to filter 22" long (558 mm)

1шт.

10

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5-1шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5-1шт.

12

L13193

LARGE PLATE

PLATE - tank access (Front)

1шт.

12a

L54449

PLATE

- tank access (Rear) If used

1шт.

13

L13195

GASKET

- access plate

1-2шт.

14

L47929

CAP

- fuel tank, threaded iron (When stock is exhausted, order L53399 cap for service) Ref. no. 61

1шт.

15

222-814

FITTING,3/4"-14, 45 Degree Fl x 1/4" NPT

CONNECTOR - straight, male

1шт.

16

L13404

TUBE,16.8, 12.8" L

- suction, fuel (Inside tank)

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 17 - 19

1шт.

17

222-114

NUT,5/8"-24

NUT - elbow

1шт.

18

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

20

L50432

TUBE,0.375" OD

- suction, fuel (Tank to fuel pump)

1шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 21 - 23

1шт.

21

222-114

NUT,5/8"-24

NUT - elbow

1шт.

22

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

24

L52650

STRAINER ELEMENT

STRAINER - fuel, Used on all except W26LF models featuring L50433 fuel tank

1шт.

24a

L50465

PIPE

-j filler extension (When stock is exhausted, order L53397 pipe and L53399 stopper type cap for service, Ref. numbers 61 and 62

1шт.

24a

L50465

PIPE

- filler extension

1шт.

25

REF

INSTRUCTION

PUMP - fuel (Parts list figure 282)

1шт.

26

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

25-104

NUT,1/4"-20, G5

2шт.

29

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe (1/8" NPT)

1шт.

30

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

31

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing (1/8" NPT x 1/4" NPT)

1шт.

32

L17627

VALVE

CHECK VALVE - fuel (If used)

1шт.

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

CONNECTOR ASSEMBLY - female, tube, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

34

222-104

SLEEVE,3/8" Tube

- connector

1шт.

35

222-114

NUT,5/8"-24

NUT - connector

1шт.

37

49845

CLAMP

- hose

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 38 - 40

1шт.

38

222-114

NUT,5/8"-24

NUT - elbow

1шт.

39

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 41 - 43

2шт.

41

87017024

TUBE NUT,1/2"-24

NUT - elbow

1шт.

42

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

43

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

44

L40206

HOSE

- return, fuel, Serial Range: line-tank

1шт.

45

49845

CLAMP

- hose

1шт.

46

222-807

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/4" NPT

CONNECTOR - straight, male

1шт.

47

L13199

TUBE - fuel return (Inside tank) 12.8, 8.5" L

1шт.

48

217-125

FITTING,3/8" Hose Barb x 1/4" Male NPTF

CONNECTOR ASSEMBLY - tube, barbed (If used)

1шт.

49

49774

CLAMP

- tube (If used)

1шт.

50

L43085

TUBE,0.5" OD x 19" L

- vent, straight (19" long) If used

1шт.

51

L40835

TUBE,0.375" OD x 3.6, 1" L

- tank vent (If used)

1шт.

52

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine, round head (#10 -24 NC x 3/4")

5шт.

53

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

54

L13302

TRANSMITTER

SENDING UNIT - fuel tank

1шт.

55

A11822

GASKET

- fuel sending unit

1шт.

56

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Used on models with vent tube Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

57

95-6

WASHER,3/8"

- standard wrot () If used 3/8"

1шт.

58

92-6

LOCK WASHER,3/8"

if used 3/8"

1шт.

59

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC) If used

1шт.

60

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex. socket head (1/2" NPT) If used

2шт.

61

L74929

FILLER CAP

CAP, FILLER - fuel tank (Rubber stopper type with "T" handle)

1шт.

62

L53397

PIPE

- filler extension (Use with L53399 stopper type cap for service only)

1шт.

63

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

64

92-6

LOCK WASHER,3/8"

1шт.

65

25-106

NUT,3/8"-16, G5

- hex (3/8" - 16 NC)

1шт.
