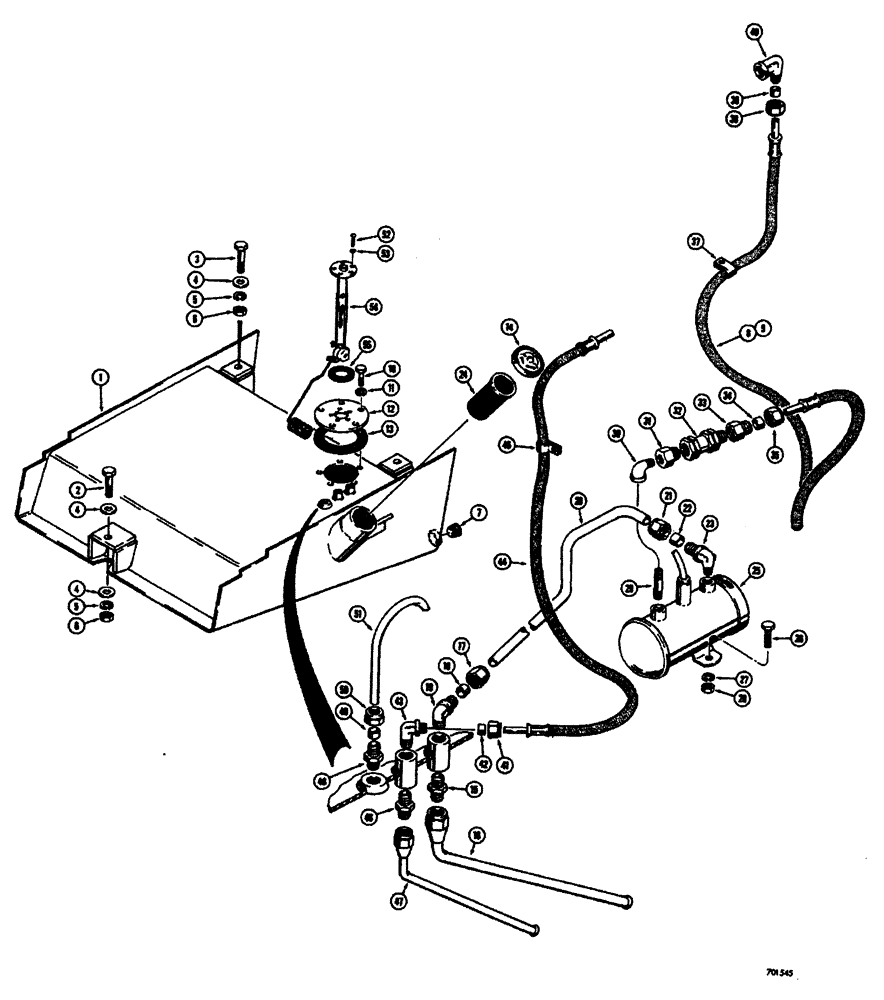

Запчасти Case W26B (274) - FUEL TANK AND RELATED PARTS EARLY PRODUCTION (03) - FUEL SYSTEM

1

L52780

TANK

ASSEMBLY - fuel

1шт.

2

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Rear tank mounting) Hex, 3/4"-10 x 3", G5

1шт.

3

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(Front tank mounting) Hex, 3/4"-10 x 3 1/4", G5

2шт.

4

95-12

WASHER,3/4"

- plain () 3/4"

4шт.

5

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

6

25-1012

NUT,3/4"-10, G5

3шт.

7

221-846

PLUG,Hex Soc, 1"-11 1/2

- pipe, hex. head (1" NPT)

2шт.

8

L40164

HOSE ASSY.

HOSE - pump to filter, 46" long (1168 mm), Serial Range: -9104198

1шт.

9

L47879

HOSE

- pump to filter, 22" long (558 mm), Start Serial: 9104198

1шт.

10

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

5шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

12

L13193

LARGE PLATE

PLATE - tank access

1шт.

13

L13195

GASKET

- access plate

1шт.

14

L42863

CYLINDER END CAP

CAP - filler, fuel tank

1шт.

15

222-814

FITTING,3/4"-14, 45 Degree Fl x 1/4" NPT

CONNECTOR - straight, male

1шт.

16

L13404

TUBE,16.8, 12.8" L

- suction, fuel (Inside tank)

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 17 - 19

1шт.

17

222-114

NUT,5/8"-24

NUT - elbow

1шт.

18

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

20

L40263

TUBE,0.375" OD

- suction, fuel (Tank to fuel pump)

1шт.

222-46

ELBOW,90 Degree, 5/8"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 21 - 23

1шт.

21

222-114

NUT,5/8"-24

NUT - elbow

1шт.

22

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

24

L46438

SPARE PART

STRAINER - fuel

1шт.

25

REF

INSTRUCTION

PUMP - fuel (Parts list figure 282)

1шт.

26

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

27

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

25-104

NUT,1/4"-20, G5

2шт.

29

221-106

PIPE,Nipple, 1/8" NPT x 1 1/2"

NIPPLE - pipe (1/8" NPT)

1шт.

30

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street 90º, 1/8"-27, NPT

1шт.

31

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

BUSHING - reducing (1/8" NPT x 1/4" NPT)

1шт.

32

L17627

VALVE

CHECK VALVE - fuel (If used)

1шт.

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

CONNECTOR ASSEMBLY - female, tube, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

34

222-104

SLEEVE,3/8" Tube

- connector

1шт.

35

222-114

NUT,5/8"-24

NUT - connector

1шт.

37

49845

CLAMP

- hose (Used with L40164 hose only)

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 38 - 40

1шт.

38

222-114

NUT,5/8"-24

NUT - elbow

1шт.

39

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degrees, Includes: Ref. 41 - 43

2шт.

41

87017024

TUBE NUT,1/2"-24

NUT - elbow

1шт.

42

222-102

SLEEVE,1/4" Tube

Elbow 1/4" Tube

1шт.

43

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

44

L40206

HOSE

- return, fuel, Serial Range: line-tank

1шт.

45

49845

CLAMP

- hose

1шт.

46

222-807

HYD CONNECTOR,1/2"-20, 45 Degree Fl x 1/4" NPT

CONNECTOR - straight, male

1шт.

47

L13199

TUBE - fuel return (Inside tank) 12.8, 8.5" L

1шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

CONNECTOR ASSEMBLY - tube, straight, Includes: Ref. 48 - 50

1шт.

48

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

49

222-102

SLEEVE,1/4" Tube

Connector 1/4" Tube

1шт.

50

87017024

TUBE NUT,1/2"-24

NUT - connector

1шт.

51

L13759

TUBE - tank vent 0.25" OD x 5.62" L

1шт.

52

173-204

SCREW,Sl Rnd Hd, #10 - 24 x 3/4"

- machine, round head (#10 -24 NC x 3/4")

5шт.

53

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

54

L13302

TRANSMITTER

SENDING UNIT - fuel tank

1шт.

55

A11822

GASKET

- fuel sending unit

1шт.
