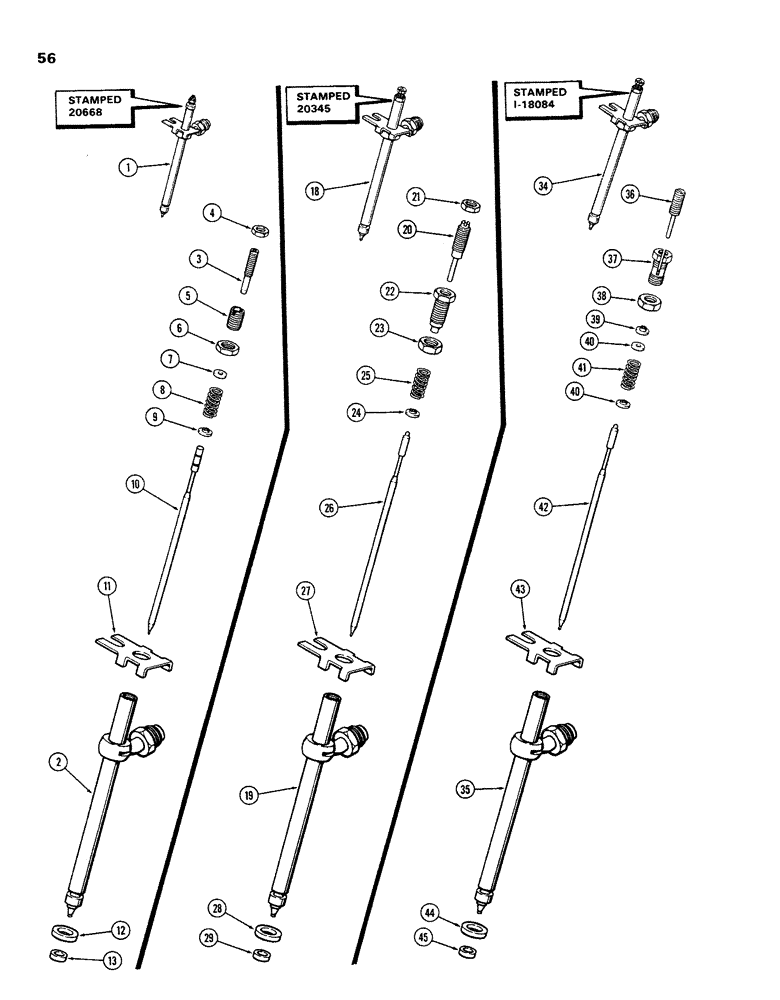

Запчасти Case W26B (056) - A138322 INJECTIOR NOZZLES, (504BDT) DIESEL ENGINE (03) - FUEL SYSTEM

1

A138322

NOZZLE CAP

NOZZLE ASSY. - injector (stamped 20668 on body) (red color code), Includes: Ref. 2 - 13

6шт.

Whenever nozzle is removed from head A41402 seal & A41403 washer must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

W26B

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A45291

SHIM

SEAT - pressure spring, upper

1шт.

8

A45290

SPRING

- (11/16" free length w/green color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

WASHRE - nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

18

A62809

NOZZLE CAP

NOZZLE ASSY. - injector (3200 P.S.I.) (stamped 20345 on body) (red color code), A62809, Includes: Ref. 19 - 29

6шт.

Whenever nozzle is removed from head A41402 seal & A41403 washer must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

W26B REMAN FOR NEW P/N A62809

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

19

NSS

NOT SOLD SEPARAT

BODY - nozzle, A62809 injection

1шт.

20

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, A62809 injection nozzles

1шт.

21

A43602

NUT

- lock, lift adjusting screw, A62809 injection nozzles

1шт.

22

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, A62809 injection nozzles

1шт.

23

A42424

LOCK NUT

- lock, pressure adjusting screw, A62809 injection nozzles

1шт.

24

A41401

SEAT

- spring, lower, A62809 injection nozzles

1шт.

25

A43601

SPRING

- (1/2" free length w/brown stripe), A62809 injection nozzles

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A62809 injection

1шт.

27

A41768

PLATE

- nozzle locating, A62809 injection

1шт.

28

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A62809 injection

1шт.

29

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A62809 injection nozzles

1шт.

34

A58694

NOZZLE

ASSY. - injector (2800 P.S.I.) (stamped I-18084 on body) (no color code), A58694, Includes: Ref. 35 - 45

6шт.

Whenever nozzle is removed from head A41402 seal & A41403 washer must be replaced before nozzle is installed back in head.

1шт.

A138322R

REMAN-INJECT NOZZLE

W26B REMAN FOR NEW P/N A58694

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

35

NSS

NOT SOLD SEPARAT

BODY - nozzle, A58694 injection

1шт.

36

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, A58694 injection nozzles

1шт.

37

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, A58694 injection nozzles

1шт.

38

A42424

LOCK NUT

- lock, adjusting screw, A58694 injection nozzles

1шт.

39

A41407

WASHER

- lift adj. screw seat, A58694 injection nozzles

1шт.

40

A41401

SEAT

- pressure spring, A58694 injection nozzles

2шт.

41

A41444

VALVE SPRING

SPRING - pressure (1/2" free length w/out color code), A58694 injection nozzles

1шт.

42

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A58694 injection

1шт.

43

A41768

PLATE

- nozzle locating, A58694 injection

1шт.

44

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A58694 injection

1шт.

45

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A58694 injection nozzles

1шт.
