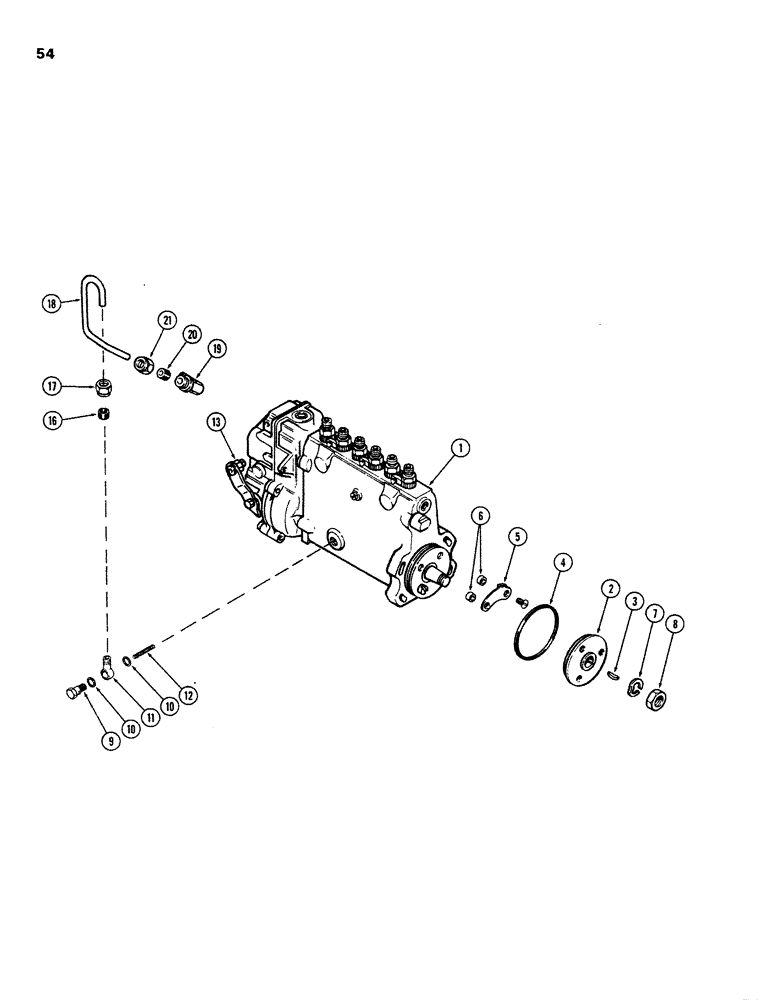

Запчасти Case W26B (054) - A58538 INJECTION PUMP (504BDT) DIESEL ENGINE WITH LUBE TUBE ON ENG. SIDE OF PUMP (03) - FUEL SYSTEM

1

A58538

PUMP

ASSY. - fuel inj. (Order A62336), Includes: Ref. 2 - 13

1шт.

2

A41857

HUB

- pump drive gear

1шт.

3

A41850

KEY

-, Serial Range: hub-shaft

1шт.

4

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - sealing (2-15/16 x 3-3/16 x 1/8")

1шт.

5

A41858

INDICATOR

POINTER - pump adjustment

1шт.

6

A41859

BUSHING

SPACER - timing pointer

2шт.

7

A41851

LOCK WASHER

- lock, hub nut

1шт.

8

A41852

LOCK NUT

- hub

1шт.

9

A25192

BANJO BOLT

BOLT - banjo fitting

1шт.

10

A22381

WASHER

- copper, banjo fitting

2шт.

11

A25191

FITTING

- banjo, lube tube

1шт.

12

A25190

SPRING

- tube fitting

1шт.

13

A44259

SCREW

- stop control (Replaces A42829)

1шт.

16

222-102

SLEEVE,1/4" Tube

(at pump fitting) 1/4" Tube

1шт.

17

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube) (at pump fitting)

1шт.

18

A58717

TUBE

- inj. pump lube

1шт.

19

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - lube line, Includes: Ref. 20 and 21

1шт.

20

222-102

SLEEVE,1/4" Tube

1шт.

21

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.
