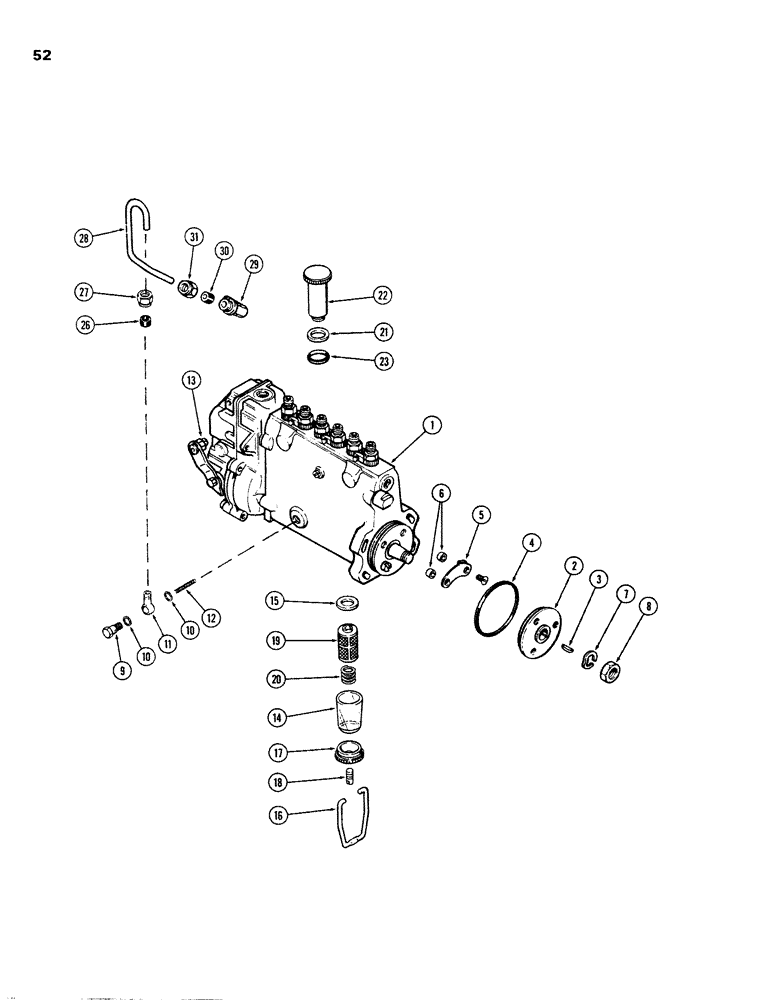

Запчасти Case W26B (052) - A62336 INJECTION PUMP (504BDT) DIESEL ENGINE WITH LUBE TUBE ON ENG. SIDE OF PUMP WITH HAND PRIMER (03) - FUEL SYSTEM

1

A62336

PUMP, FUEL INJECTION

PUMP ASSY. - fuel injection (Rpl. A62335 & A58538), Includes: Ref. 2 - 23

1шт.

2

A41853

HUB

- pump drive gear

1шт.

3

A20933

KEY

-, Serial Range: hub-shaft

1шт.

4

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - sealing (2-15/16 x 3-3/16 x 1/8")

1шт.

5

A41854

INDICATOR

POINTER - pump adjustment

1шт.

6

A41855

BUSHING

SPACER - timing pointer

2шт.

7

A42312

LOCK WASHER

- lock, hub nut

1шт.

8

A42313

NUT

- hub

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- cooper, tube fitting

2шт.

11

A25191

FITTING

- banjo, lube oil tube

1шт.

12

A25191

FITTING

SPRING - lube oil fitting

1шт.

13

A44259

SCREW

- stop cable (Replaces A42829)

1шт.

14

A43347

BOWL

- filter, (glass)

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

- bail

1шт.

18

A43349

STUD

- bail nut

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element

1шт.

21

A43351

SEAL

GASKET - copper

2шт.

22

A43343

CARTRIDGE

PRIMER ASSY. - hand pump, Includes: Ref. 23

1шт.

23

A45342

GASKET

- hand (Replaces A44761)

1шт.

26

222-102

SLEEVE,1/4" Tube

(at pump fitting) 1/4" Tube

1шт.

27

87017024

TUBE NUT,1/2"-24

NUT - (1/4" tube) (at pump fitting)

1шт.

28

A58717

TUBE

- inj. pump lube

1шт.

29

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - lube line, Includes: Ref. 30 and 31

1шт.

30

222-102

SLEEVE,1/4" Tube

1шт.

31

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.
