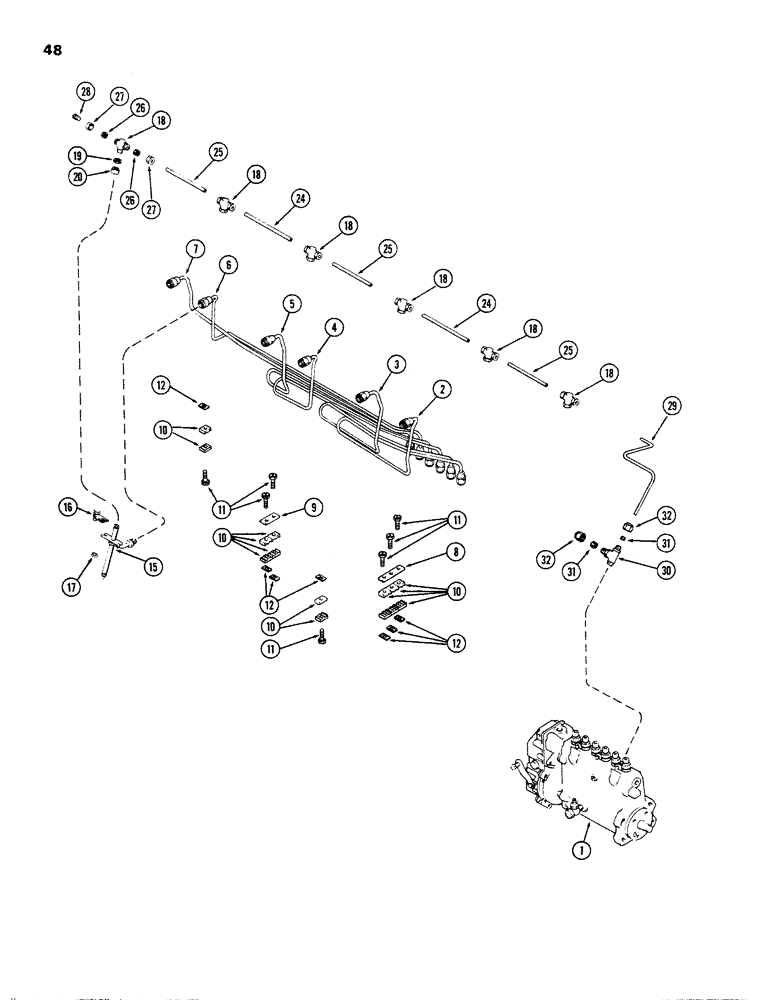

Запчасти Case W26B (048) - FUEL INJECTION SYSTEM, (504BDT) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 50-54)

1шт.

2

A58702

TUBE

- fuel injection, #1 cylinder

1шт.

3

A58703

TUBE

- fuel injection, #2 cylinder

1шт.

4

A58704

TUBE

- fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

- fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

- fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

- fuel injection, #6 cylinder

1шт.

8

A58708

PLATE

- tube bracket (6 tubes)

1шт.

9

A58710

PLATE

- tube bracket (4 tubes)

1шт.

10

A58709

BRACKET

- injection tube

14шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- (#10 x 1" N.C. sltd. hex. hd.)

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed (#10 Tinnerman)

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - fuel injector (See figure 56)

6шт.

16

A58695

CLAMP

ASSY. -, Serial Range: nozzle-head

6шт.

17

A58696

SPACER

- nozzle clamp

6шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

CAP - nozzle leak-off

6шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: cap-nozzle

6шт.

20

A58961

NUT

-, Serial Range: cap-nozzle

6шт.

24

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

25

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

26

222-102

SLEEVE,1/4" Tube

12шт.

27

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

12шт.

28

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - rear leak-off cap

1шт.

29

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-pump

1шт.

30

A59097

VALVE

ASSY. - check (in inj. pump), Includes: Ref. 31 and 32

1шт.

31

222-102

SLEEVE,1/4" Tube

2шт.

32

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

2шт.
