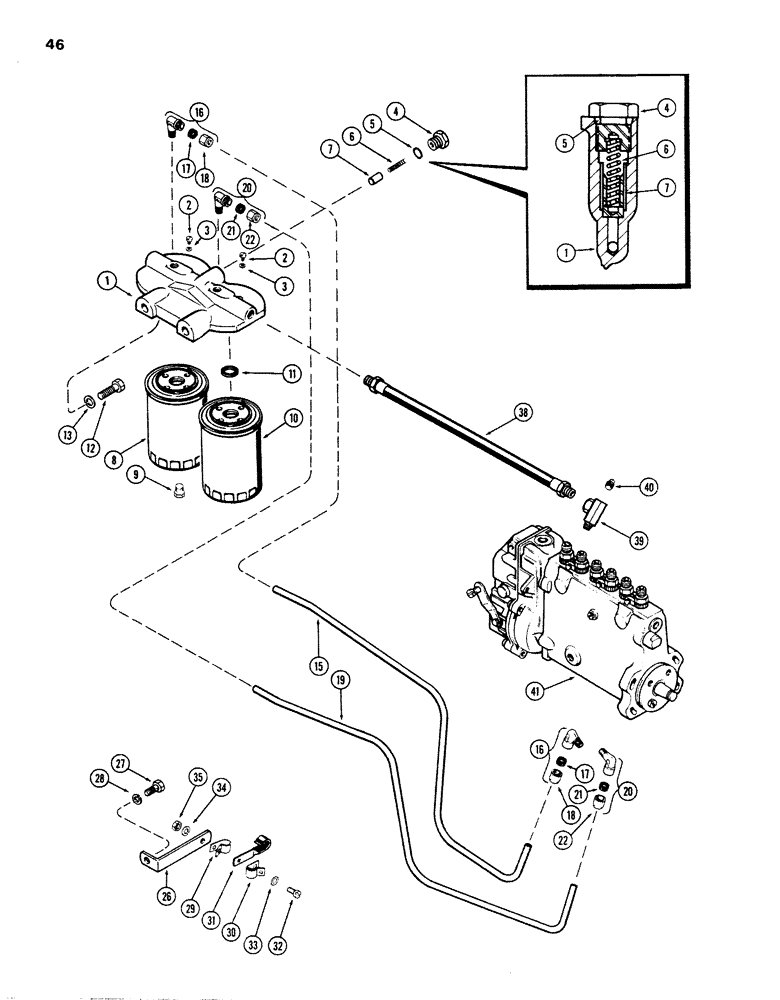

Запчасти Case W26B (046) - FUEL FILTER SYSTEM, (504BDT) DIESEL ENGINE, USED PRIOR TO SER. NO. 2323001 (03) - FUEL SYSTEM

A58719

FILTER

ASSY. - fuel (1st & 2nd stage), Includes: Ref. 1 - 11

1шт.

1

A58711

FILTER

HEAD - filter mounting

1шт.

2

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

3

A66619

WASHER

- bleed screw (Replaces A20662)

2шт.

4

A24916

PLUG

- relief valve

1шт.

5

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - plug (1/2 x 11/16 x 3/32")

1шт.

6

A24918

SPRING

- relief valve

1шт.

7

A24917

PLUNGER

- releif valve

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT, Includes: Ref. 8 - 11

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - 1st stage (Order A41745), Includes: Ref. 9

1шт.

9

221-1661

PLUG

- 1/8" P.T. hex. hd.

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - 2nd stage (Order A41745), Includes: Ref. 11

1шт.

11

A42315

GASKET

-, Serial Range: element-head

1шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

15

A58714

TUBE

- 1st stage to pump (3/8" O.D. tube)

1шт.

16

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSY. - 3/8" tube x 1/4" P.T., Includes: Ref. 17 and 18

2шт.

17

222-104

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

18

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

19

A58715

TUBE

- pump to 2nd stage (5/16" O.D. tube)

1шт.

20

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube x 1/4" P.T., Includes: Ref. 21 and 22

2шт.

21

222-103

SLEEVE,5/16" Tube

1шт.

22

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

26

A58718

BRACKET

- filter, Serial Range: tubes-block

1шт.

27

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

28

92-6

LOCK WASHER,3/8"

1шт.

29

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

CLIP - 5/16" tube to bracket

1шт.

30

A62209

CLAMP,5/16", Insul, 1/4" Bolt

CLIP - 3/8" tube to bracket

1шт.

31

A59112

CLIP - hose, Serial Range: pump-filter

1шт.

32

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

33

193-8

LOCK WASHER,Ext Tooth, 1/4"

WASHER, LOCK, Ext Tooth, 1/4"

1шт.

34

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

35

25-104

NUT,1/4"-20, G5

1шт.

38

A58716

HOSE

- filter to pump (17" long)

1шт.

39

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

40

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.

41

REF

INSTRUCTION

PUMP ASSY. - fuel inj. (See Figures 50-54)

1шт.
