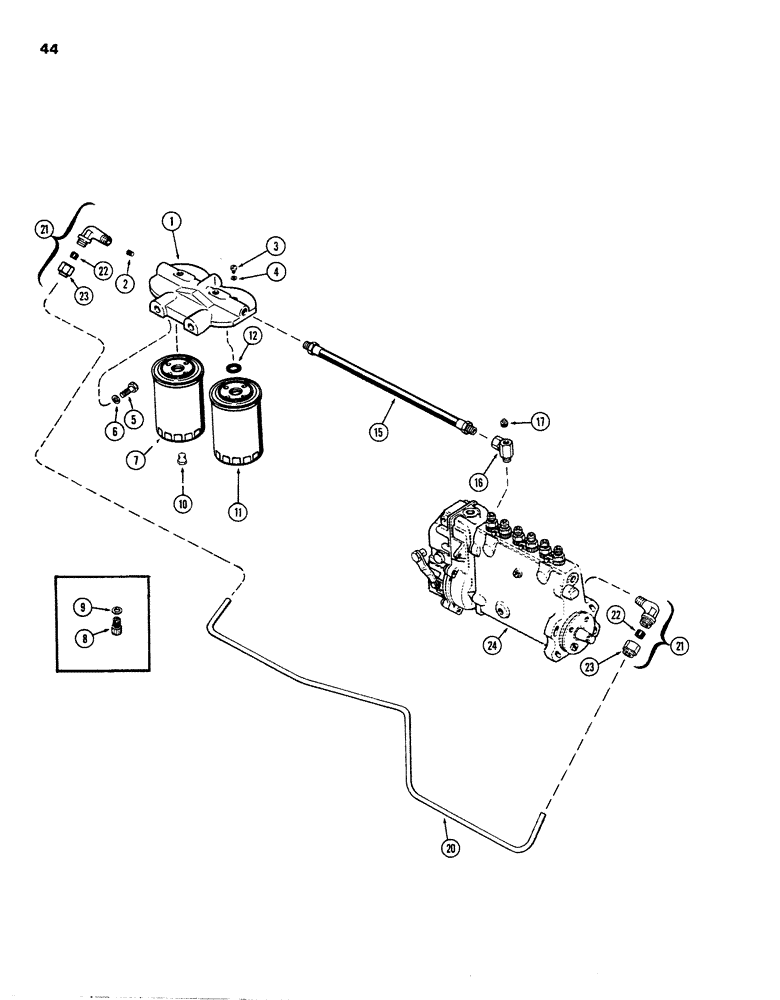

Запчасти Case W26B (044) - FUEL FILTER SYSTEM, (504BDT) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - filter mounting 1, Includes: Ref. 2

1шт.

2

221-1041

PLUG

- (1/8" P.T. sltd. hd.)

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed, filter head

2шт.

4

A66619

WASHER

- bleed screw (Replaces A20662)

2шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

CASA41745

FUEL FILTER

ELEMENT KIT, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT KIT - 1st stage filter, Includes: Ref. 8 - 10

1шт.

8

G49080

PLUG

- drain (3/8" N.F., 12 pt. hd, plastic)

1шт.

9

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - (3/8 x 9/16 x 3/32") (used w/G49080 plug)

1шт.

10

221-1661

PLUG

- drain (1/8" P.T. hex. hd. metal)

1шт.

11

NSS

NOT SOLD SEPARAT

ELEMENT - 2nd stage filter, Includes: Ref. 12

1шт.

12

A42315

GASKET

-, Serial Range: element-head

1шт.

15

A58716

HOSE

- filter to pump (17" long)

1шт.

16

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

17

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T. sq. hd.)

1шт.

20

A62342

TUBE

- transfer, Serial Range: pump-filter

1шт.

21

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 5/16" tube x 1/4" P.T., Includes: Ref. 22 and 23

2шт.

22

222-103

SLEEVE,5/16" Tube

1шт.

23

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

24

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See Figures 50-54)

1шт.
