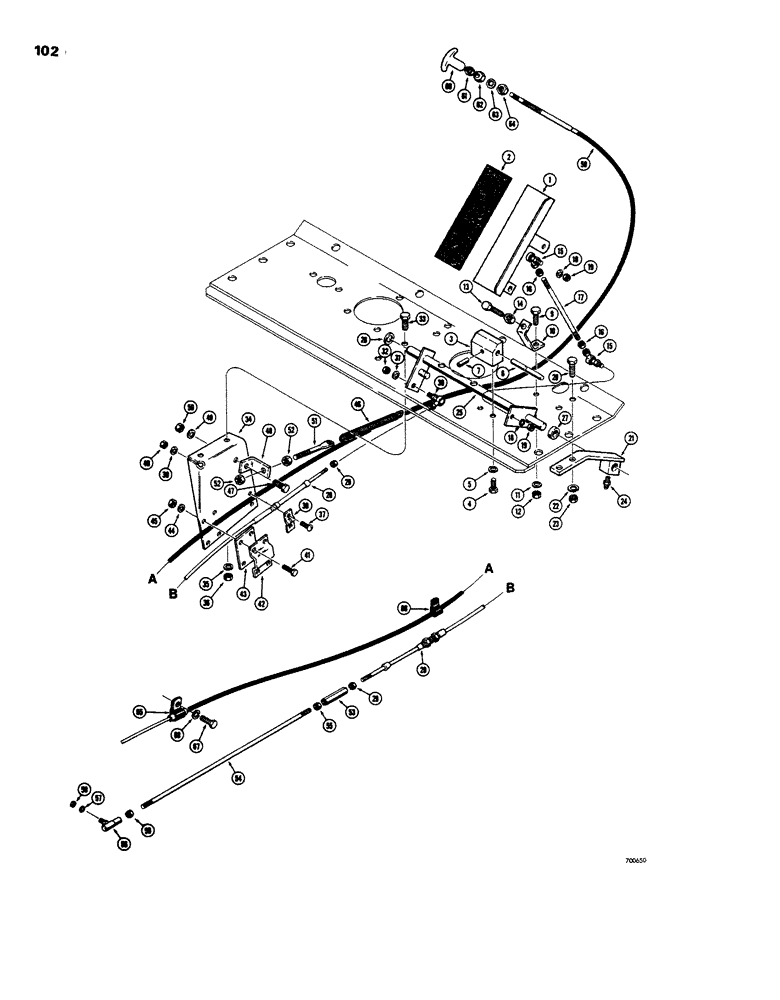

Запчасти Case W26B (102) - ACCELERATOR AND LINKAGE (02) - ENGINE

1

L12422

PEDAL

- accelerator, foot feed

1шт.

2

L12421

PAD

- accelerator pedal

1шт.

3

L12426

BLOCK - accelerator pivot

1шт.

4

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

2шт.

6

L12427

PIN

- pedal pivot

1шт.

7

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, (Pivot pin retaining) 3/16" x 5/8", Slotted

1шт.

8

REF

INSTRUCTION

PLATE - floor (See page 311 related parts)

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

10

L12428

BRACKET - stop, accelerator pedal

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2" (Pedal stop)

1шт.

14

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

1шт.

15

A55593

END

ROD END - pivotal, foot pedal to cross shaft

2шт.

16

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

2шт.

17

L12430

ROD

- accelerator pedal to cross shaft

1шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

25-114

NUT,1/4"-28, G5

- hex. (1/4" - 28 NF)

2шт.

20

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

21

L43022

BRACKET - cross shaft mounting

2шт.

22

92-5

LOCK WASHER,5/16"

4шт.

23

9635082

NUT,5/16" - 18, Gr 5

- 5/16" - 18 NC)

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

25

L43025

SHAFT - cross, accelerator

1шт.

26

195-41

WASHER,5/8"

Spacer, cross shaft 5/8"

1шт.

27

L43029

SPACER

- accelerator cross shaft

1шт.

L40216

CABLE

ASSEMBLY - accelerator control, Includes: Ref. 28 and 29

1шт.

28

NSS

NOT SOLD SEPARAT

CABLE - accelerator control

1шт.

29

129-660

NUT,#10-32, Brass

2шт.

30

L12437

BALL JOINT,#10 - 32 x 7/8"

- cross, Serial Range: shaft-cable

1шт.

31

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

32

129-27

NUT,Hex, #10 - 32

- hex. (#10 - 32 NF)

1шт.

33

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

34

L12440

BRACKET - mounting, control cable

1шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

37

169-99

SCREW,Sl Fil Hd, #10 - 24 x 5/8"

- machine, round head (#10 - 24 NC x 5/8")

2шт.

38

L12441

CLAMP

- accelerator cable

1шт.

39

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

40

129-7

NUT,Hex, #10 - 24

- hex. (#10 - 24 NC)

2шт.

41

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

42

L12442

CLAMP - control cable

1шт.

43

L12443

SPACER - control cable clamp

1шт.

44

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

45

25-104

NUT,1/4"-20, G5

4шт.

46

L18988

VALVE SPRING

SPRING - accelerator return

1шт.

47

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

48

L40184

BRACKET

- mounting, return spring

1шт.

49

92-5

LOCK WASHER,5/16"

1шт.

50

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

51

A31190

BOLT

BOLT - eye, spring mounting

1шт.

52

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex, jam (5/16" - 18 NC)

2шт.

53

L14227

CONNECTOR, ELEC

COUPLING - accelerator, Serial Range: cable-link

1шт.

54

L14228

ROD

LINK - cable to injection pump

1шт.

55

129-315

NUT,#10-32, LH

1шт.

56

L12437

BALL JOINT,#10 - 32 x 7/8"

-, Serial Range: link-pump

1шт.

57

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

58

129-37

NUT,#10-32

2шт.

L44335

CABLE

ASSEMBLY - fuel shut off, Includes: Ref. 59 - 64

1шт.

59

NSS

NOT SOLD SEPARAT

CABLE - fuel shut off

1шт.

60

L32679

HANDLE

- shut off cable

1шт.

61

129-141

JAM NUT,Jam, 1/4"-20, G5

1шт.

62

L32866

SEAL

AND NUT - cable

1шт.

63

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

64

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam (3/8" - 24 NF)

1шт.

65

49839

CLAMP

- control, Serial Range: cable-engine

1шт.

66

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- control cable to engine

1шт.

67

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

68

92-6

LOCK WASHER,3/8"

2шт.

69

95-6

WASHER,3/8"

- standard wrot () (Clamp mounting ) Not shown 3/8"

2шт.
