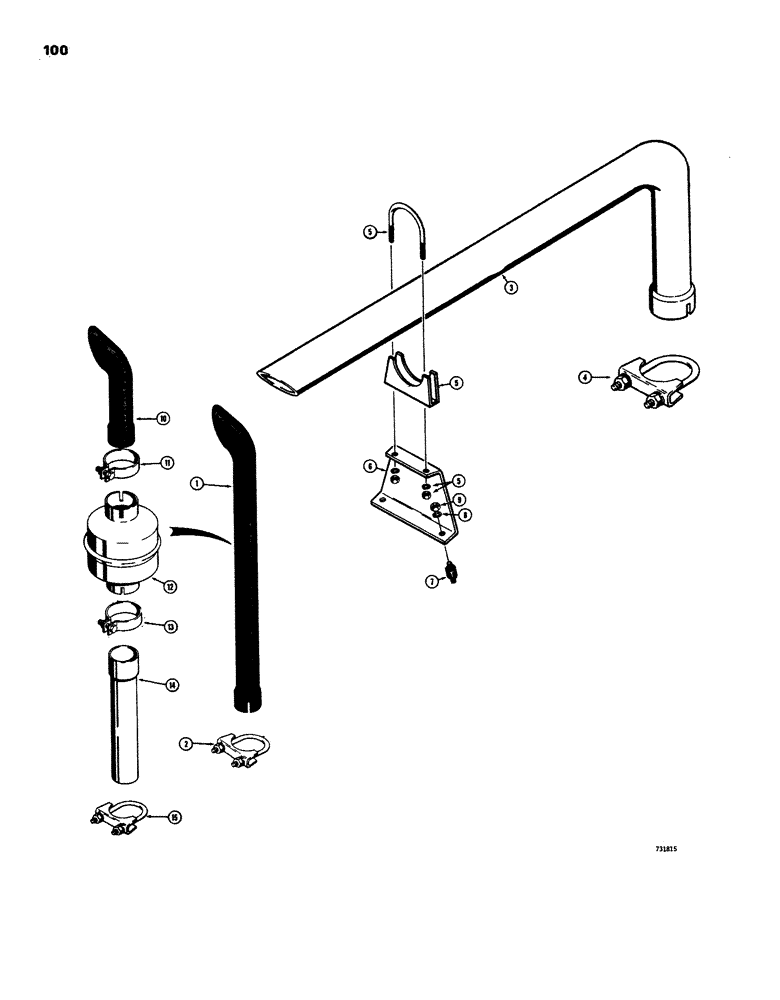

Запчасти Case W26B (100) - EXHAUST SYSTEM, STANDARD EXHAUST (02) - ENGINE

1

L40267

PIPE CLAMP

PIPE - exhaust

1шт.

2

A17851

CLAMP

- exhaust, Serial Range: pipe-manifold

1шт.

3

L55196

PIPE CLAMP

PIPE - exhaust, standard (noise reduction)

1шт.

4

A17851

CLAMP

- exhaust pipe to manifold, standard (noise reduction)

1шт.

5

L12413

CLAMP

- exhaust pipe to mounting bracket, standard (noise reduction)

1шт.

6

L55195

BRACKET - exhaust pipe mounting, standard (noise reduction)

1шт.

7

L11236

BOLT

BOLT - special, flex, standard exhaust (noise reduction)

2шт.

8

92-5

LOCK WASHER,5/16"

standard exhaust (noise reduction) 5/16"

2шт.

9

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), standard exhaust (noise reduction)

2шт.

10

L44330

EXHAUST SYSTEM PIPE

PIPE - extension, exhaust, spark arresting muffler

1шт.

L24650

MUFFLER

ASSEMBLY - spark arresting, Includes: Ref. 11 and 12

1шт.

11

L25751

CLAMP

- muffler, spark arresting

1шт.

12

NSS

NOT SOLD SEPARAT

MUFFLER - spark arresting

1шт.

13

L25751

CLAMP

- muffler, spark arresting

1шт.

14

L44329

PIPE, EXHAUST SYSTEM

ADAPTER - manifold to spark arresting muffler

1шт.

15

A17851

CLAMP

- adaptor to manifold, spark arresting muffler

1шт.
